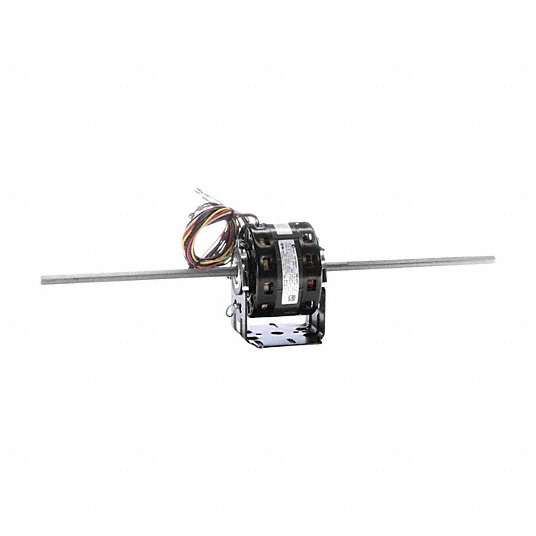

Regal Rexnord 642A Century OEM Replacement Motor 1/4 HP 277 V 3 Speed Replacement 642

Product Description

The Regal Rexnord 642A Century OEM replacement motor is a reliable option for those needing a 1/4 HP, single-phase motor that operates at 277 V. This motor provides three speeds and features an open air over enclosure, making it suitable for various applications.

• OEM direct replacement motor.
• Five-inch diameter, 42 frame.
• Permanent split capacitor with a supplied capacitor of 5 Mfd at 370 Volts.

Product Highlights

This replacement motor is thermally protected, ensuring safe operation in various environments. With a resilient base for easy mounting and a double shaft with flat and 55-inch leads, it is designed to operate efficiently in continuous air over duty applications.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/4 HP

Technical Specifications

• Voltage: 277 V
• Speed: 1475/1285/975 RPM
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.15, 0.87, 0.65 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Clockwise Lead End
• Mounting: Resilient Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 4.08 inches
• Shaft Diameter: 0.500 inches
• Output KW: 0.19 kW
• Overall Length: 20.00 inches
