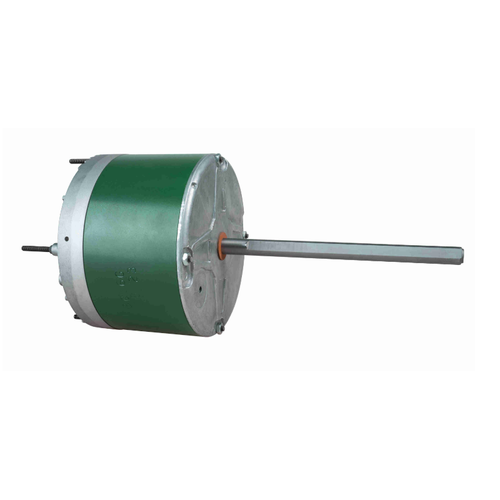

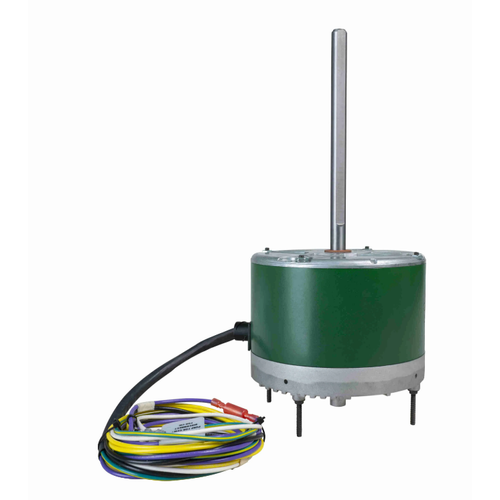

Regal Rexnord 6303S Genteq Evergreen OM 1/3 Hp (Size) Replacement MPN

Product Description

The Regal Rexnord Genteq Evergreen OM 6303S is an electronically commutated motor (ECM) made for outdoor condenser fan use. This motor replaces 208-230 VAC, 48-frame PSC motors. Key features include two operational speeds and reversible rotation.

• Replaces 208-230 VAC, 48-frame shaft down PSC motors.
• Supports two speeds: eight hundred twenty-five and one thousand seventy-five RPM.
• Reversible rotation option included.

Product Highlights

This ECM motor enhances energy efficiency while delivering reliable performance for various cooling applications.

Product Information

Standard Information

• Manufacturer Part Number: 6303S
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/3 Hp
• Output Power: 0.25 kW
• Input Voltage: 208-230 V
• Frequency: 60 Hz
• Phase: 1
• Number of Speeds: 2
• Speed: 825/1075 rpm
• Frame Size: 48
• Enclosure: Totally Enclosed Air Over
• Insulation Class: B
• Operating Temperature: 40 °C
• Current: 2.8 A
• Service Factor: 1
• Rotation: Counterclockwise/Clockwise
• Motor Type: Electronically Commutated Motor
• Mounting Type: Extended Studs
• Shaft Diameter: 0.500 in
• Shaft Length: 6.50 in
• Shaft Type: Flat
• Drive End Bearing Type: Ball
• Opposite Drive End Bearing Type: Ball
• Frame Material: Rolled Steel
• Overall Length: 10.98 in
• Frame Length: 2.82 in
• Poles: 12
