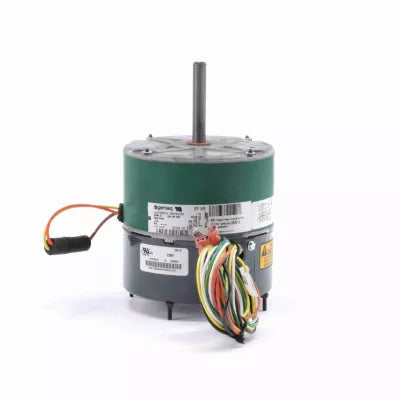

Regal Rexnord 6301e Condenser Fan Motor 1/5 Hp 208-230V

Product Description

The REGAL REXNORD 6301e is a direct-drive condenser fan motor engineered for outdoor HVAC applications under the Evergreen OM product line. Rated at 1/5 HP and designed to operate on 208-230 volt single-phase power, this motor runs at dual speeds of 1100 and 850 RPM and supports both clockwise and counterclockwise rotation. The Evergreen OM platform is built for reliable performance in the demanding thermal and moisture conditions typical of outdoor condenser units. Licensed HVAC technicians install this motor as a replacement in residential and light commercial cooling systems where the original condenser fan motor has failed or degraded.

This motor is suited for direct-drive fan propeller applications in outdoor condensing unit installations. The dual-speed and reversible-rotation capability make it adaptable across a range of condenser fan configurations. It is commonly installed during seasonal maintenance, compressor-side motor replacements, or full condenser fan assembly rebuilds on residential split systems and packaged units operating on standard 208-230 volt circuits.

Key Features

• 1/5 HP output rating for direct-drive condenser fan propeller use
• 208-230 volt operating range compatible with standard residential and light commercial power supplies
• Dual-speed operation at 1100 and 850 RPM for flexible fan performance
• Reversible CW/CCW rotation simplifies fitment across multiple condenser configurations
• Evergreen OM platform designed for outdoor duty in variable ambient conditions

Compatibility

The 6301e is offered as an Evergreen OM replacement motor cross-referenced to OEM part number 5SME39DLHE616. Designed as an OEM-style replacement for direct-drive condenser fan motor applications in 208-230 volt residential and light commercial HVAC systems.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor. Verify shaft diameter, rotation direction, and mounting configuration match the replacement unit prior to installation. Follow all applicable local codes and manufacturer wiring diagrams when reconnecting motor leads.

Technical Specifications

• Horsepower: 1/5 HP
• Voltage: 208-230 volts
• Speed: 1100/850 RPM
• Rotation: CW/CCW (reversible)
• Application: Direct-drive condenser fan propeller
• Product Line: Evergreen OM

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 6301e
