Regal Rexnord 6010e Evergreen Im Ecm Blower Motor 1HP

Product Description

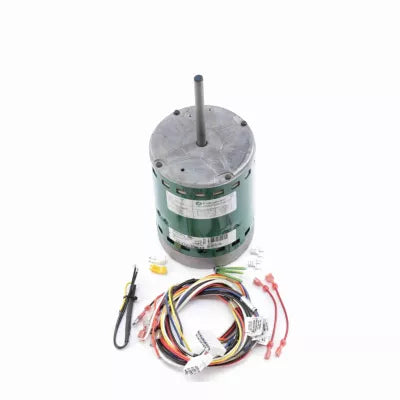

The REGAL REXNORD 6010e Evergreen IM is a multi-speed, constant-torque, brushless DC ECM motor engineered to replace factory PSC direct-drive blower motors in HVAC systems. Rated at 1 HP with a speed range of 1/2 to 1 HP, it operates at 1075 RPM and accepts dual voltage input of 115/230 volts single phase, 50/60 Hz. Drawing 11.0 amps at 115 volts or 6.7 amps at 230 volts, it fits NEMA 48-frame applications via a belly band mount. Licensed HVAC technicians install this motor as a drop-in upgrade where improved efficiency and quieter operation are the service objective.

The 6010e targets residential and light commercial indoor furnaces, air handlers, and package systems originally designed around a 6-pole, 1075 RPM PSC motor. It is not approved for use in twinned systems, belt-drive systems, or as a replacement for existing ECM variable-speed or X13 motors. The motor is also compatible with the Century Comfort Select FB platform. Four discrete speeds are available via 24 VAC control, plus an automatic continuous fan speed mode, making it compatible with existing fan relays and circuit boards without additional relay hardware.

Key Features

• ECM brushless DC technology delivers efficiency up to 80 percent, outperforming standard PSC motors
• Automatically determines rotation direction using Genteq Rotation Sensing Technology, eliminating manual jumper configuration
• Four discrete speeds via 24 VAC plus automatic continuous fan speed for compatibility with existing controls
• 42-inch wiring harness ready for connection to existing fan relays or control boards — no additional components required
• Soft start and off-ramp reduce noise and mechanical stress at startup and shutdown
• 6 kV surge protection and fully encapsulated electronics for long-term reliability
• UL and CSA recognized component; two-year warranty

Compatibility

Designed to replace direct-drive PSC blower motors in residential and light commercial furnaces, air handlers, and package systems built around a 6-pole 1075 RPM PSC motor, including the Century Comfort Select FB. Not intended to replace existing ECM variable-speed or X13 motors, and not suitable for twinned or belt-drive systems.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the air handler or furnace before removing the existing blower motor. The belly band mount accommodates NEMA 48-frame (5.6-inch diameter) housings; verify frame size and shaft length of 5 inches before installation. Confirm low-voltage control wiring at 24 VAC is intact and that the existing circuit board supports discrete speed inputs before connecting the harness.

Technical Specifications

• Motor Type: Multi-speed constant torque brushless DC ECM
• Horsepower Rating: 1 HP (range: 1/2 to 1 HP)
• Speed: 1075 RPM
• Voltage: 115/230 volts, single phase, 50/60 Hz
• Amperage: 11.0 amps at 115 volts / 6.7 amps at 230 volts
• Rotation: CCW/CW (auto-sensing)
• Frame: NEMA 48 (5.6 inches diameter)
• Shaft: 5 inches long, 1/2 inch diameter
• Mount Type: Belly band
• Control Voltage: 24 VAC
• Discrete Speeds: 4 plus automatic continuous fan speed
• Surge Protection: 6 kV
• Efficiency: Up to 80 percent
• Harness Length: 42 inches
• Certifications: UL and CSA recognized component
• Warranty: Two years

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 6010e
