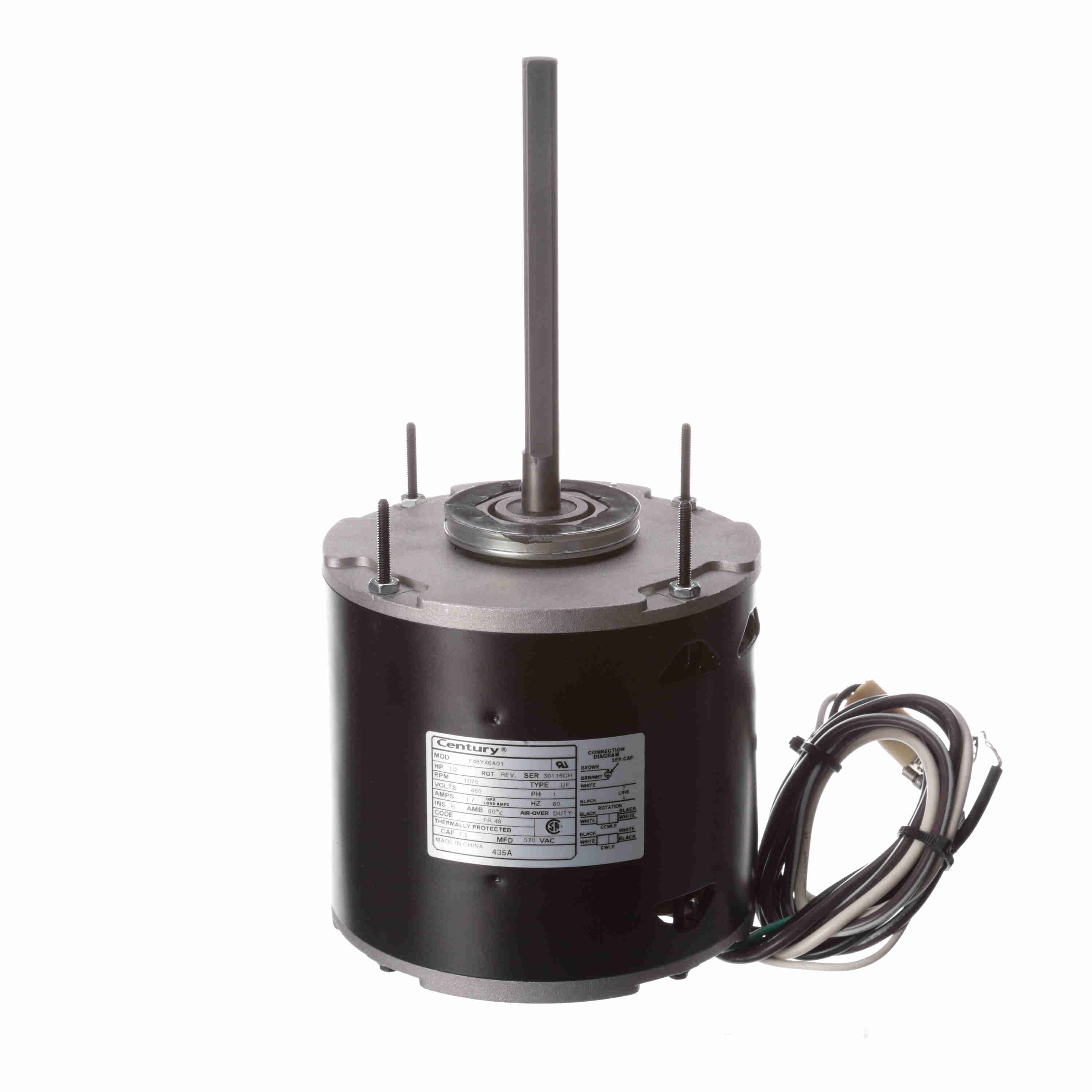

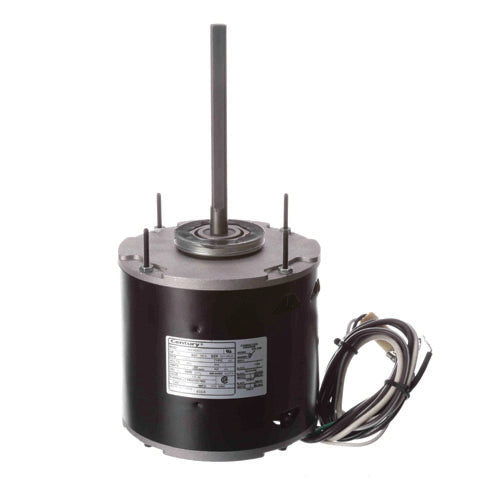

Regal Rexnord 435A Century OEM Replacement Motor, 1/2 HP, 460 V, 1075 RPM, 48 Frame

Product Description

The Regal Rexnord 435A Century OEM replacement motor is a 1/2 HP motor designed for dependable performance. Operating at 460 V, 60 Hz, and 1075 RPM, this motor is suitable for HVAC condenser units and air-moving applications. Its semi-enclosed air over design and ball bearing construction ensure smooth operation and long service life.

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)

Product Highlights

This motor features thermal protection, class B insulation, and extended studs for mounting, making it suitable for residential and light commercial condenser fan systems.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 435A
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1/2 Hp
• Output KW: 0.37 kW
• Voltage: 460 V
• Speed: 1075 rpm
• Service Factor: 1
• Frame: 48
• Enclosure: Semi Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 1.7 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Vertical Shaft Up
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 11.60 in
• Frame Length: 4.50 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.1 in
