Regal Rexnord 122249.00 Electric Motor 1.5 hp (145TC) C145T17FK76

Product Description

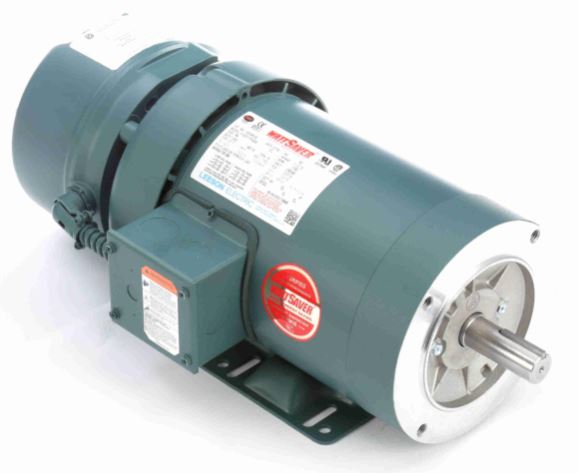

Regal Rexnord 122249.00 is a Leeson three-phase electric motor rated 1.5 hp (1.1 kW) and 1750 rpm. The motor supports dual voltage operation at 230/460 V, features a totally enclosed fan-cooled enclosure and NEMA 145TC frame, and is configured with a spring-set fail-safe brake for stop-and-hold applications. Typical uses include conveyors, packaging equipment, machine tools, hoists, elevators, and door operators.

• Three-phase motor, dual voltage 230/460 V, output 1.5 hp (1.1 kW) at 1750 rpm
• Spring-set fail-safe brake with power-off manual release; brake coil leads brought into motor conduit box
• NEMA 145TC frame, C-face with base mounting, totally enclosed fan-cooled enclosure (TEFC), IEC IP43

Product Highlights

1.5 hp three-phase brake motor, 1750 rpm, 230/460 V, TEFC enclosure, NEMA 145TC, C-face with base, spring-set fail-safe brake

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 122249.00

Technical Specifications

• Brand: Regal Rexnord (Leeson)
• MPN: 122249.00
• Manufacturer: Regal Rexnord Commercial
• Model/Spec Number: C145T17FK76
• Product Type: Electric motor (brake motor)
• Application: Conveyors, packaging equipment, machine tools, hoists, elevators, door operators
• Input Voltage: 230/460 V
• Phases: 3 phase
• Output Power: 1.5 hp (1.1 kW)
• Speed: 1750 rpm
• Frame Size: 145TC (NEMA)
• Mounting Type: C face with base (NEMA)
• Enclosure: TEFC (totally enclosed fan-cooled)
• Enclosure IEC Rating: IP43
• Brake Type: Spring-set fail-safe (positive stop-and-hold)
• Brake Features: Power-off manual release (resets automatically); brake coil leads brought into motor conduit box
• Output Shaft: 7/8" keyed
• Bearings: High-quality ball bearings
• Certifications: UL recognized component; CSA approval
• UPC: 691720098745
