Regal Rexnord 122195.00 Motor 1.5 HP 1750 RPM (145TC)

Product Description

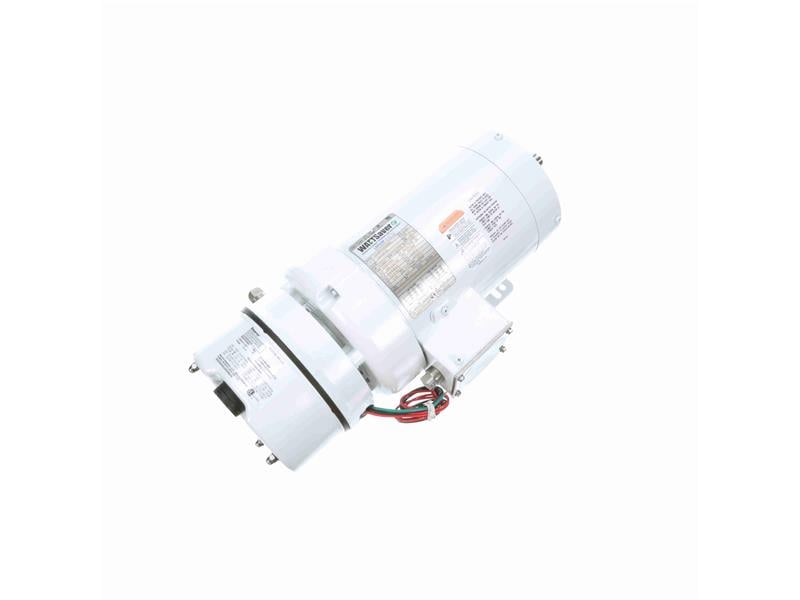

Regal Rexnord 122195.00 is a Leeson three-phase electric motor rated at 1.5 HP and 1750 RPM. It supports 208-230/460 V input at 60 Hz for continuous duty and features a 145TC frame with a TEFC enclosure and rigid C-face mount (C145T17WK55). The unit includes thermal protection with T-stats and a washdown spring-set brake suitable for wet or humid processing environments.

• 1.5 HP, 1750 RPM three-phase motor; input voltage 208-230/460 V, 60 Hz, continuous duty
• 145TC frame, TEFC enclosure, rigid C-face with base (C145T17WK55); weight 52.00 lbs
• Washdown spring-set brake with brake coils rated 230/460 VAC, thermal protection (T-stats), 7/8 in keyed shaft

Product Highlights

Three-phase 1.5 HP TEFC washdown brakemotor, 1750 RPM, 208-230/460 V, rigid C-face (145TC)

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 122195.00

Technical Specifications

• Brand: Regal Rexnord (Leeson)
• MPN: 122195.00
• Manufacturer: Regal Rexnord / Leeson Electric Co
• Category: Brake motor
• Horsepower: 1.5 HP
• Output Power: 1.1 kW
• Speed: 1750 RPM
• Frame: 145TC
• Mounting Type: Rigid C-face with base (C145T17WK55)
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• IP Rating: IP55
• Input Voltage: 208-230/460 V
• Phase: 3-Phase
• Frequency: 60 Hz
• Duty: Continuous
• Service Factor: 1.15
• Ambient Temperature Rating: 40 C
• Brake Type: Washdown spring-set brake
• Brake Voltage: 230/460 VAC
• Thermal Protection: T-stats
• Shaft Diameter: 7/8 in
• Shaft Key: Keyed output shaft
• Weight: 52.00 lbs
• Insulation: High-temperature moisture-resistant IRIS insulation
