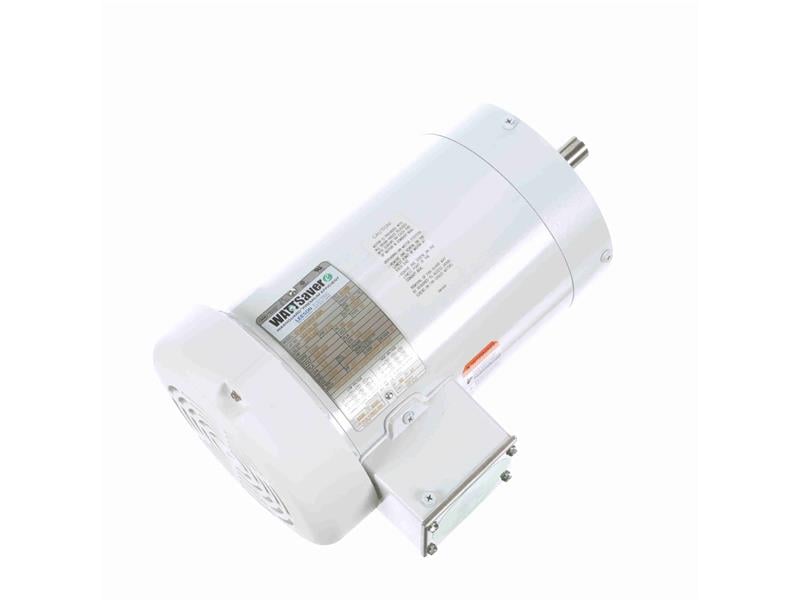

Regal Rexnord 122184.00 Leeson Washguard Standard Efficiency AC Induction Motor 3 HP (NEMA 145TC C-face)

Product Description

The Regal Rexnord 122184.00 is a Leeson Washguard standard efficiency AC induction motor rated at 3 HP for three-phase industrial applications. It is washdown and inverter rated, supports 208-230/460 VAC input, and operates at 3600 RPM. The motor features a totally enclosed fan cooled (TEFC) enclosure, NEMA 145TC frame with C-face mount, rolled steel construction; listed weight 57.00 lbs.

• Washdown rated and inverter rated for use with variable frequency drives; suitable for harsh environments
• Electrical: 3 HP, 3-phase, 208-230/460 VAC, 3600 RPM
• Mechanical: TEFC enclosure, NEMA 145TC frame, C-face mount, rolled steel construction; weight 57.00 lbs

Product Highlights

Washdown and inverter rated 3 HP TEFC motor with NEMA 145TC C-face mounting

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 122184.00

Technical Specifications

• Brand: Regal Rexnord (Leeson Electric Co)
• Manufacturer Part Number: 122184.00
• Product Type: AC induction motor
• Horsepower: 3 HP
• Phase: 3-phase
• Input Voltage: 208-230/460 VAC
• Speed (RPM): 3600 RPM
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame: NEMA 145TC
• Mounting: C-face mount
• Construction: Rolled steel
• Washdown Rated: Yes
• Inverter Rated: Yes
• Weight: 57.00 lbs
• Category: Motor
