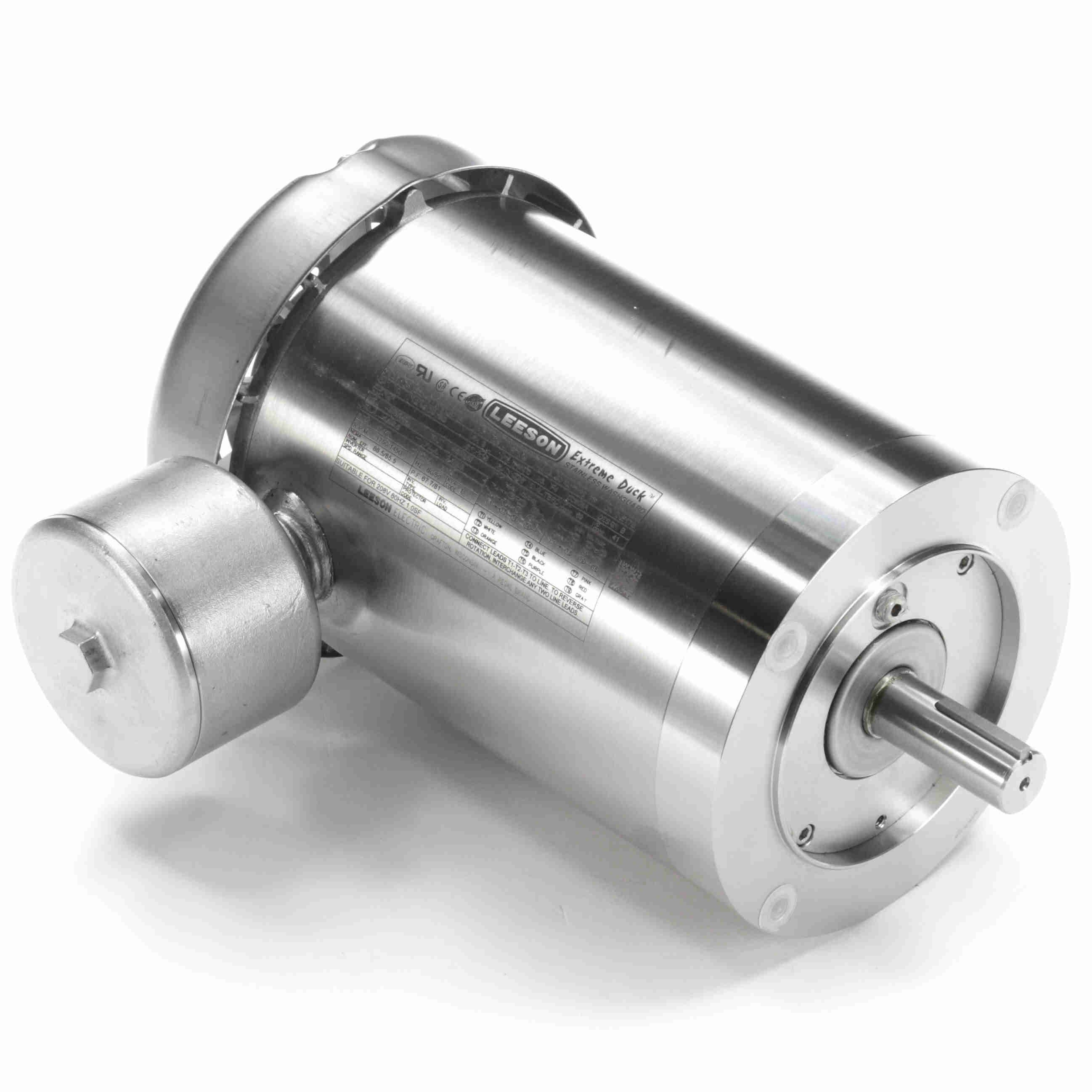

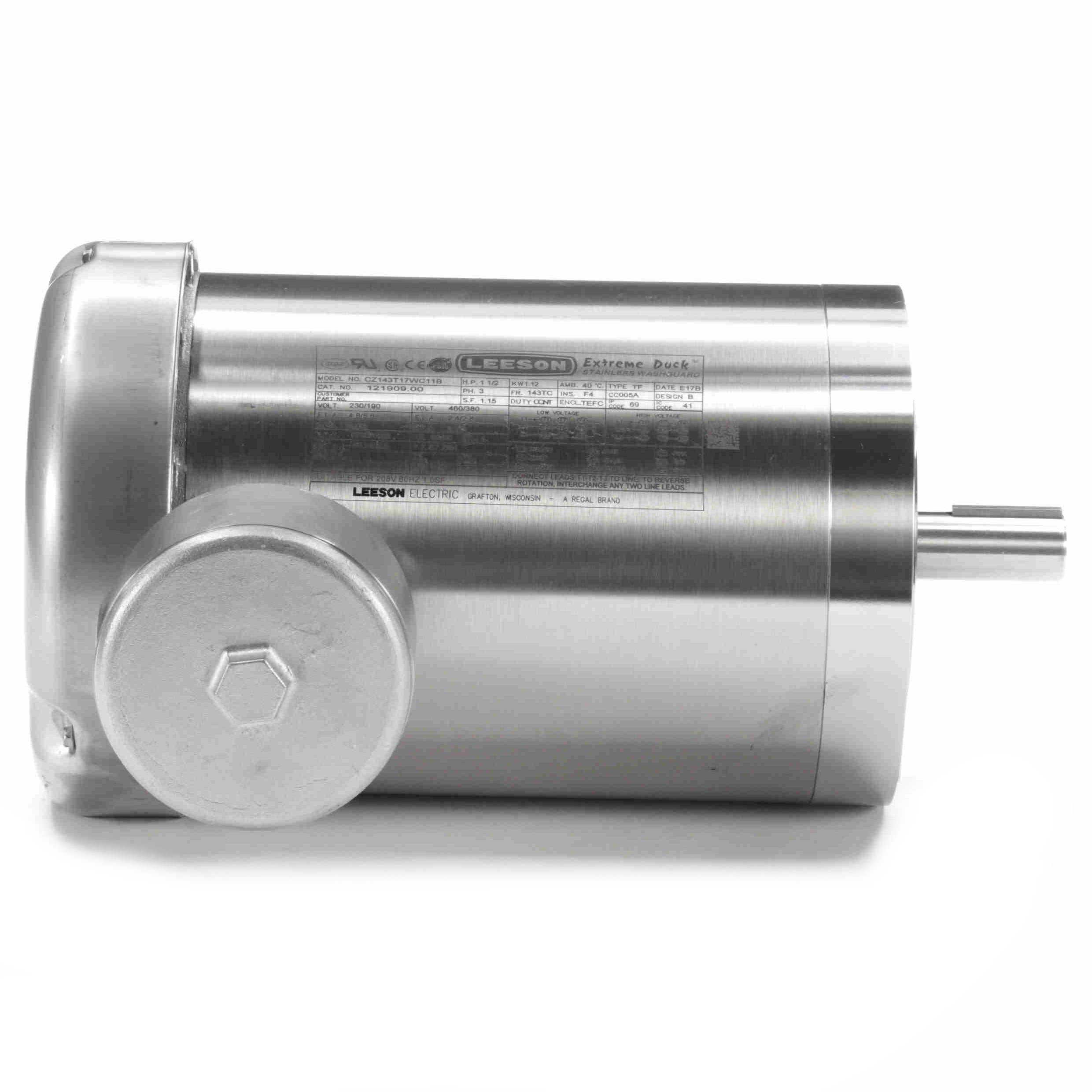

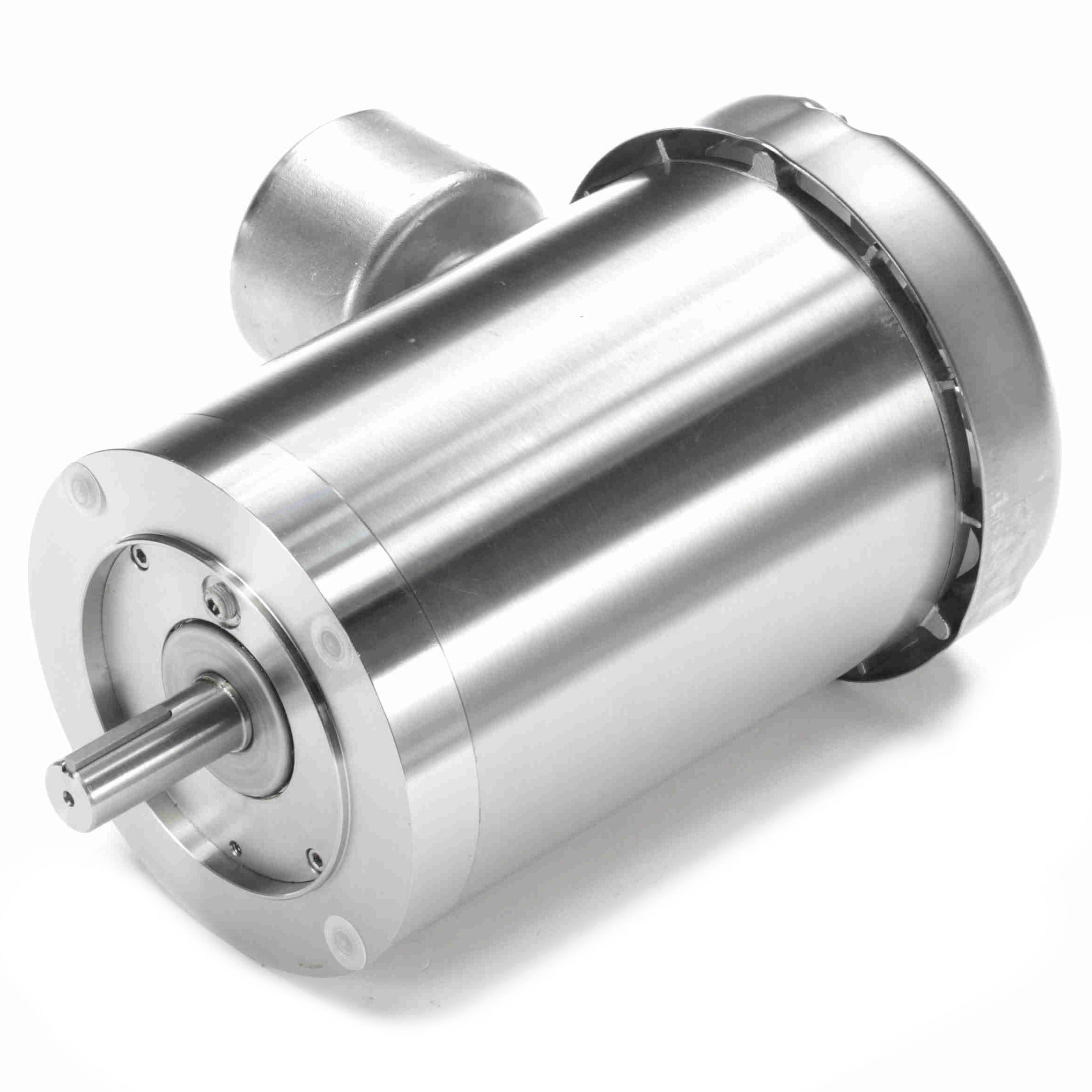

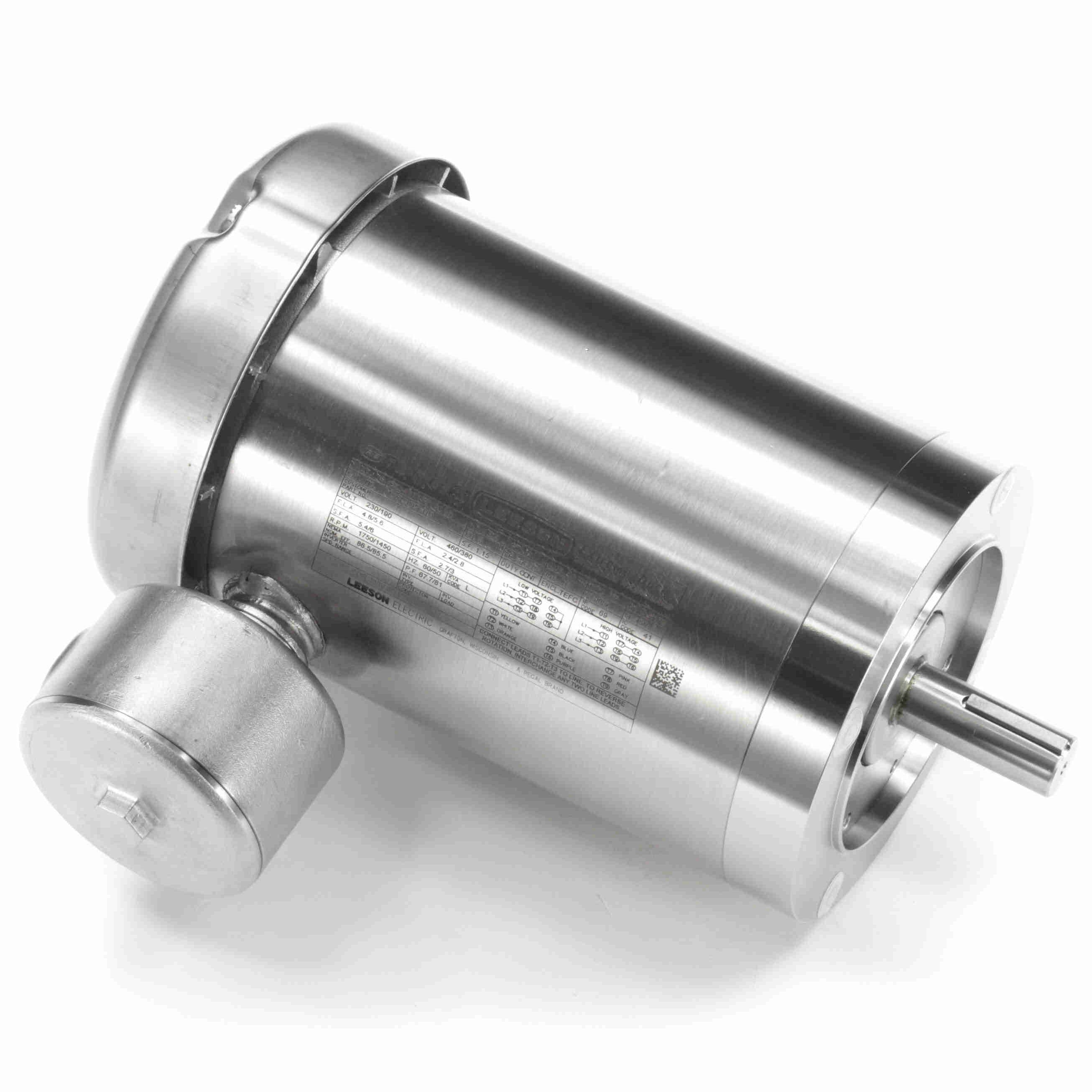

Regal Rexnord 121909.00 Washdown electric motor 1.5 HP (143TC frame)

Product Description

Regal Rexnord 121909.00 is a 1.5 HP, 3-phase washdown electric motor rated for 230/460 V and a rated speed of 1725 RPM. The motor uses a totally enclosed fan cooled (TEFC) IP69K washdown enclosure with 300-series stainless steel exterior components and Viton sealing for chemical resistance. It includes LEESON IRIS inverter-rated insulation, a Q-Car rotor cartridge, and a 7/8 in keyed shaft in a 143TC frame for continuous-duty industrial applications.

• 230/460 V, 3-phase motor; 1.5 HP (1.1 kW); rated speed 1725 RPM; continuous duty
• Totally enclosed fan cooled (TEFC) washdown design, IP69K protection, 300-series stainless steel exterior, Viton seals
• LEESON IRIS inverter-rated insulation, Q-Car rotor cartridge, removable hydrophobic breather, 7/8 in keyed shaft (143TC)

Product Highlights

1.5 HP, 230/460 V TEFC washdown motor; IP69K; 143TC frame; 7/8 in keyed shaft

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 121909.00

Technical Specifications

• Brand: Regal Rexnord
• Manufacturer: Leeson (Regal Rexnord)
• MPN: 121909.00
• Barcode / UPC: 691720211793
• Output Power (HP): 1.5 HP
• Output Power (kW): 1.1 kW
• Voltage: 230/460 V
• Frequency: 60 Hz
• Phase: 3-phase
• Rated Speed: 1725 RPM
• Current: 4.8/2.4 A
• Service Factor: 1.15
• Efficiency: 86.5%
• Power Factor: 67.7%
• Duty Cycle: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: L
• Frame Size: 143TC
• Enclosure: Totally enclosed fan cooled (TEFC)
• IP Rating: IP69K
• Shaft Diameter: 0.875 in (7/8 in) keyed
• Shaft Extension: 2.25 in
• Mounting: Round body, C-face (143TC)
• Orientation: Horizontal
• Poles: 4
• Starting Method: Across the line
• Bearings: Drive end: 6205 ball; Opposite drive end: 6205 ball
• Thermal Protection: No
• Rotor Type: Squirrel cage induction
• Cooling: TEFC
• Material: 300-series stainless steel exterior components; Viton sealing components
• Breather: Removable hydrophobic breather
• Insulation System: LEESON IRIS inverter-rated insulation
• Rotor Cartridge: Q-Car rotor cartridge
• Certifications: UL recognized; CSA; CE
• Ambient Temperature: 40 C
• Overall Length: 12.69 in
• Frame Length: 7.75 in
