Regal Rexnord 117179.00 Leeson 2 HP Single Phase Boat Lift Motor (56C) C6C17NC99A

Product Description

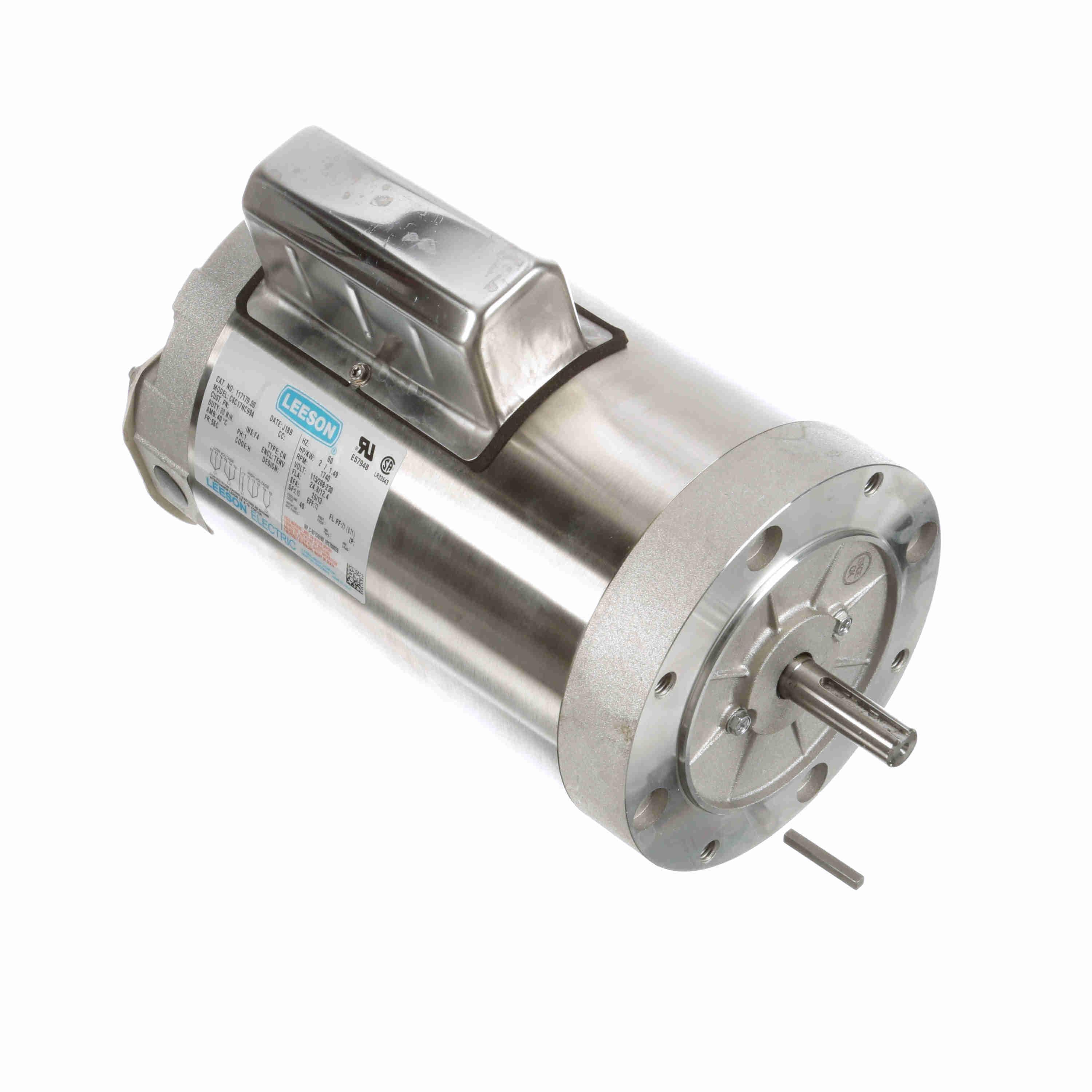

Regal Rexnord 117179.00 is a Leeson 2 HP single-phase AC motor designed for boat lift duty, providing 1740 rpm and a 5/8-inch keyed output shaft. It has a stainless steel frame, capacitor case, and conduit box cover, a totally enclosed nonvented (TENV) enclosure with IP43 rating, and operates on 115/230 VAC at 60 Hz with a 1.15 service factor. The motor is UL and CSA listed and rated for 40°C ambient.

• Stainless steel exterior with capacitor case at 12:00, drain holes at 6:00, and die-cast aluminum endbells.
• Electrical: 2 HP (1.5 kW), 1740 rpm, 115/230 VAC, 60 Hz, 24.8/12.4 A, service factor 1.15, Class F insulation.
• Mechanical: Totally enclosed nonvented (TENV) enclosure, IP43, 56C C-face footless mount, 5/8 in keyed shaft (0.63 in dia x 1.88 in L), double-sealed ball bearings.

Product Highlights

2 HP stainless steel TENV motor for boat lift duty, 1740 rpm, 56C C-face mount, UL and CSA listed.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 117179.00

Technical Specifications

• Brand: Regal Rexnord
• Manufacturer: Regal Rexnord Commercial
• Manufacturer Part Number: 117179.00
• Alternative Part Number: 117179
• Model/Spec Number: C6C17NC99A
• Application: Boat Lift Duty
• Horsepower: 2 HP
• Power (kW): 1.5 kW
• Speed (RPM): 1740 rpm
• Frame: 56C
• Mounting Type: C-Face footless mount (C-Face No Base)
• Enclosure: TENV (Totally Enclosed Nonvented)
• Ingress Protection (IEC): IP43
• Input Voltage: 115/230 VAC
• Frequency: 60 Hz
• Amperage: 24.8/12.4 A
• Service Factor: 1.15
• Duty Cycle: 15 minute
• Shaft: 5/8 in keyed output shaft (0.63 in dia x 1.88 in L)
• Insulation Class: Class F
• Operating Temperature: 40 deg C
• Bearing Type: Double-sealed ball bearings
• Torque: 6 ft-lb
• Overall Length: 12.95 in
• Certifications: UL Listed; CSA Certified
• HS Code: 8501.40.6040
• UPC: 691720108192
