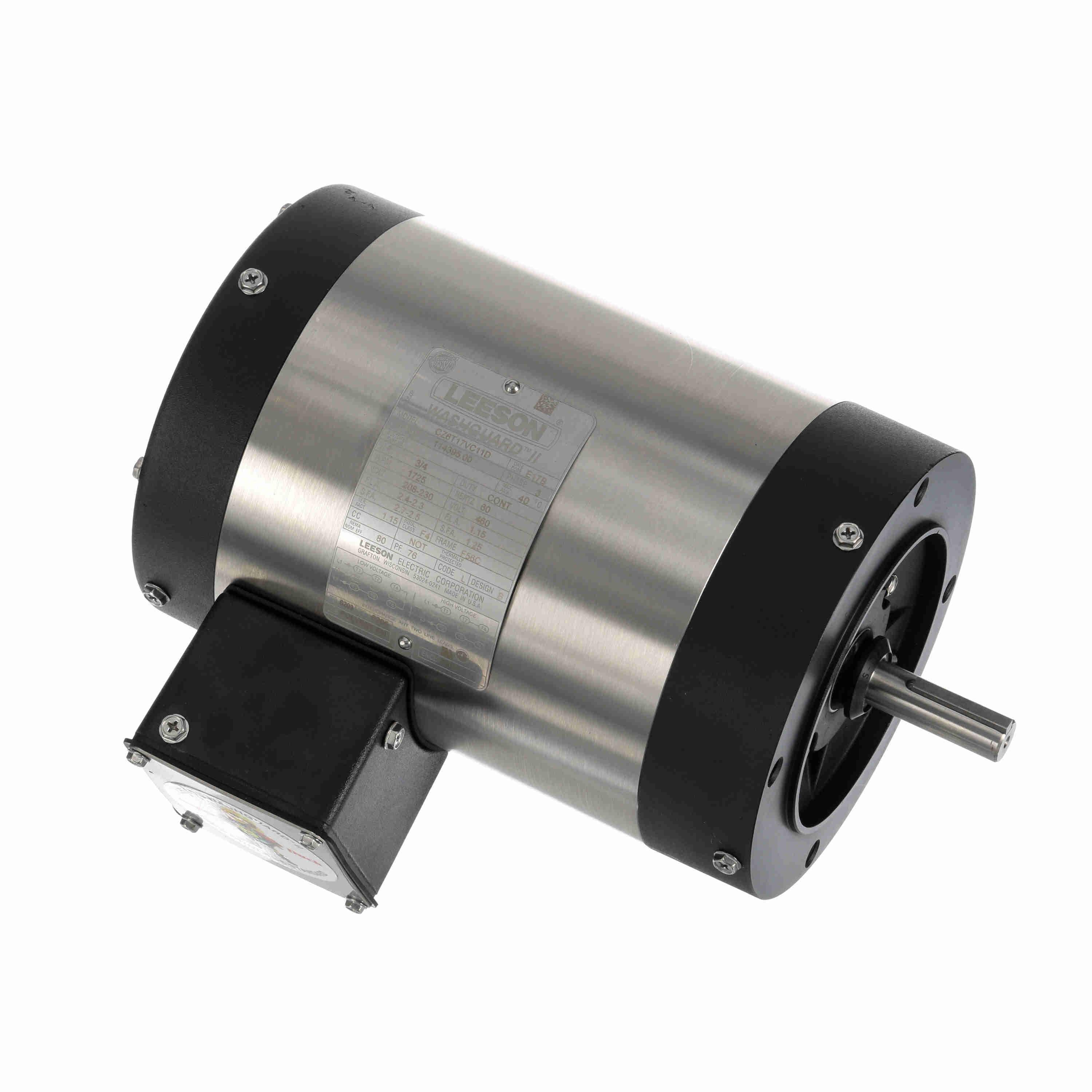

Regal Rexnord 114395.00 Washguard 0.75 hp 4-pole continuous duty AC motor (F56C)

Product Description

Regal Rexnord 114395.00 is a 0.75 hp three-phase Leeson Washguard AC motor rated 208-230/460 V and 1725 rpm. It is a 4-pole continuous duty, inverter-ready motor with a totally enclosed nonvented enclosure and full stainless steel exterior for washdown environments. The F56C frame includes a 0.63 in diameter x 1.88 in shaft, 1.15 service factor, ball bearings, and 36 ft-lb torque; rated to 40 °C and Class F insulation.

• Four-pole, three-phase AC motor, 0.75 hp, 1725 rpm, rated 208-230/460 V at 60 Hz
• Totally enclosed nonvented (TENV) stainless steel exterior, F56C frame, round/C-face/footless mounting
• Inverter ready with 1.15 service factor, ball bearings, 0.63 in x 1.88 in shaft

Product Highlights

0.75 hp stainless steel TENV Washguard motor, F56C frame, 208-230/460 V, inverter-ready, Class F insulation

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 114395.00

Technical Specifications

• Brand: Regal Rexnord (LEESON)
• Manufacturer: Regal Rexnord
• MPN: 114395.00
• Power (hp): 0.75 hp
• Input Voltage: 208-230/460 V
• Full Load Current: 2.4 A (208 V), 2.3 A (230 V), 1.15 A (460 V)
• Frequency: 60 Hz
• Phase: 3 phase
• Speed (rpm): 1725 rpm
• Poles: 4-pole
• Enclosure: Totally Enclosed Nonvented (TENV)
• Frame: F56C
• Shaft: 0.63 in diameter x 1.88 in length
• Service Factor: 1.15
• Bearings: Ball bearings
• Mounting: Round/C-face/Footless mounting
• Ambient Temperature Rating: 40 °C
• Insulation Class: Class F
• Exterior Material: Stainless steel
• Variable Speed Type: Inverter-ready (manufacturer indicates 10:1 variable torque capability)
• Dimensions: 11.56 in L x 6.59 in H
• Certifications: BISSC; CSA; UL Listed
• Application: Food processing, baking industry, commercial and industrial applications
• UPC: 691720013915
