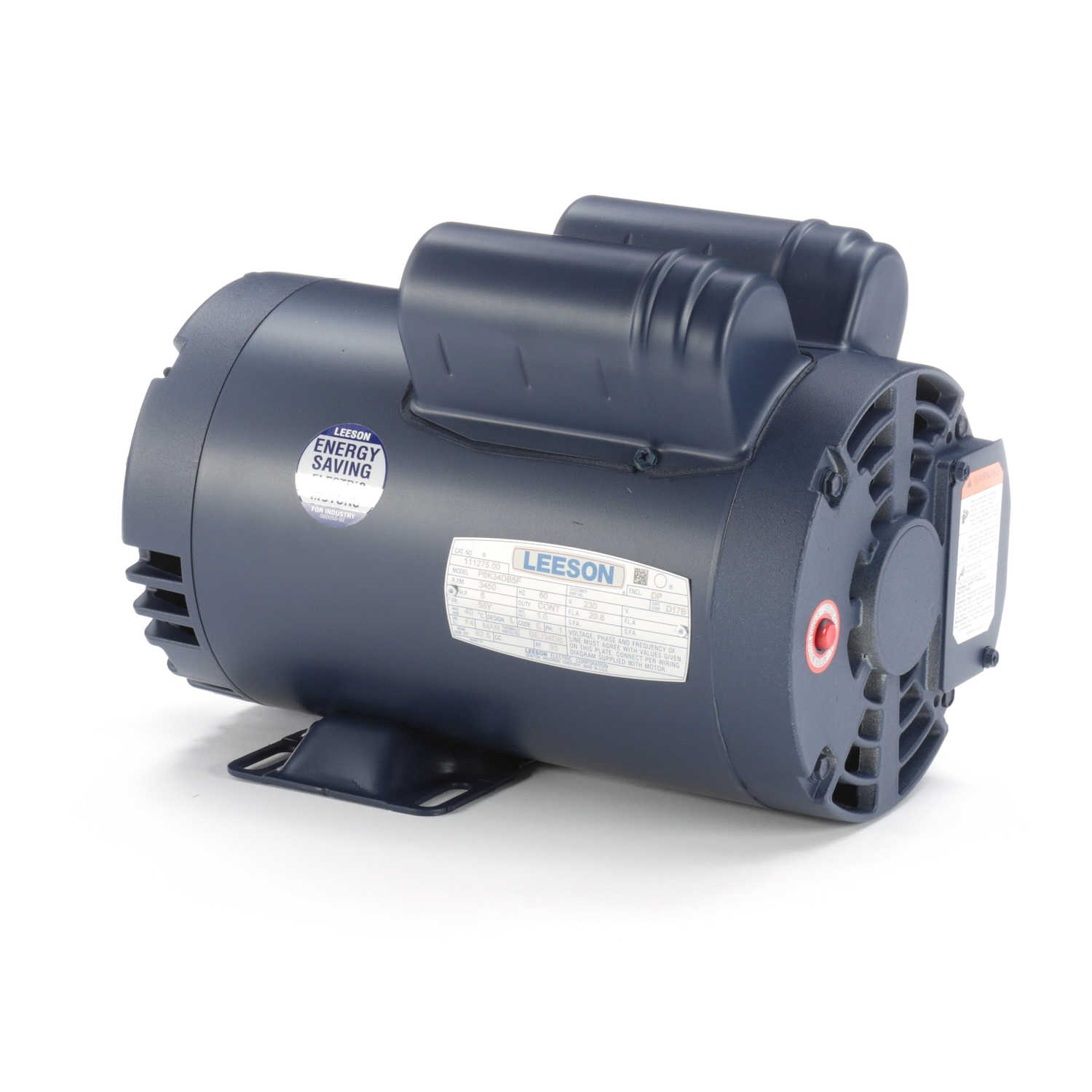

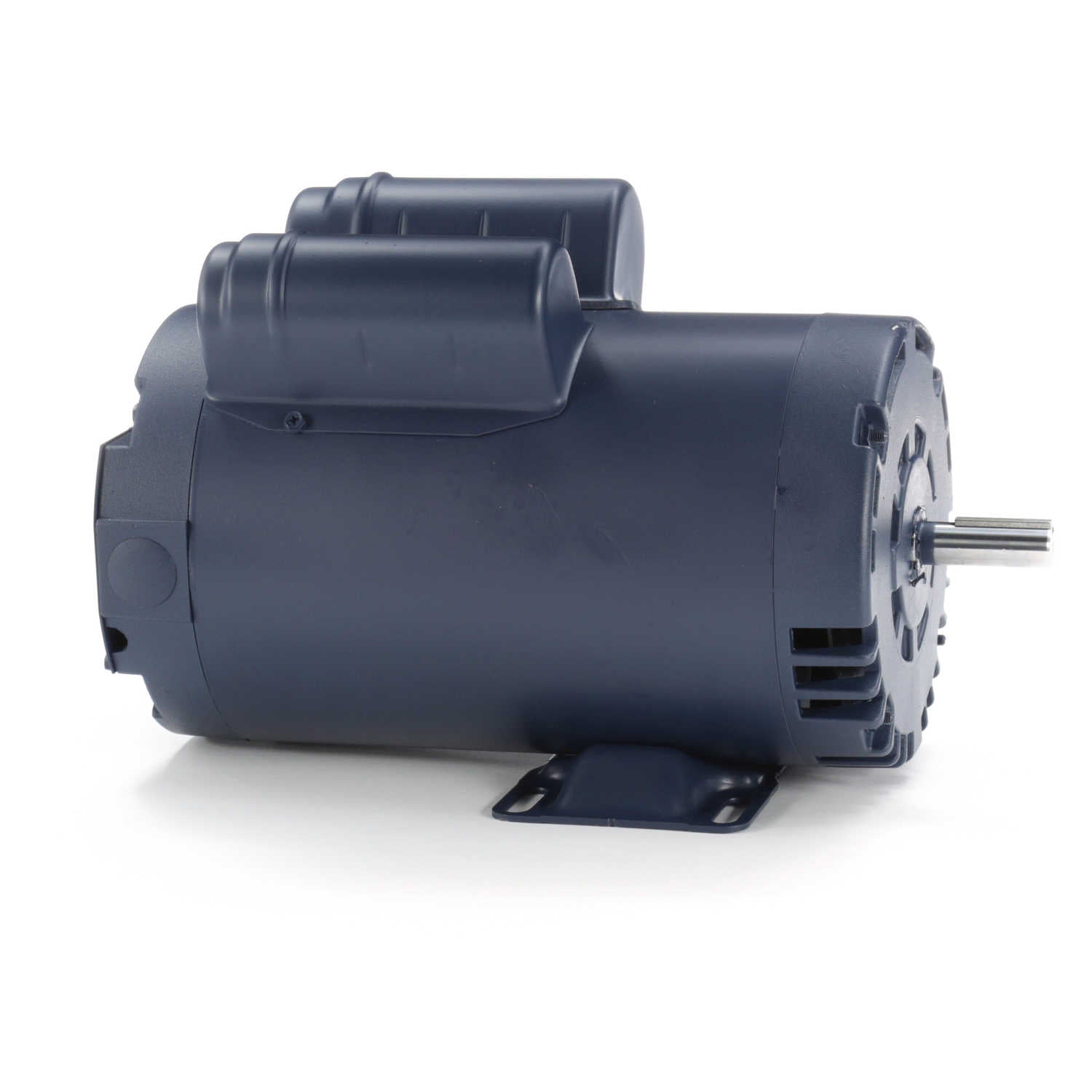

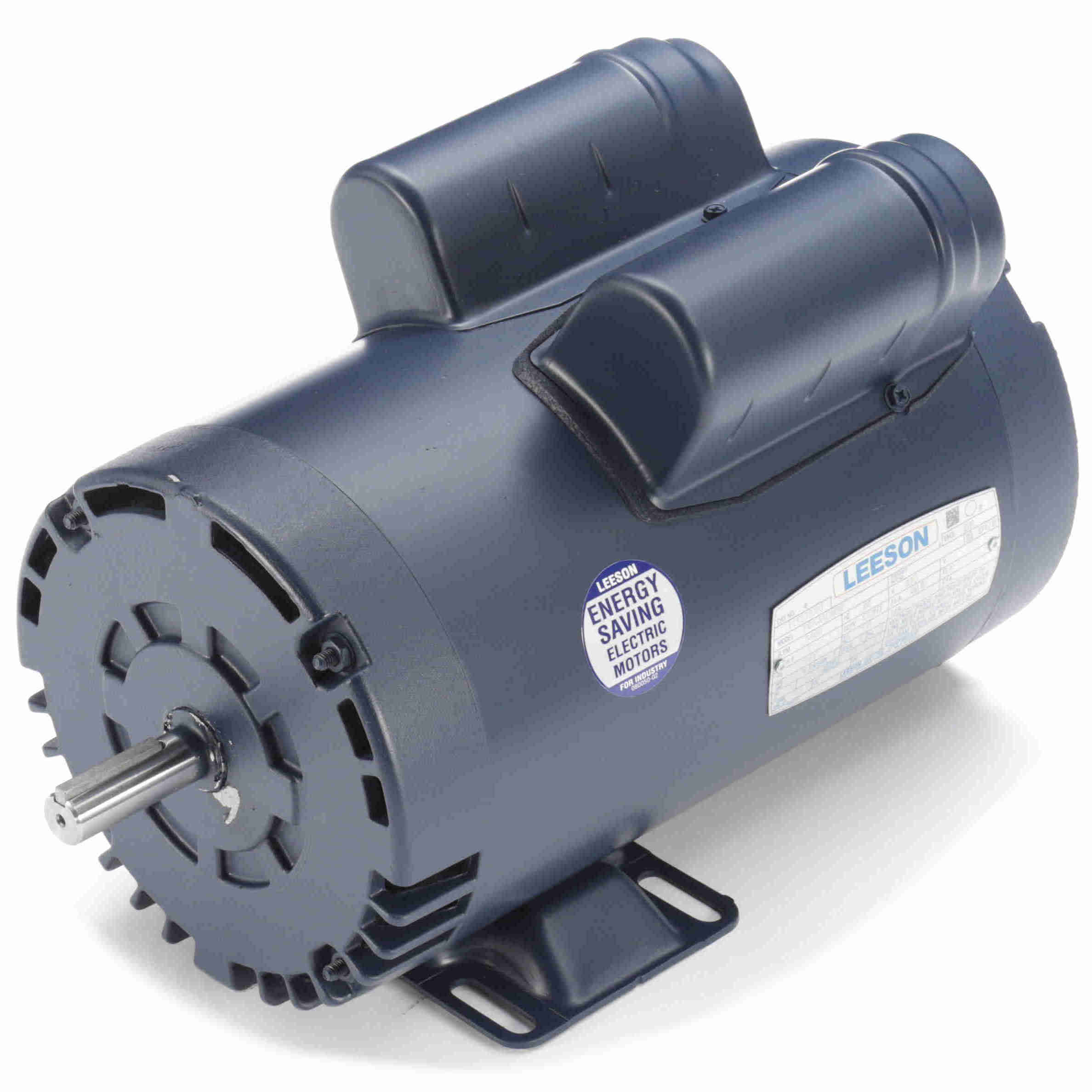

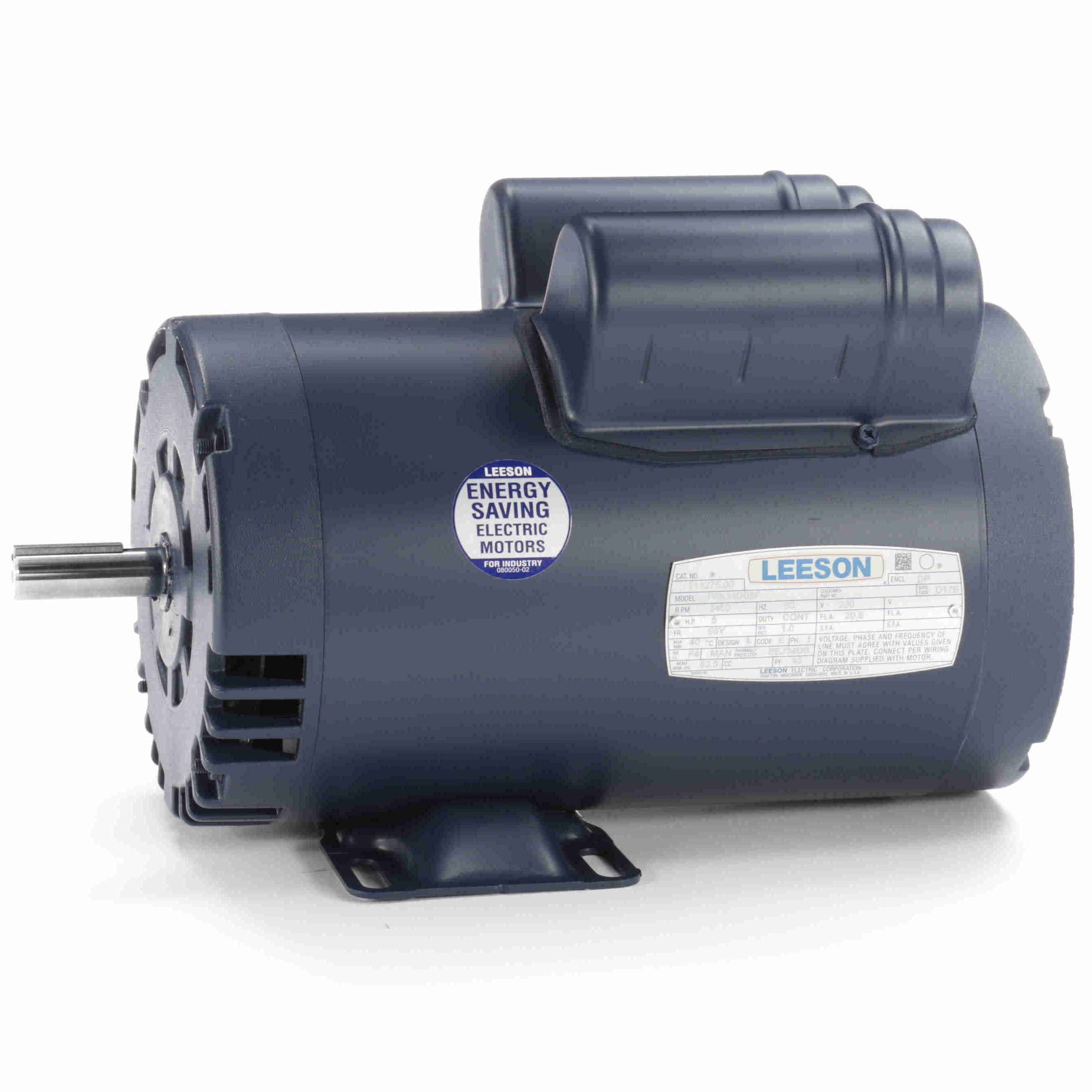

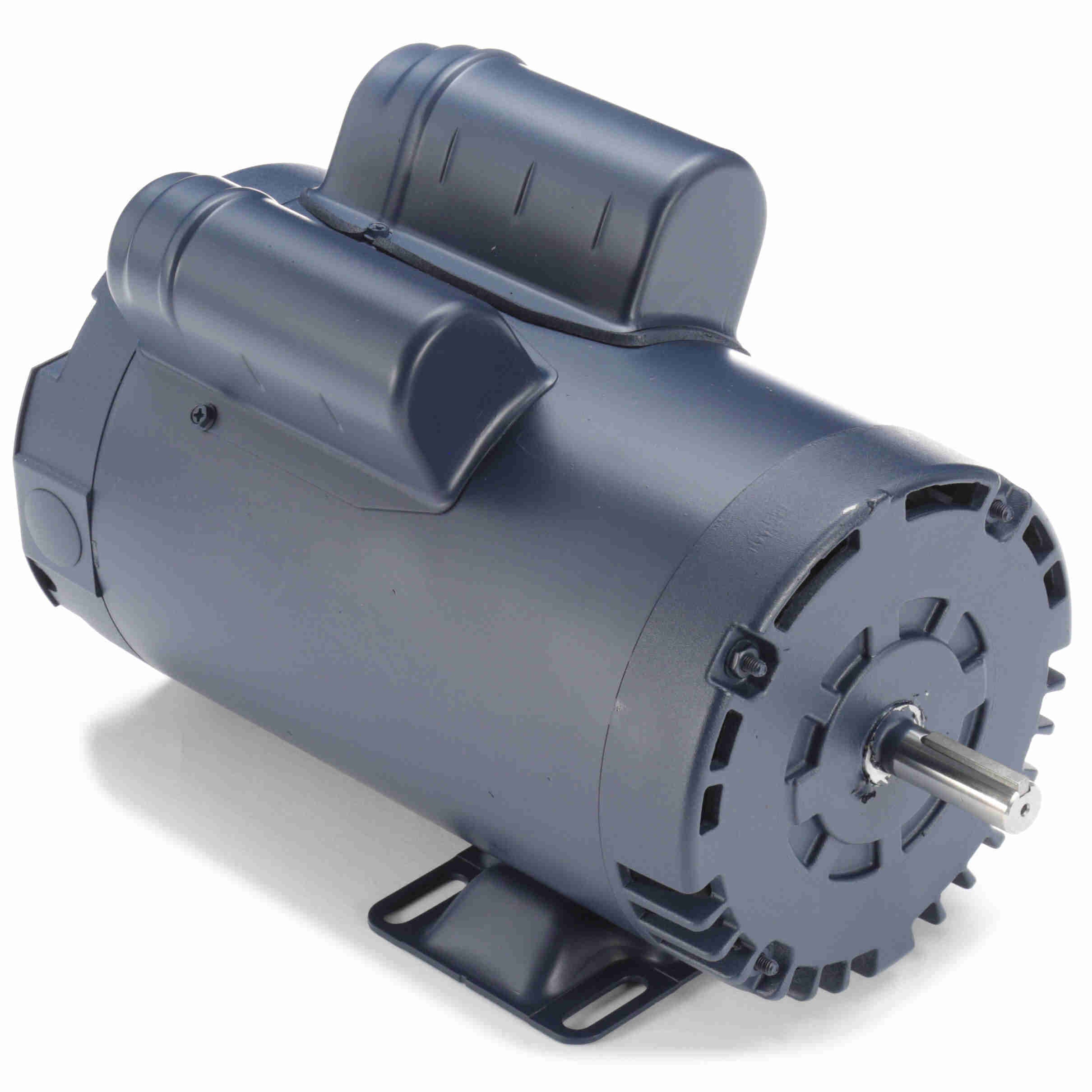

Regal Rexnord 111275.00 Leeson 5 HP Single Phase Compressor Duty Motor (56Y) P6K34DB5F

Product Description

Regal Rexnord 111275.00 is a Leeson 5 HP single-phase compressor-duty electric motor rated 230 V and 3450 RPM. It employs capacitor start/capacitor run electrical design with manual overload protection and service factor 1 for continuous duty in compressor, pump, fan, and blower applications. The motor is built on a 56Y NEMA frame with drip-proof (IP22) enclosure, rigid base mounting, 0.625 in shaft, and double-shielded ball bearings for belted or direct-drive installations.

• 5 HP (3.7 kW) output, 230 V, 60 Hz, single-phase, rated speed 3450 rpm
• 56Y NEMA frame, drip-proof (DP) enclosure, rigid base mount, 0.625 in shaft
• Capacitor start/capacitor run electrical type, manual overload protection, dual rotation

Product Highlights

Compressor-duty 5 HP single-phase motor, 56Y frame, 3450 RPM, 230 V, DP enclosure, rigid base

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 111275.00

Technical Specifications

• Brand: Regal Rexnord (Leeson)
• MPN: 111275.00
• Model: P6K34DB5F
• Category: Compressor duty AC motor
• Application: Air compressor, pump, fan, blower; belted or direct drive
• Output Power: 5 hp (3.7 kW)
• Input Voltage: 230 V
• Frequency: 60 Hz
• Phase: Single-phase
• Speed (Rated): 3450 rpm
• Synchronous Speed: 3600 rpm
• Frame Size: 56Y
• Frame Profile: NEMA
• Mounting Type: Rigid base (base mount)
• Enclosure: Drip proof (DP)
• Enclosure Rating: IP22
• Electrical Type: Capacitor start, capacitor run
• Service Factor: 1
• Insulation Class: F
• Full-load Current: 20.8 A
• Efficiency (Full load): 82.5%
• Poles: 2
• Rotation: Selective clockwise / dual rotation
• Shaft Diameter: 0.625 in (15.875 mm)
• Shaft Extension: 1.87 in
• Base to Center of Shaft: 3.5 in (88.9 mm)
• Overall Length: 13.34 in (338.84 mm)
• Frame Length: 8.50 in
• Weight: 47 lb (21.32 kg)
• Bearings: Double-shielded ball bearings
• Drive End Bearing Size: 6205
• Opposite Drive End Bearing Size: 6203
• Ambient Temperature Rating: 40 °C
• Certifications: UL recognized; CSA yes; CE no
• Construction Material: Rolled steel frame
