Regal Rexnord 109072.00 90vph 0.75hp 1750rpm Motor

Product Description

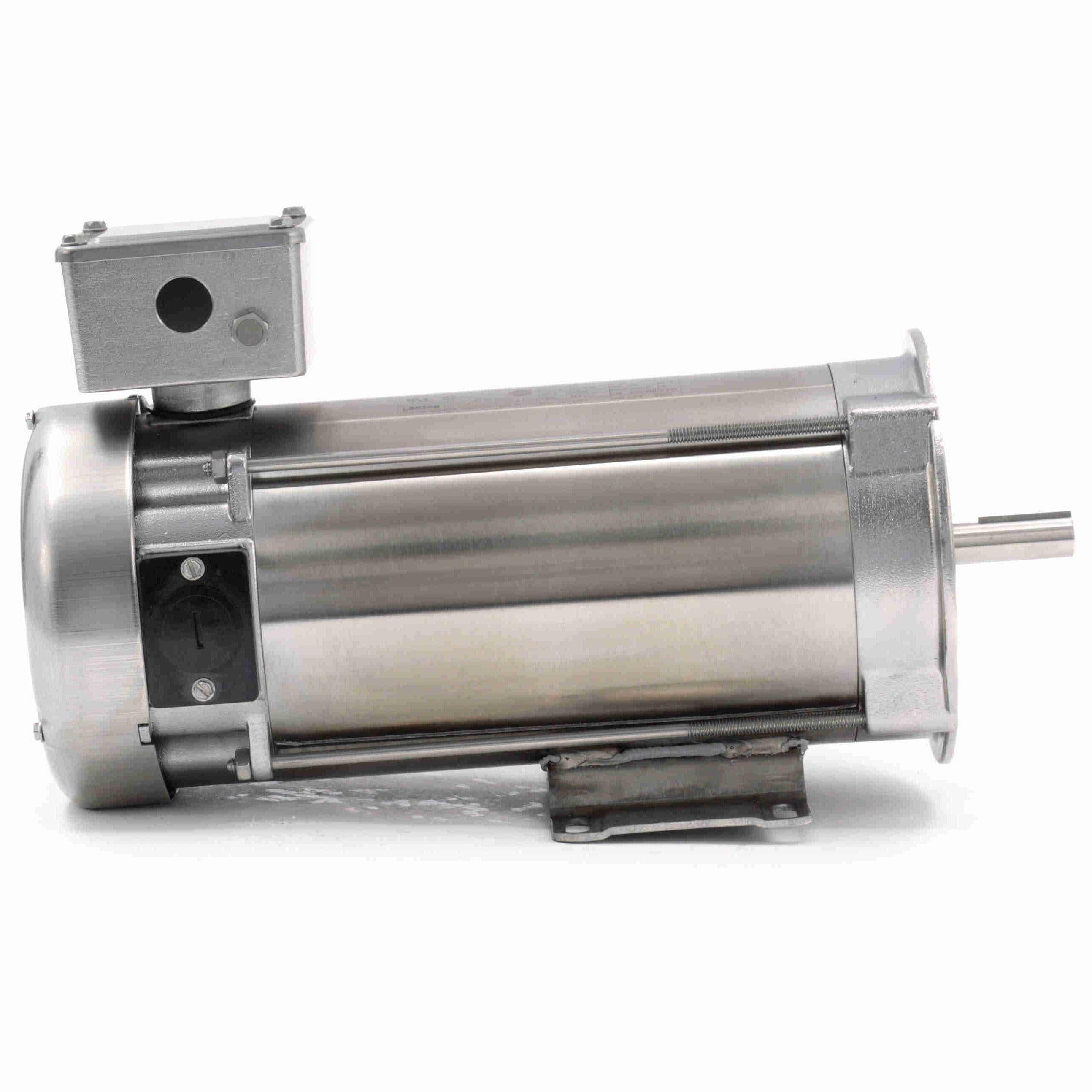

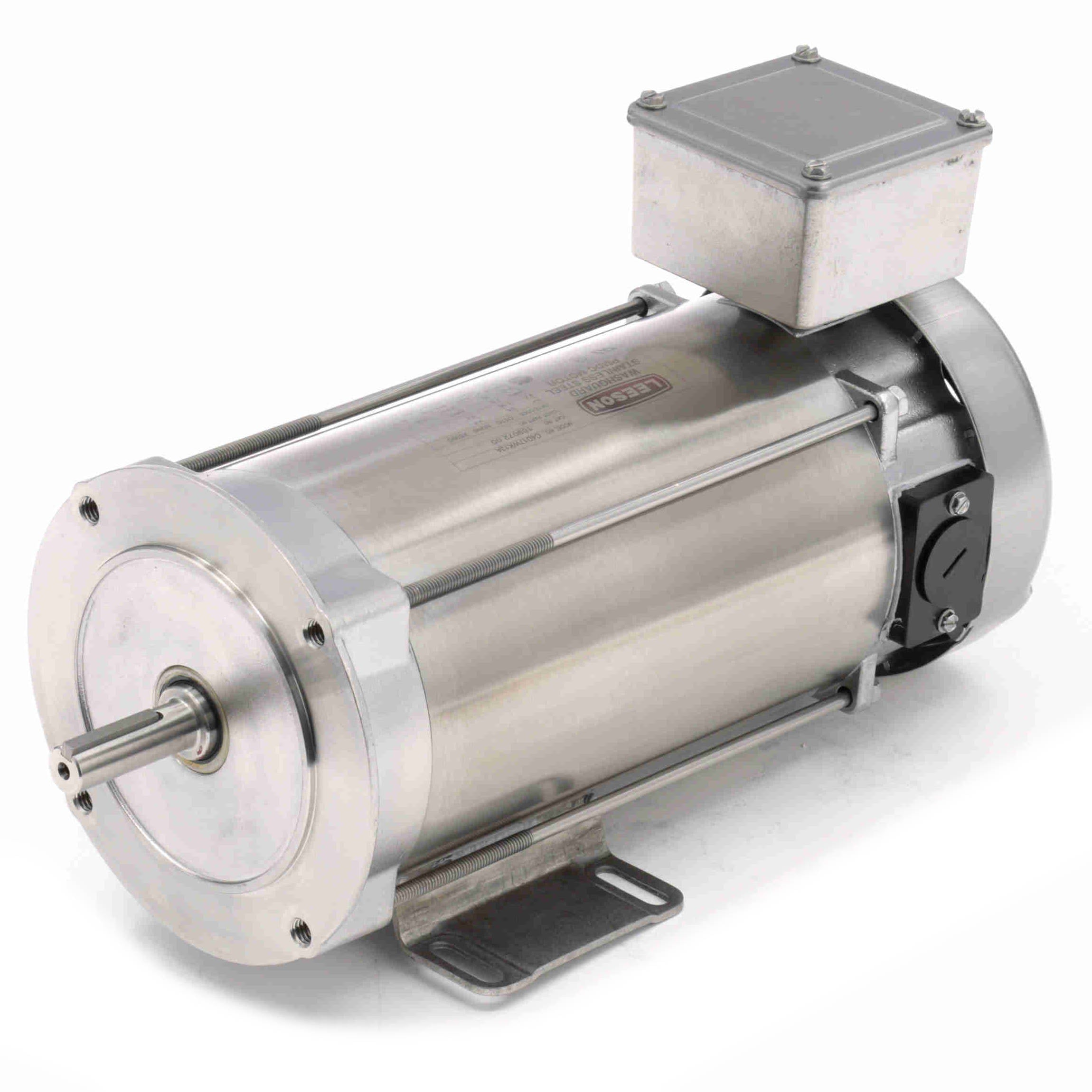

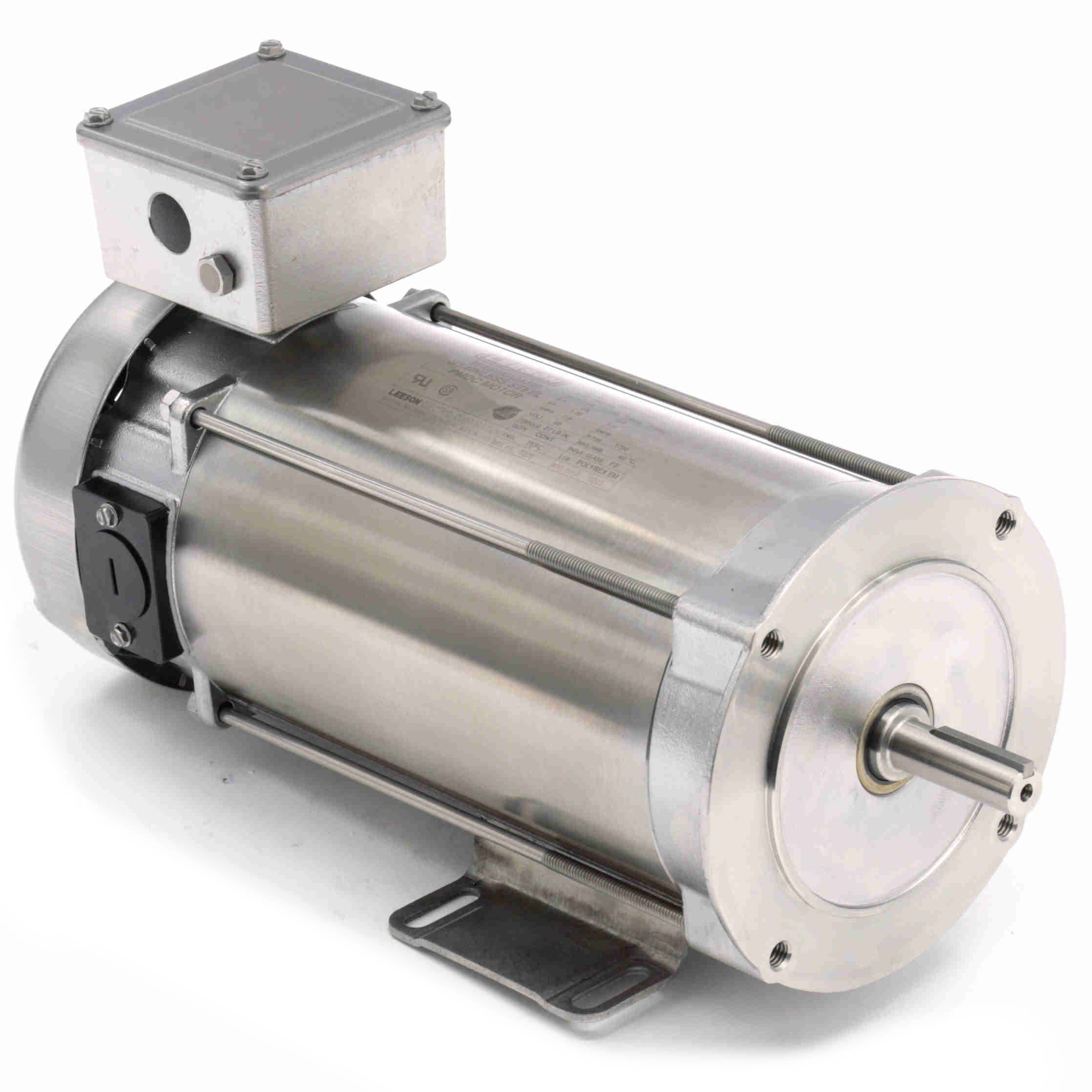

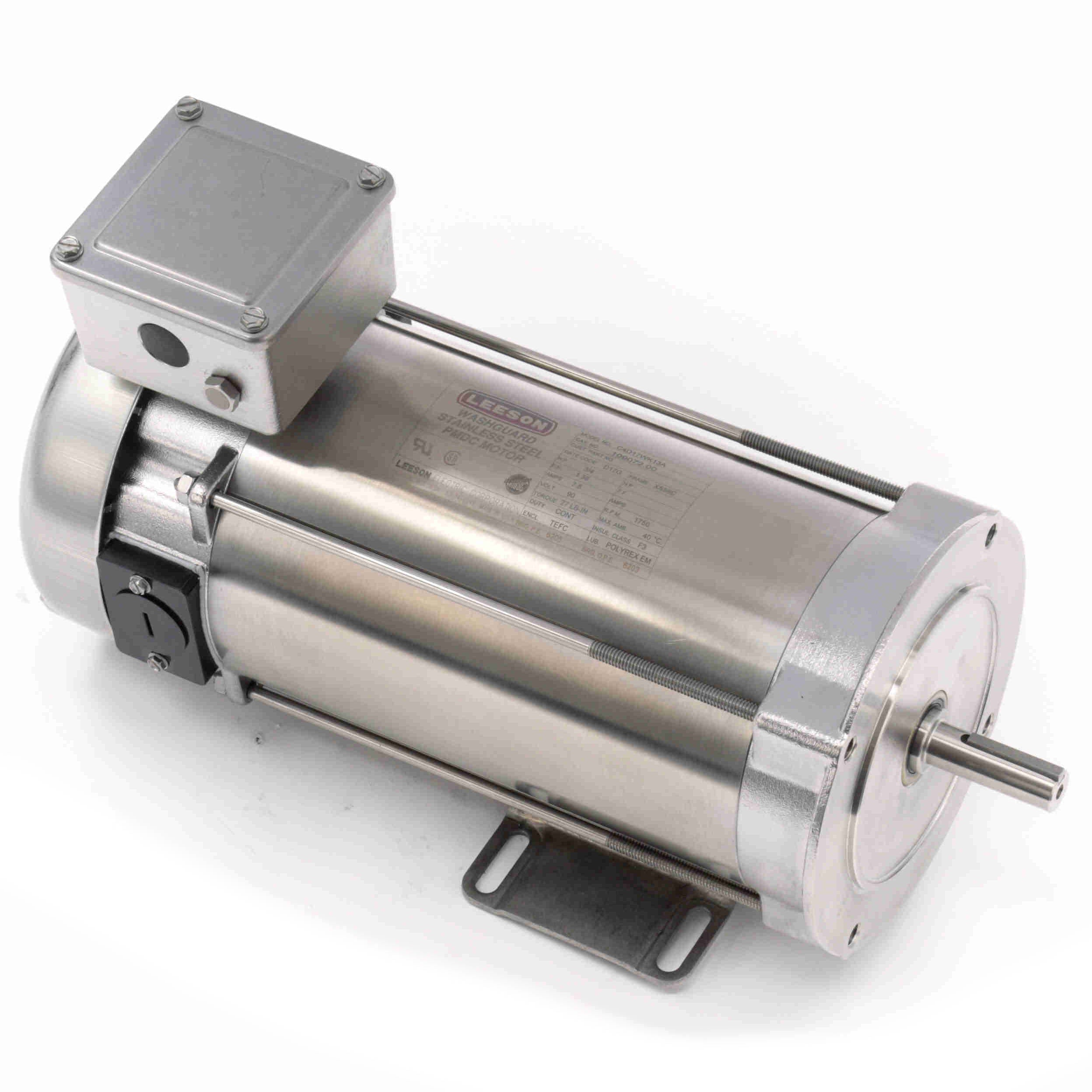

Regal Rexnord 109072.00 is a 0.75 hp, 1750 rpm washdown-duty motor listed as "90vph" and specified in vendor documentation as a 90 VDC permanent magnet drive. The motor is stainless steel washguard construction with a totally enclosed fan-cooled (TEFC) enclosure, C-face with base mounting, continuous duty rating, and features designed for sanitary and corrosive washdown environments.

• 0.75 hp (0.56 kW), 1750 rpm permanent magnet motor with 90 VDC input and 7.5 A full load current
• All exterior 300-series stainless steel washguard construction, BISSC-certified easy-to-clean design
• Sealing and protection: Viton sealing components, O-ring sealed endshields, double-lip shaft seals, and double-sealed pre-lubricated bearings

Product Highlights

Stainless washdown TEFC 90 VDC permanent magnet motor, XS56C frame, C-face with base, continuous duty, 0.75 hp, 1750 rpm

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 109072.00

Technical Specifications

• Brand: Regal Rexnord (Leeson)
• Manufacturer Part Number: 109072.00
• Alternate Model Numbers: 4D17WK13, C4D17WK13A
• Model / Description: 90vph 0.75hp 1750rpm Motor
• Horsepower: 0.75 hp
• Power (kW): 0.56 kW
• Speed (RPM): 1750 rpm
• Input Voltage: 90 VDC
• Full Load Current: 7.5 A
• Winding / Motor Type: Permanent magnet (DC)
• Enclosure: Totally enclosed, fan cooled (TEFC)
• Frame: XS56C
• Mounting: C-face with base (rigid C base, foot mount)
• Duty Rating: Continuous
• Insulation Class: F
• Bearings: 6205 (shaft end), 6203 (non-shaft end)
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.05 in
• Service Factor: 1.0 SF
• Efficiency: 86.2 %
• Ambient Temperature Rating: 40 °C
• Construction / Finish: All exterior 300-series stainless steel washguard
• Sealing Features: Viton sealing components, O-ring sealed endshields, double-lip shaft seals, sealed brush tubes
• Additional Protection: Hydrophobic breathers, double-sealed pre-lubricated bearings, polyester-immersed windings
• Nameplate: Laser-etched on motor frame
• Certifications / Recognitions: UL recognized, CSA certified, IEC/UL/CSA recognitions, BISSC easy-to-clean construction
• HS Code: 8501.51.4000
