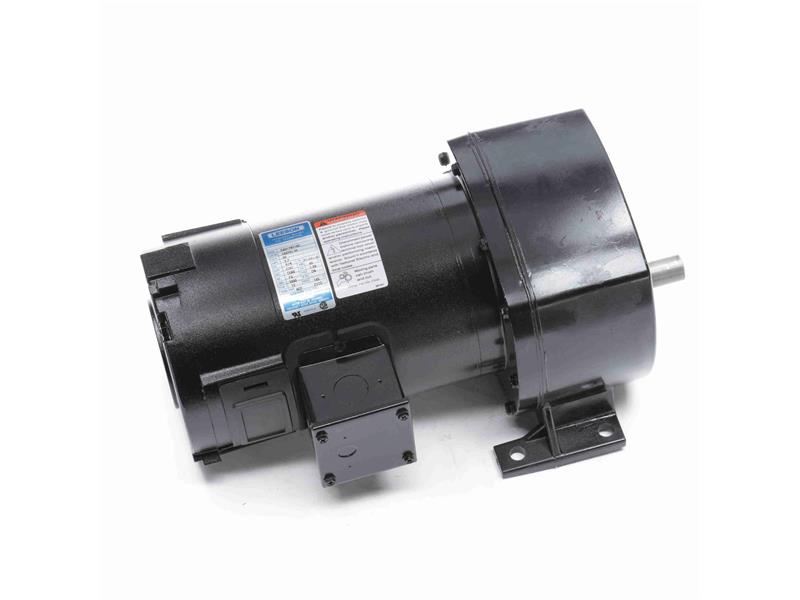

Regal Rexnord 108701.00 1/4 HP 12 RPM parallel gearmotor 90 VDC (143:1) C4D17NZ18

Product Description

The Regal Rexnord 108701.00 is a 1/4 HP DC parallel gearmotor rated for 90 V DC input and an approximately 12 RPM output. It provides a 143:1 gear reduction and produces about 1030 lb-in of torque with a full-load current of 2.7 A. The P1100 series unit is SCR compatible for adjustable speed control and features a die-cast aluminum gear housing, precision hardened gearing, oversized bearings, and a TENV enclosure.

• 90 V DC input, 1/4 HP, approximately 12 RPM output; full-load current 2.7 A
• 143:1 gear reduction delivering approximately 1030 lb-in torque
• TENV enclosure with die-cast aluminum gear housing, precision hardened gearing and oversized output bearings

Product Highlights

Parallel shaft DC gearmotor, 143:1 reduction, TENV enclosure; conduit box included; SCR rated for adjustable speed control

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 108701.00

Technical Specifications

• Brand: Regal Rexnord / Leeson
• Manufacturer Part Number: 108701.00
• Model/Spec Number: C4D17NZ18
• Design: Parallel shaft gearmotor
• Horsepower: 1/4 HP
• Output Power: 0.19 kW
• Output Speed: 12 RPM (approx.)
• Gear Ratio: 143:1
• Torque: Approx. 1030 lb-in
• Overhung Load: 700 lb (manufacturer-stated; likely lbf applied at specified shaft distance)
• Input Voltage: 90 V DC
• Full Load Amperage: 2.7 A
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• Duty Rating: Continuous (SCR rated for adjustable speed control)
• Housing: Die cast aluminum gear housing
• Gearing: Precision machined hardened gearing (AGMA class 9)
• Bearings: Oversized output bearings
• Seals: Heavy duty industrial oil seals
• Weight: 39.00 lbs
