Regal Rexnord 108369.00 DC Motor 3/4 HP (80 Frame) 108369.00

Product Description

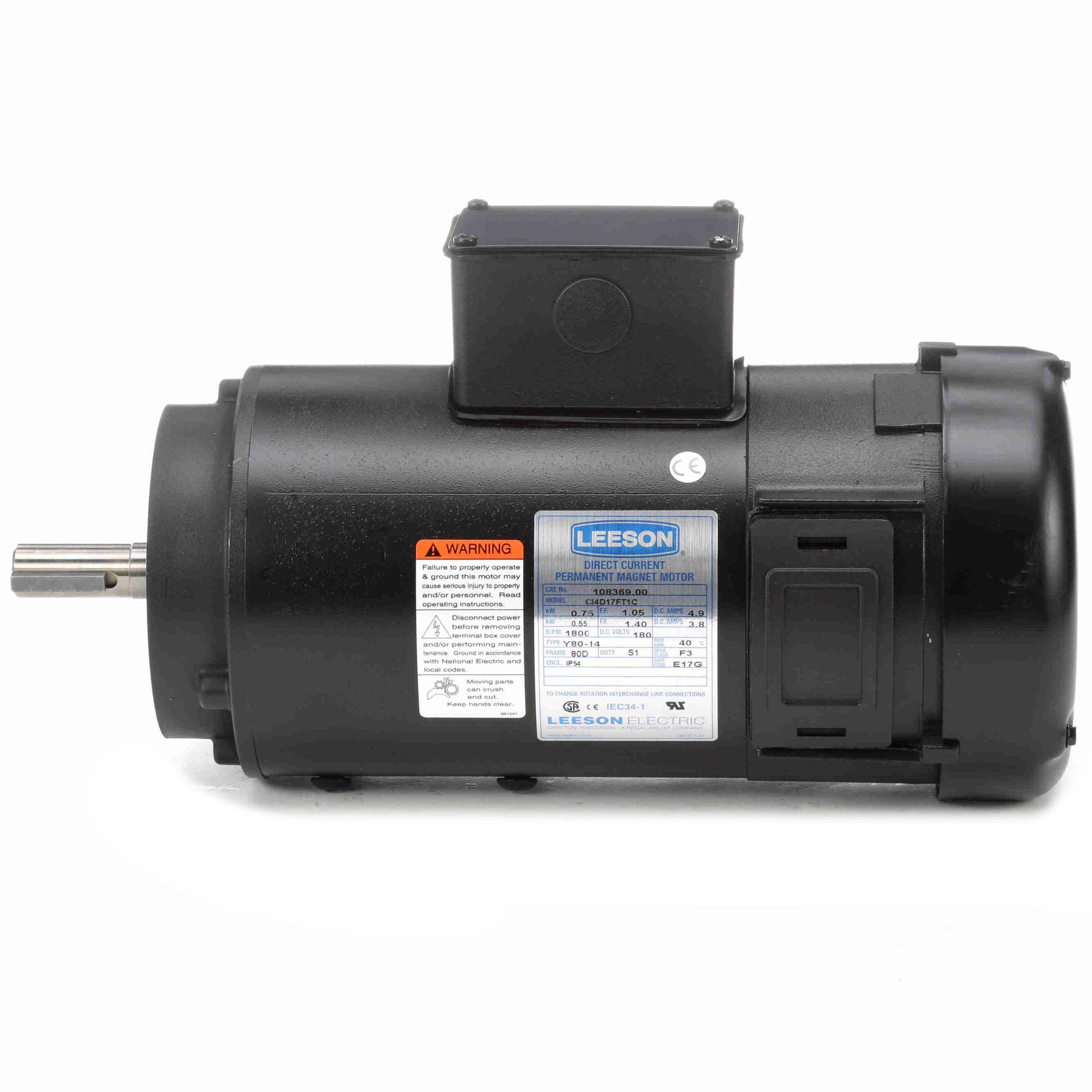

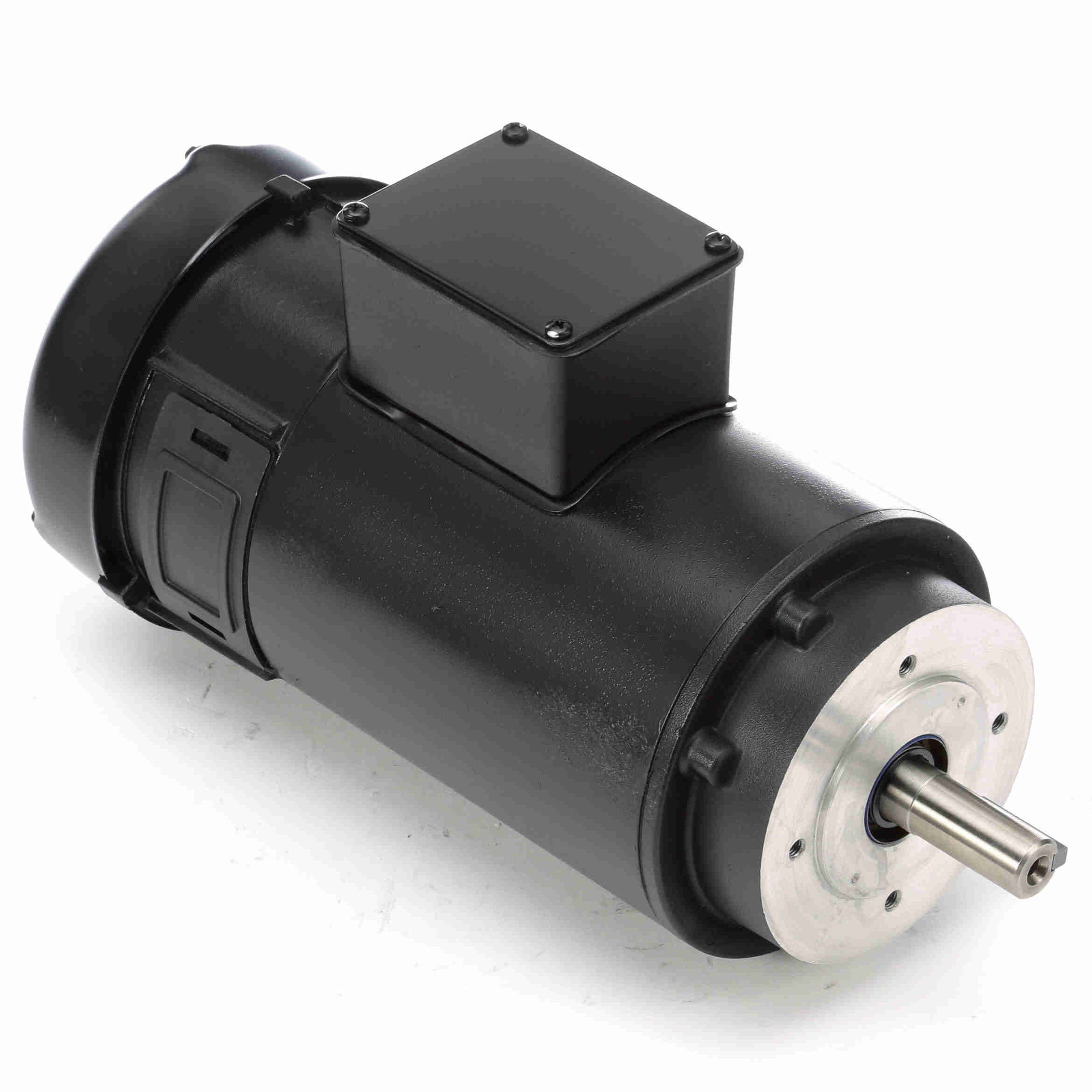

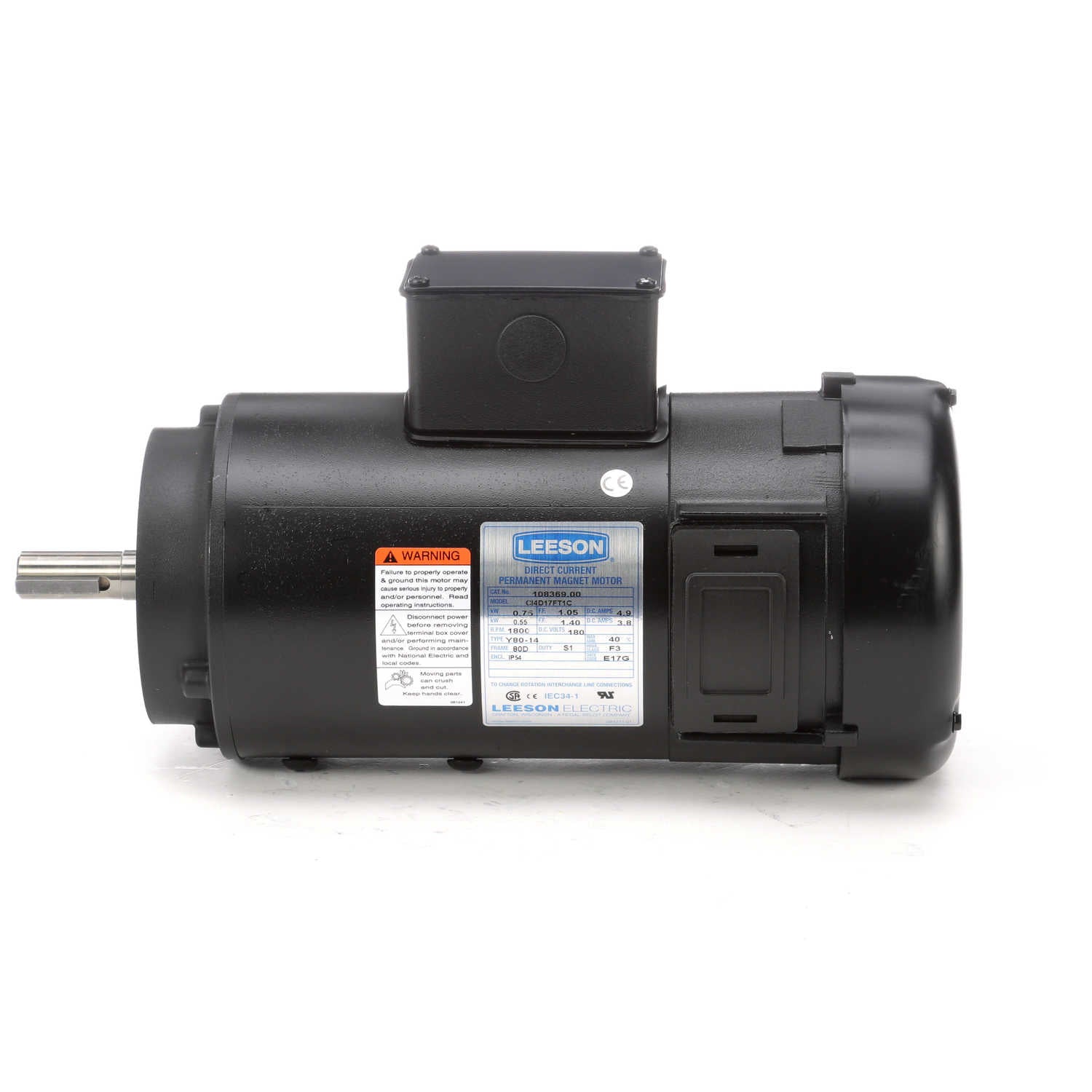

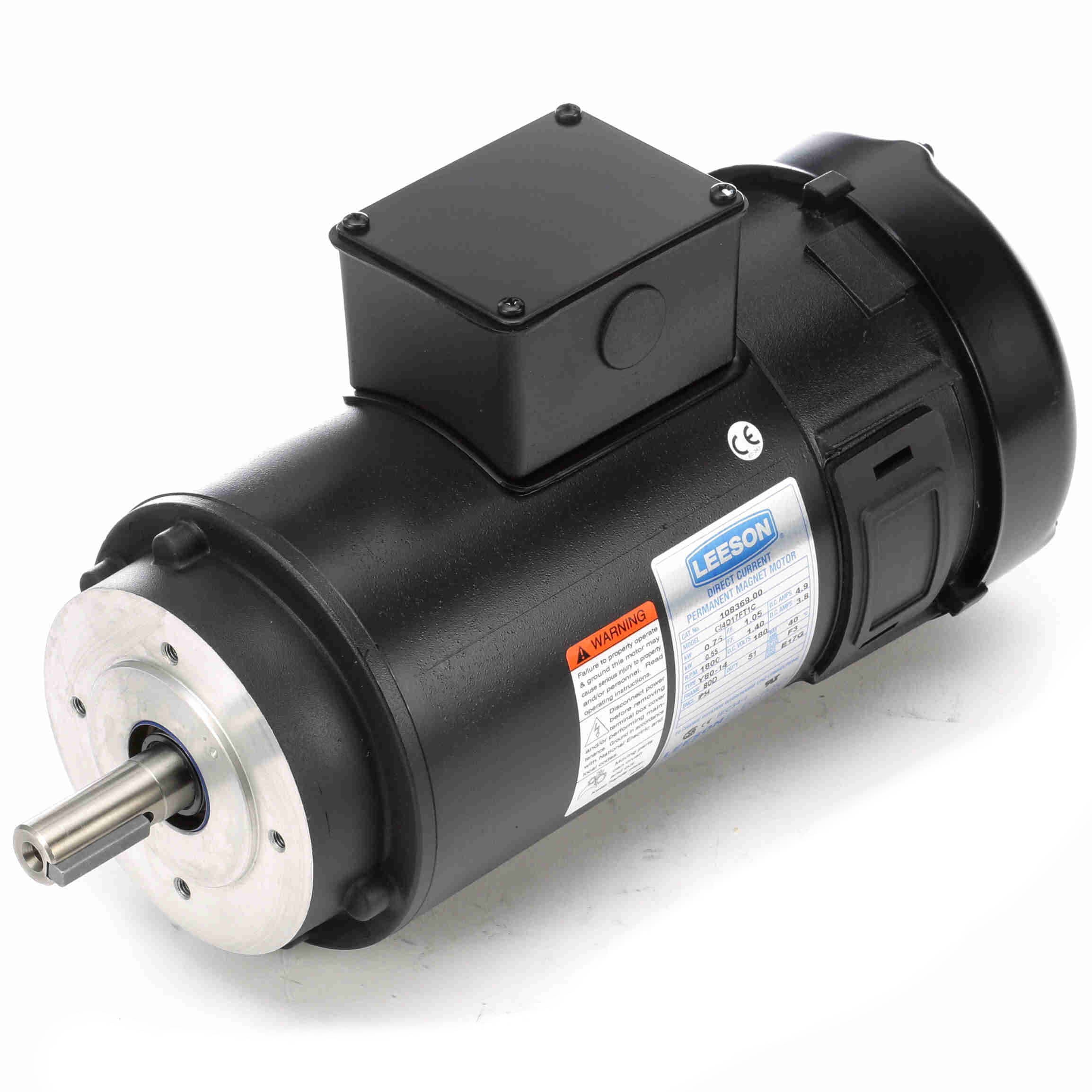

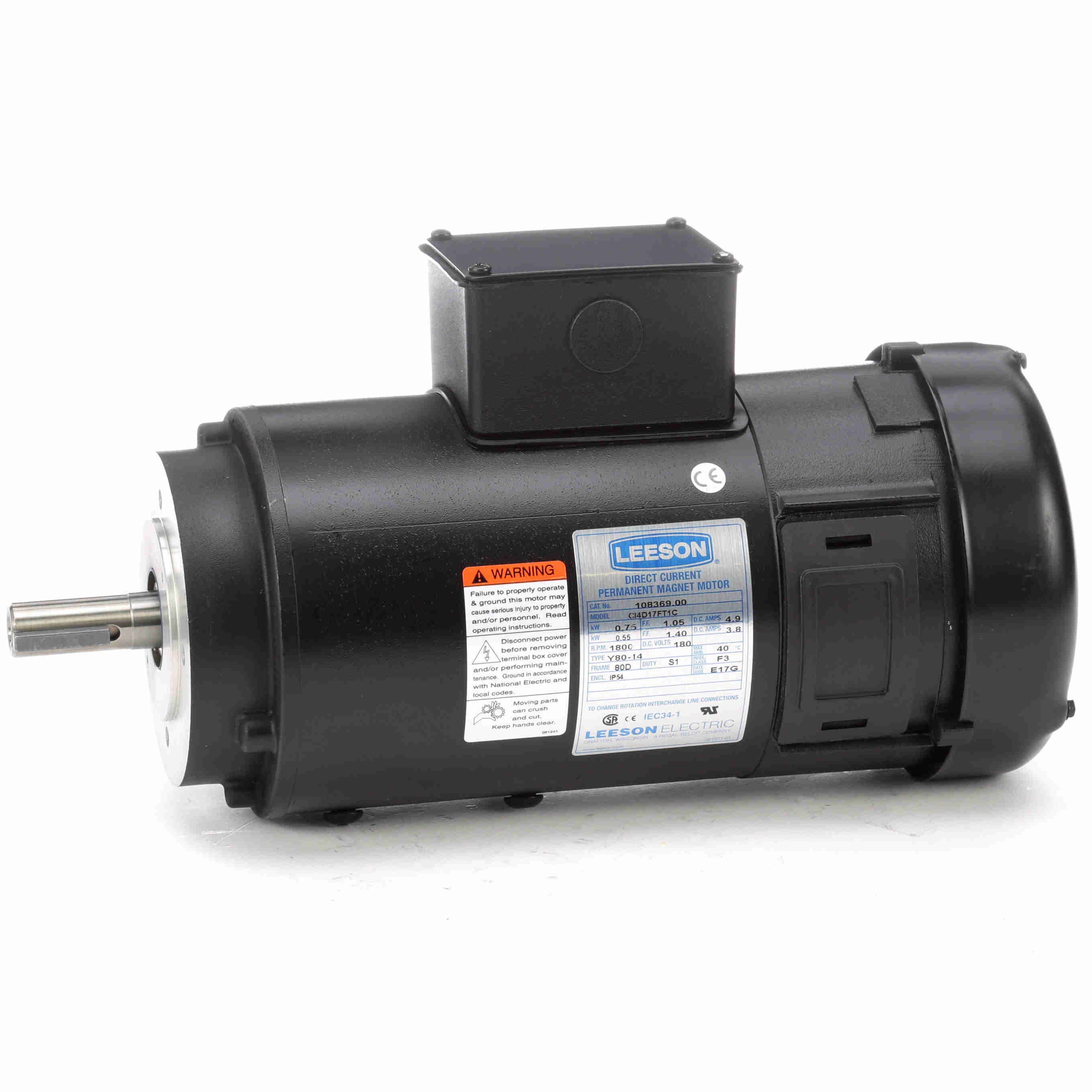

Regal Rexnord 108369.00 is a Leeson IEC metric DC motor rated 180 V DC and 3/4 HP (0.75 kW), producing approximately 1800 rpm in an 80 frame with a TEFC/IP54 enclosure. The motor includes a 19 mm (0.748–0.750 in) shaft, 359.41 mm (14.15 in) overall length, a 4.9 A current rating, and 82% efficiency at full load. Features include reversible rotation and permanently lubricated sealed ball bearings. Insulation class F and S1 duty.

• Rated 180 V DC, 0.75 kW (3/4 HP), ~1800 rpm; 4.9 A nominal current and 82% efficiency at full load
• IEC 80 frame with B14 face mounting (no base); 19 mm shaft diameter and 359.41 mm (14.15 in) overall length
• TEFC / IP54 enclosure, insulation class F, permanently lubricated sealed ball bearings, reversible rotation
• Die-cast aluminum endshields, rolled steel frame, terminal board for connections, brush access provided

Product Highlights

IEC metric DC motor, 180 V DC, 3/4 HP, ~1800 rpm, IP54/TEFC, 80 frame, 19 mm shaft

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 108369.00

Technical Specifications

• Brand: Regal Rexnord
• MPN: 108369.00
• Manufacturer: Regal Rexnord / Leeson Electric Co.
• Type: DC motor (IEC metric, commutated/brushed)
• Power: 0.75 kW (3/4 HP)
• Input Voltage: 180 V DC
• Current: 4.9 A
• Speed: 1800 rpm (nominal at rated voltage/load)
• Frame Size: 80 (IEC 80 frame)
• Enclosure Rating: TEFC / IP54
• Mounting Type: B14 face (no base); optional B3 foot mount or B5 flange mount (if offered)
• Shaft Diameter: 19 mm (0.748–0.750 in)
• Overall Length: 359.41 mm (14.15 in)
• Shaft Extension: 2.05 in
• Efficiency: 82% at full load
• Duty: S1 (continuous)
• Insulation Class: F
• Ambient Temperature Rating: 40 °C
• Bearings: Drive end 6204; Opposite drive end 6203; permanently lubricated sealed ball bearings
• Rotation: Reversible
• Housing / Construction: Die-cast aluminum endshields with steel bearing inserts; rolled steel frame; cast aluminum conduit box
• Terminal: Terminal board provided for connections
• Brush Access: Brush access provided (oversize brushes)
• Certifications: UL recognized; CSA; CE
• Category: SCR DC Motors / Motors
• EAN / Barcode: 0691720006917
