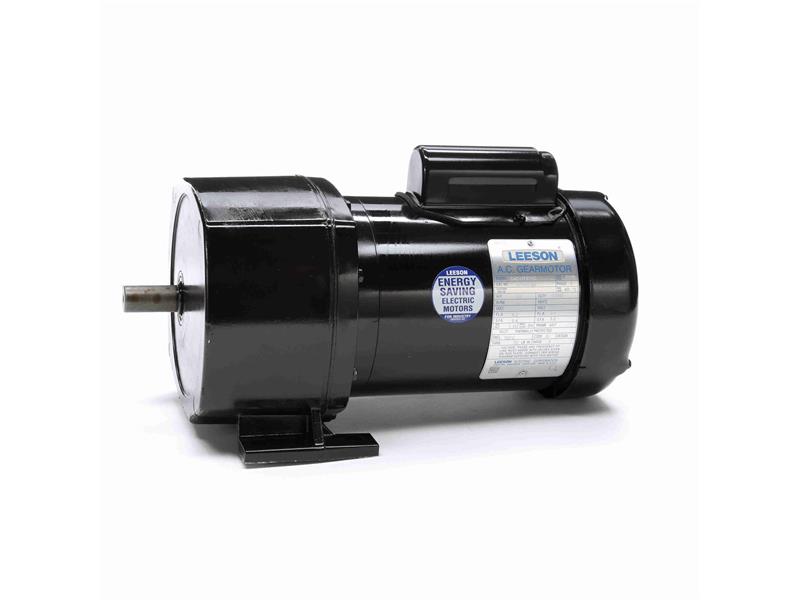

Regal Rexnord 107007.00 Gear Motor 1/3 HP 288 RPM 6:1 C4C17FZ31

Product Description

Regal Rexnord 107007.00 is a P1100 series parallel shaft gear motor with a TEFC enclosure. It delivers 1/3 HP (0.25 kW) through a 6:1 reduction for an output speed of 288 RPM and nominal torque of 70 lb-in. The motor accepts 115/208-230 V, single-phase, 60 Hz input with full-load amps 6.2/3.1 and uses a capacitor-start design for FHP operation. Output shaft is 3/4" keyed.

• Output: 1/3 HP (0.25 kW), 288 RPM, 6:1 gear ratio, 70 lb-in torque
• Electrical: 115/208-230 V, single phase, 60 Hz; full-load amps 6.2/3.1; capacitor-start
• Construction: P1100 parallel shaft design, TEFC enclosure, 3/4" keyed output shaft; die cast aluminum housing with AGMA class 9 gearing

Product Highlights

P1100 series TEFC parallel shaft gearmotor — 1/3 HP, 6:1 ratio, 288 RPM, 70 lb-in torque, 3/4" keyed shaft

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 107007.00

Technical Specifications

• Brand: Regal Rexnord
• Manufacturer: Regal Rexnord / Leeson Electric Co
• Manufacturer Part Number: 107007.00
• Alternate Part Number: C4C17FZ31
• Model: P1100
• Design: Parallel shaft
• Input Power (HP): 1/3
• Output Power (kW): 0.25
• Output Speed (RPM): 288
• Gear Ratio: 6:1
• Output Torque (lb-in): 70
• Input Voltage: 115/208-230 V
• Phase: Single phase
• Frequency: 60 Hz
• Full Load Amps: 6.2/3.1
• Starting Method: Capacitor-start
• Enclosure: TEFC (Totally enclosed fan cooled)
• Output Shaft: 3/4" keyed
• Overhung Load (lb): 400
• Weight: 29.00 lbs
• Housing Material: Die cast aluminum
• AGMA Rating: Class 9
• HS Code: 8501.40.4020
• UPC: 691720006351
