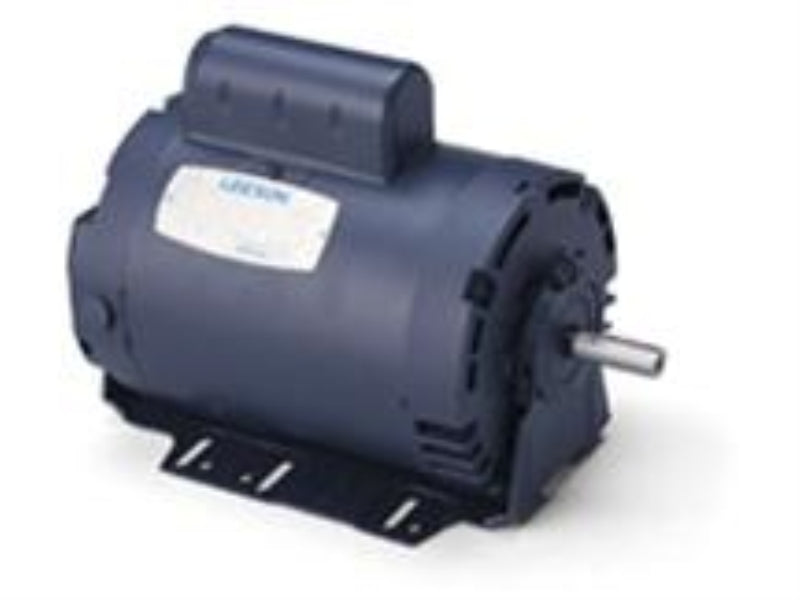

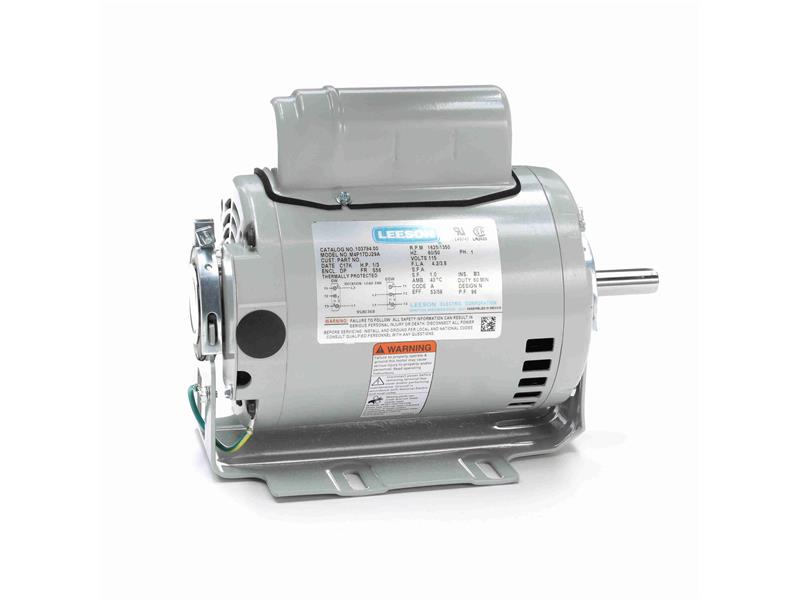

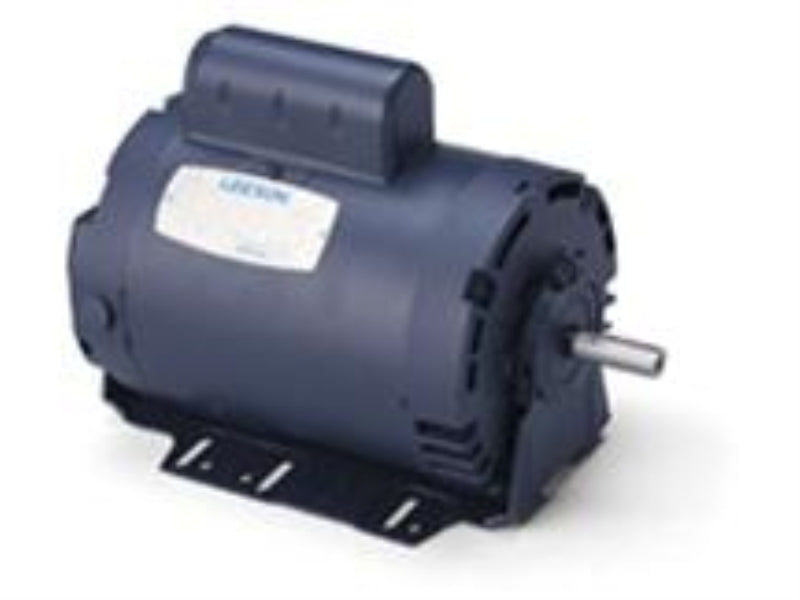

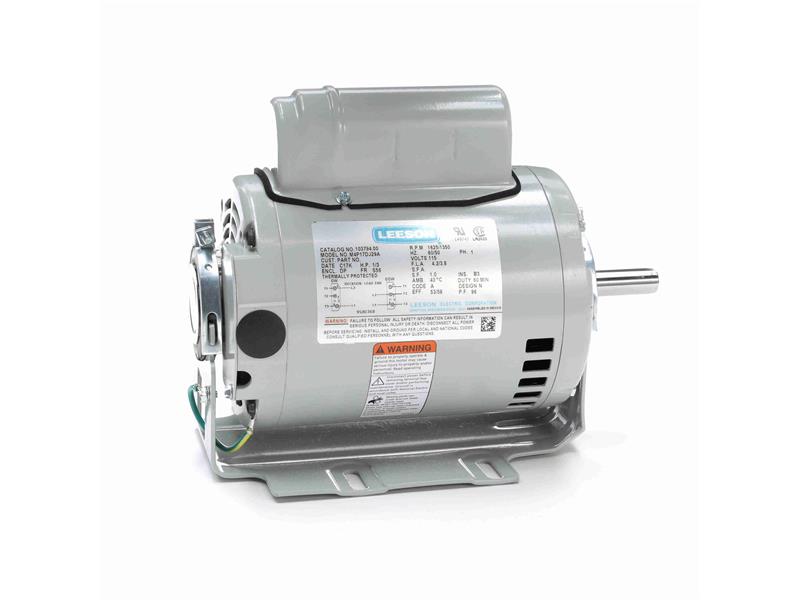

Regal Rexnord 103794.00 115 V 1/3 HP Motor (1625 RPM)

Product Description

The Regal Rexnord 103794.00 is a 115 V, single-phase instant-reversing electric motor rated at 1/3 HP and 1625 RPM. It is intended for frequent reversing applications such as parking gates, doors, and slide gates and uses instant plug-reversing with a simple three-wire connection. The motor provides starting torque of approximately 150% of full load, mounts on a resilient base (S56 frame), and features a drip-proof enclosure.

• 115 V single-phase motor rated at 1/3 HP and 1625 RPM
• Instant plug-reversing with simple three-wire connection; suitable for frequent reversing service
• Starting torque approximately 150% of full load; resilient base mount (S56); drip-proof enclosure

Product Highlights

Instant-reversing 115 V single-phase motor for gates and doors

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 103794.00

Technical Specifications

• Brand: Regal Rexnord (Leeson)
• Manufacturer Part Number: 103794.00
• Model Number: M4P17DJ29A
• Input Voltage: 115 V
• Phase: Single-phase (1 PH)
• Frequency: 60 Hz
• Output Power (HP): 1/3 HP
• Output Power (kW): 0.25 kW
• Speed (RPM): 1625 RPM
• Starting Torque: Approximately 150% of full load
• Frame: S56
• Mounting Type: Resilient base
• Enclosure: DP (drip proof)
• Application: Instant-reversing gates, doors, slide gates
• UPC: 691720089293
