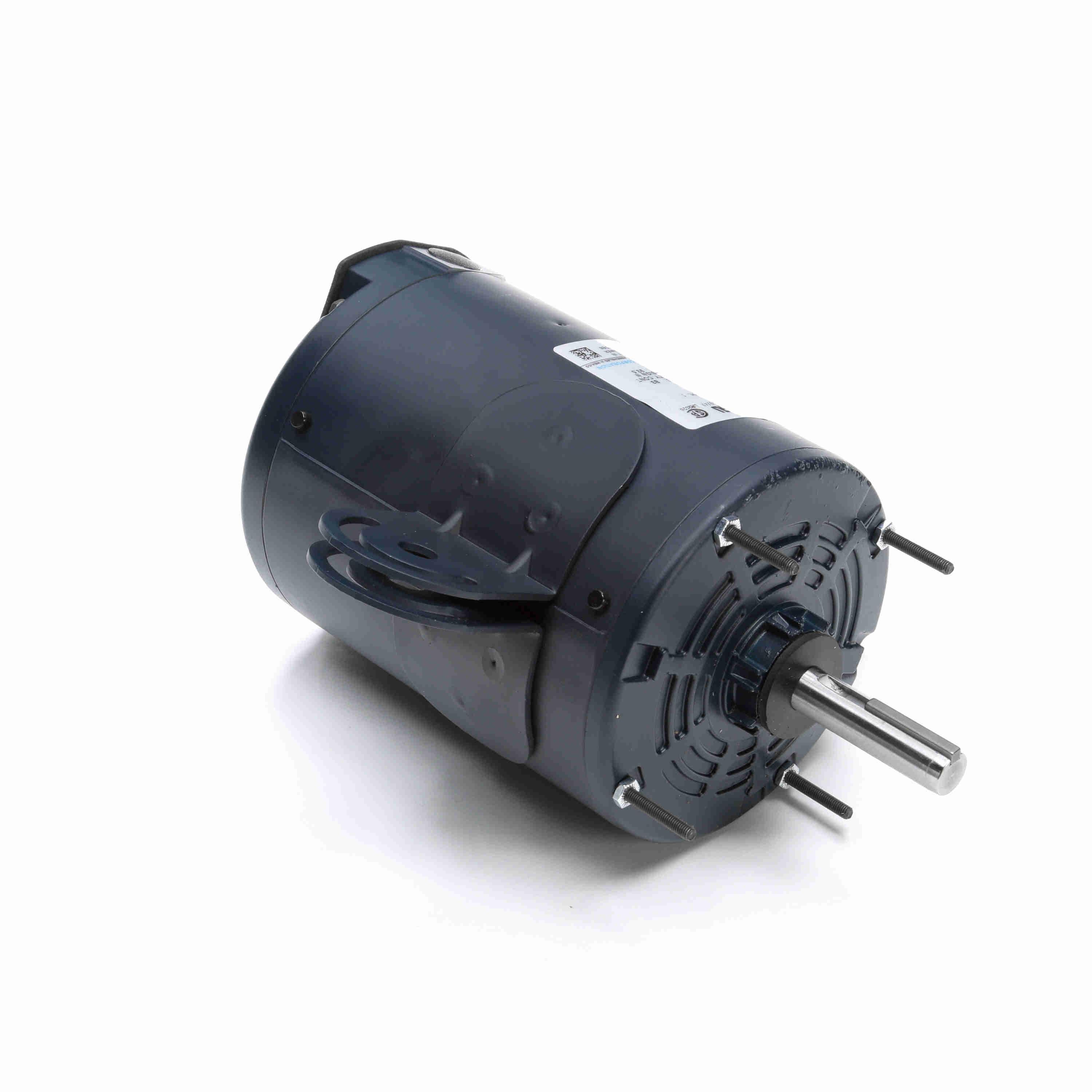

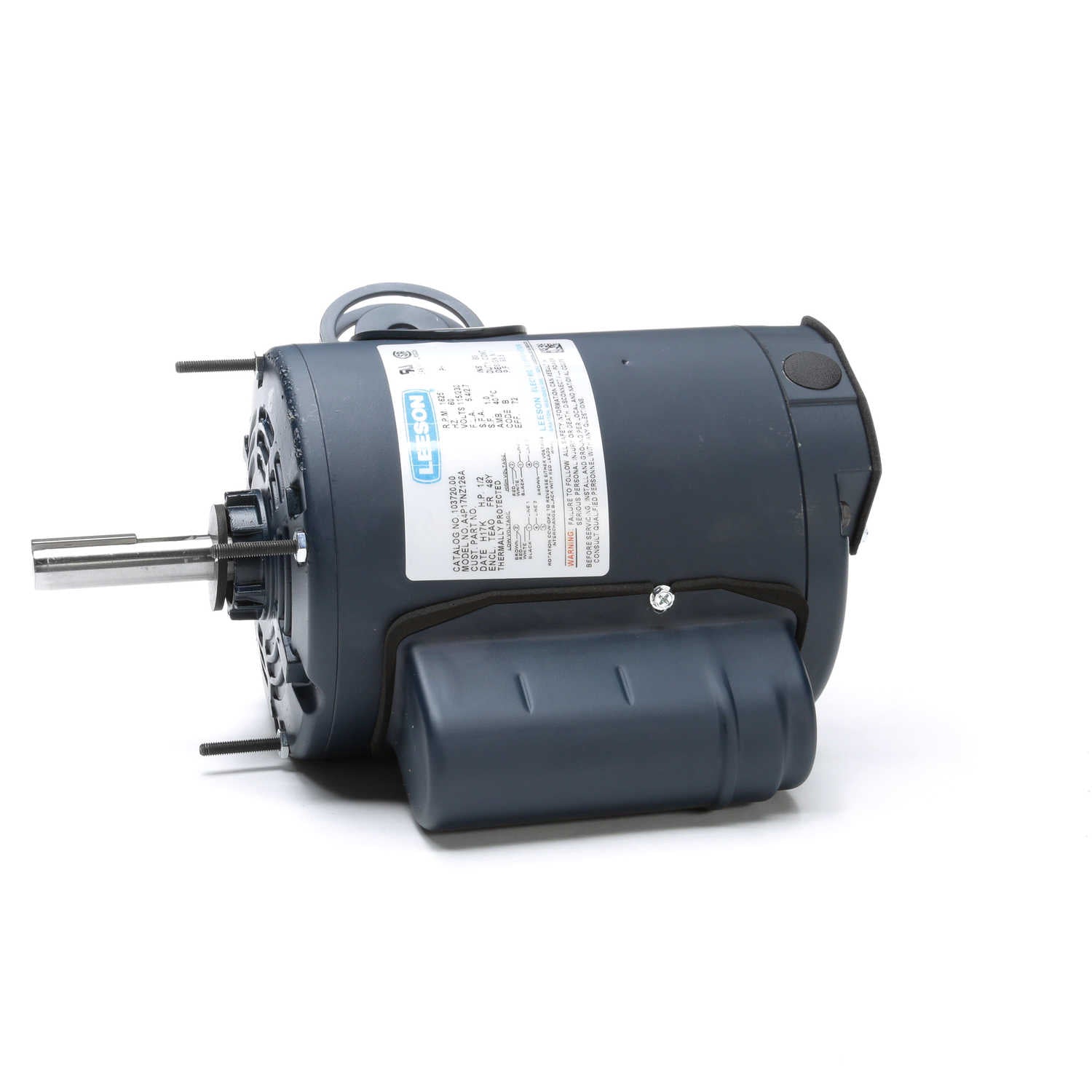

Regal Rexnord 103720.00 Pedestal Fan Motor 1/2 HP (48Y Frame) A4P17NZ126A

Product Description

The Regal Rexnord 103720.00 is a single-phase, 1/2 HP electric motor rated for 115/230 V and 1625 RPM, configured for pedestal or yoke-mounted fan applications. It uses a TEAO (totally enclosed, air over) enclosure and a 48Y NEMA frame. The motor features a 5/8 inch shaft, 72% full-load efficiency, and dual-voltage operation for HVAC and condenser fan uses.

• Single-phase 115/230 V dual-voltage, 1/2 HP, 1625 RPM; 60 Hz
• Totally enclosed air over (TEAO) enclosure, 48Y NEMA frame, yoke/pedestal (round swing arm) mount
• Shaft 0.625 in diameter, full-load efficiency 72%, full-load amps 5.4/2.7 A

Product Highlights

Dual-voltage pedestal fan motor, TEAO enclosure, 48Y frame, 0.5 HP, 1625 RPM

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 103720.00

Technical Specifications

• Brand: Regal Rexnord
• Manufacturer: Regal Rexnord (Leeson)
• MPN: 103720.00
• Replacement MPN: A4P17NZ126A
• Product Type: Electric motor / Pedestal fan motor
• Application: Pedestal fan, condenser fan, general purpose HVAC
• Output Power: 0.5 HP
• Output kW: 0.37 kW
• Input Voltage: 115/230 V
• Frequency: 60 Hz
• Phase: Single phase
• Speed (RPM): 1625 RPM
• Frame Size: 48Y
• Frame Profile: NEMA
• Enclosure: TEAO (Totally Enclosed Air Over)
• Enclosure IEC: IP43
• Full Load Amps: 5.4/2.7 A
• Current Type: AC
• Poles: 4 poles
• Shaft Diameter: 0.625 in (5/8 in / 15.875 mm)
• Overall Length: 11.06 in (280.924 mm)
• Weight: 25 lb (11.34 kg)
• Efficiency Full Load: 72%
• Service Factor: 1
• Bearings: Ball bearings, permanently lubricated, sealed
• Rotation: Selective CCW
• Mount: Yoke / pedestal (round swing arm) mount
• Max Ambient Temperature: 40 °C
• Insulation Class: Class B
• Construction: Rolled steel
• Variable Torque Ratio: 10:1
• Certifications: UL listed, CSA certified
• UPC: 691720021873
