Product Description

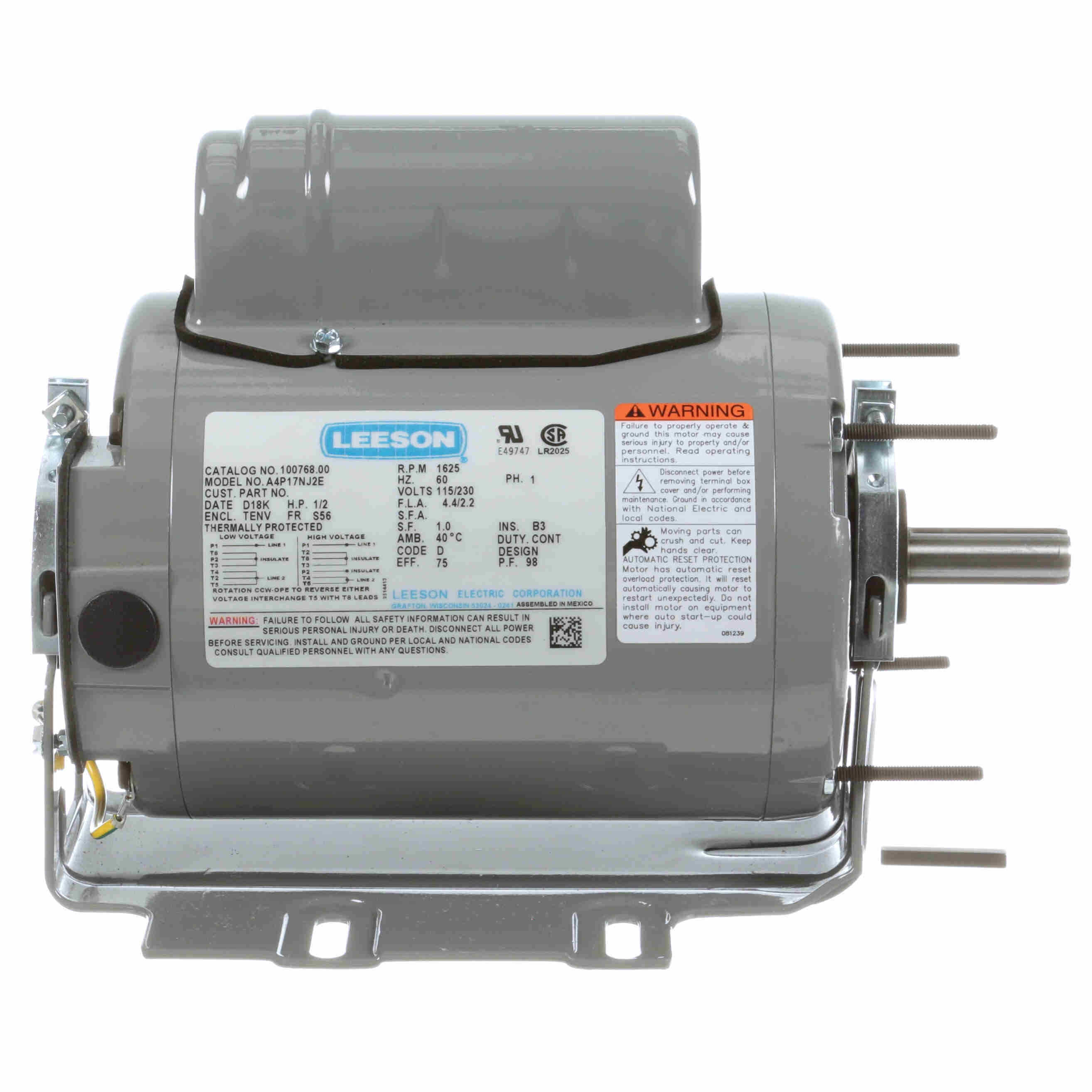

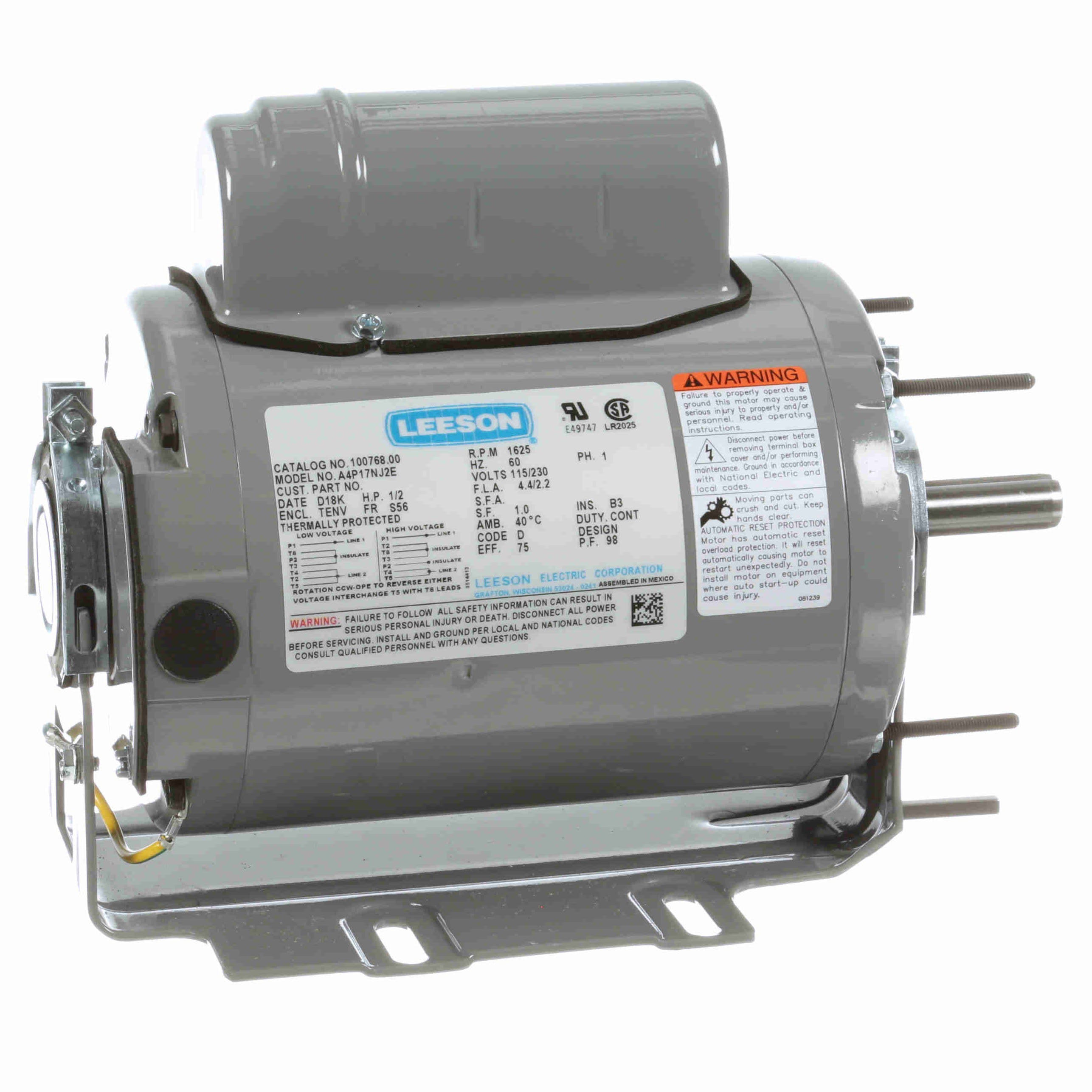

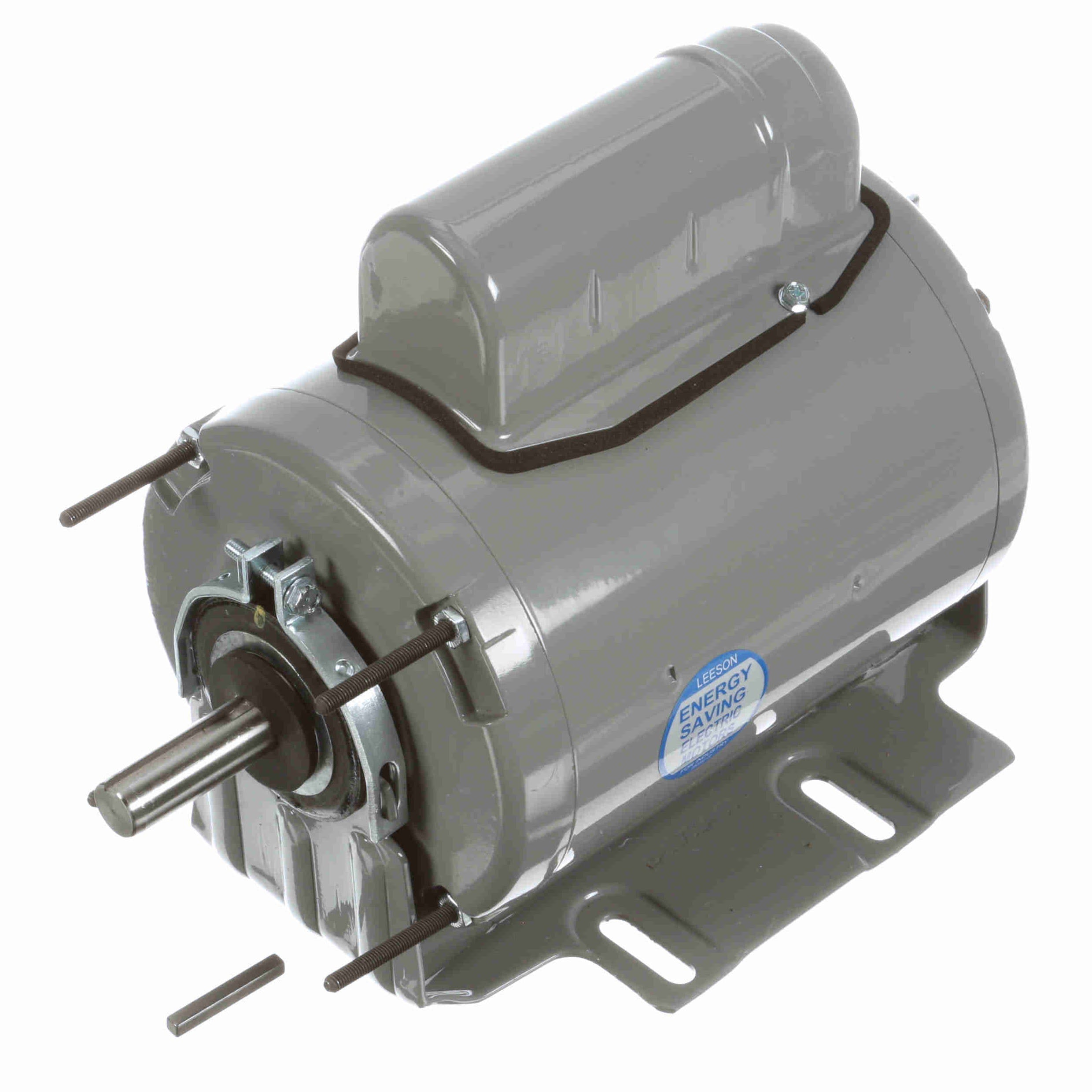

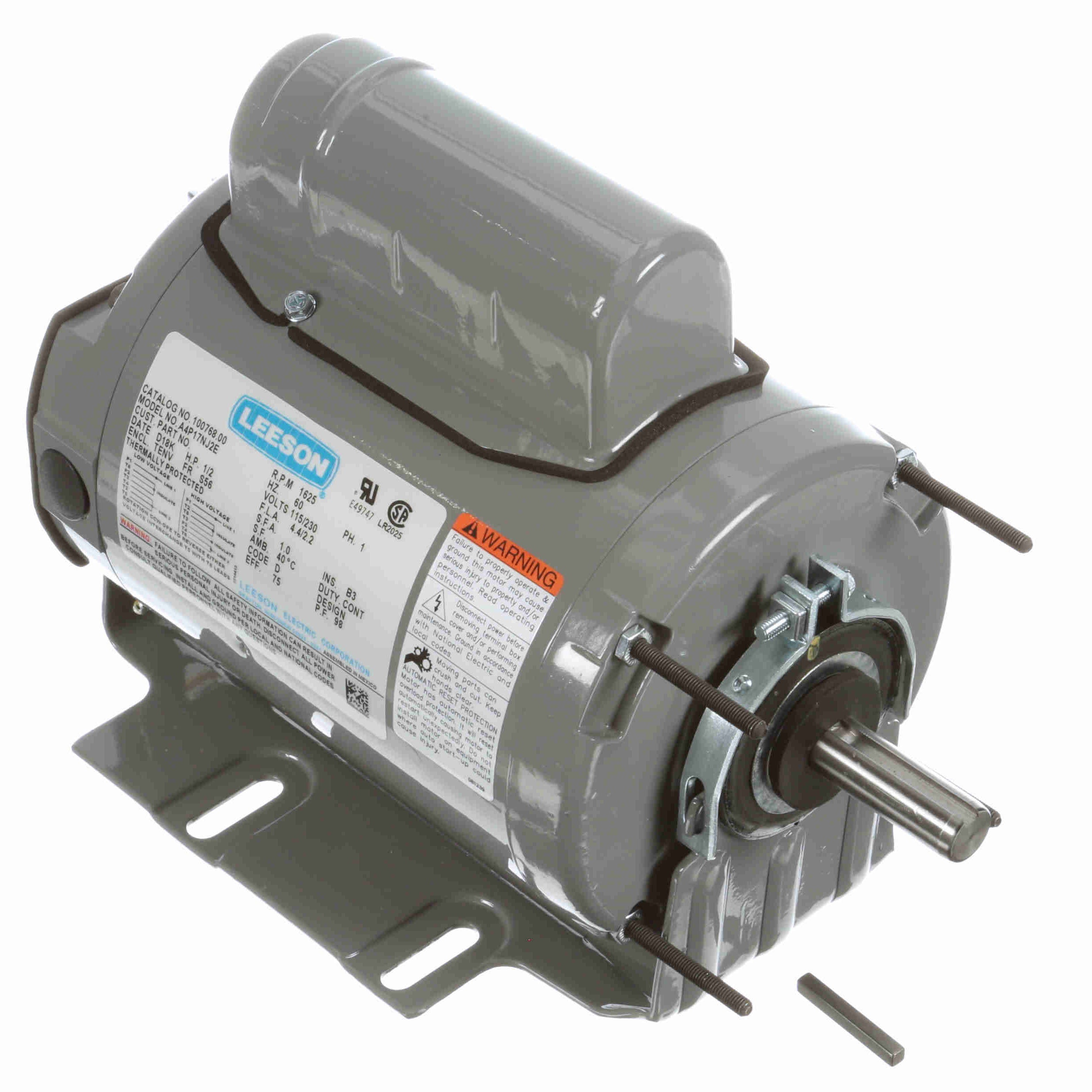

Regal Rexnord 100768.00 is a Leeson 1/2 HP (0.37 kW) single-phase electric motor rated 115/230 V and 1625 RPM for fan and blower applications. It uses a permanent split capacitor (PSC) variable-torque design in a TEAO (time-enclosed, air-over) enclosure, mounted on a resilient base with an S56 frame and a 5/8 in keyed output shaft. The motor includes UL/CSA-recognized automatic reset overload protection and is rated for 60 Hz service.
- Dual voltage PSC motor: 115/230 V single phase, 1/2 HP, 1625 RPM, 60 Hz
- S56 frame resilient base, TEAO air-over cooling, 5/8 in keyed output shaft with slinger
- UL/CSA-recognized automatic reset overload protection; intended for fan-mounted HVAC applications
Product Highlights
1/2 HP PSC fan motor, 115/230 V, 1625 RPM, S56 frame, resilient base, TEAO, 5/8 in keyed shaft, UL/CSA overload
Product Information
Standard Information
-
Brand: REGAL REXNORD
-
Manufacturer Part Number: 100768.00
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Regal Rexnord (Leeson)
-
MPN: 100768.00
-
Model ID: A4P17NJ2E
-
Application: Fan and blower / HVAC
-
Output Power: 0.5 HP (0.37 kW)
-
Output Speed: 1625 RPM
-
Input Voltage: 115/230 V
-
Phase: Single phase
-
Frequency: 60 Hz
-
Electrical Type: Permanent split capacitor (PSC), variable torque
-
Enclosure: TEAO (time-enclosed, air-over)
-
Frame: S56 (S56H)
-
Mounting Type: Resilient base (F1)
-
Shaft Diameter: 0.625 in (5/8 in)
-
Shaft Extension: 1.88 in
-
Shaft Type: T-type keyed with slinger
-
Bearings: Drive end: 6203; Opposite drive end: 6203
-
Overload Protection: Automatic reset overload (UL and CSA recognized)
-
Service Factor: 1.0
-
Duty: Continuous
-
Insulation Class: B
-
Ambient Temperature Rating: 40 C
-
Poles: 4
-
Frame Material: Rolled steel
-
Suitability Notes: Must be mounted in airstream; not suitable for belt-driven fan applications due to low starting torque
