Regal Rexnord 096068.00 Gear Motor 0.25 HP (42YFR Frame) C42T17FZ31A

Product Description

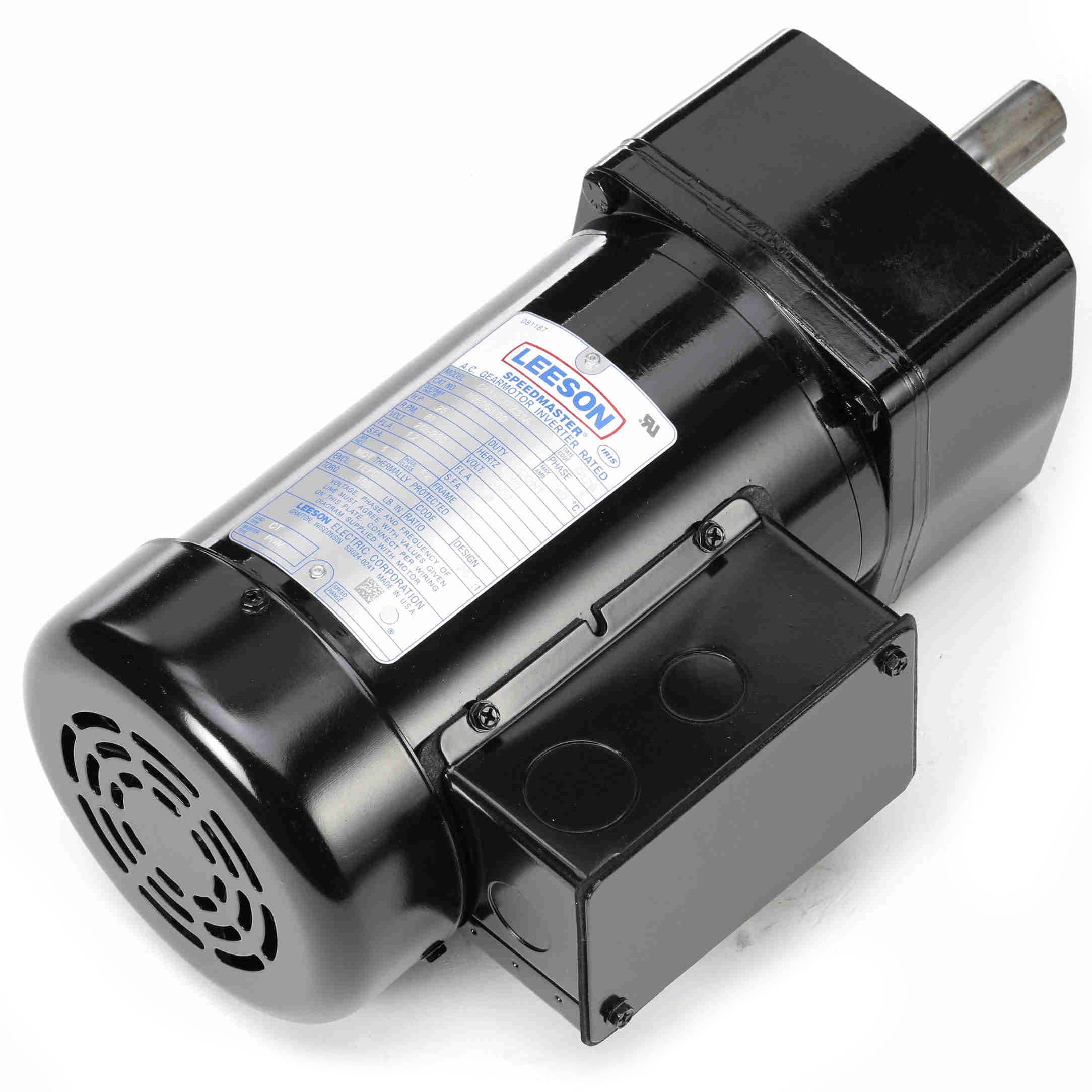

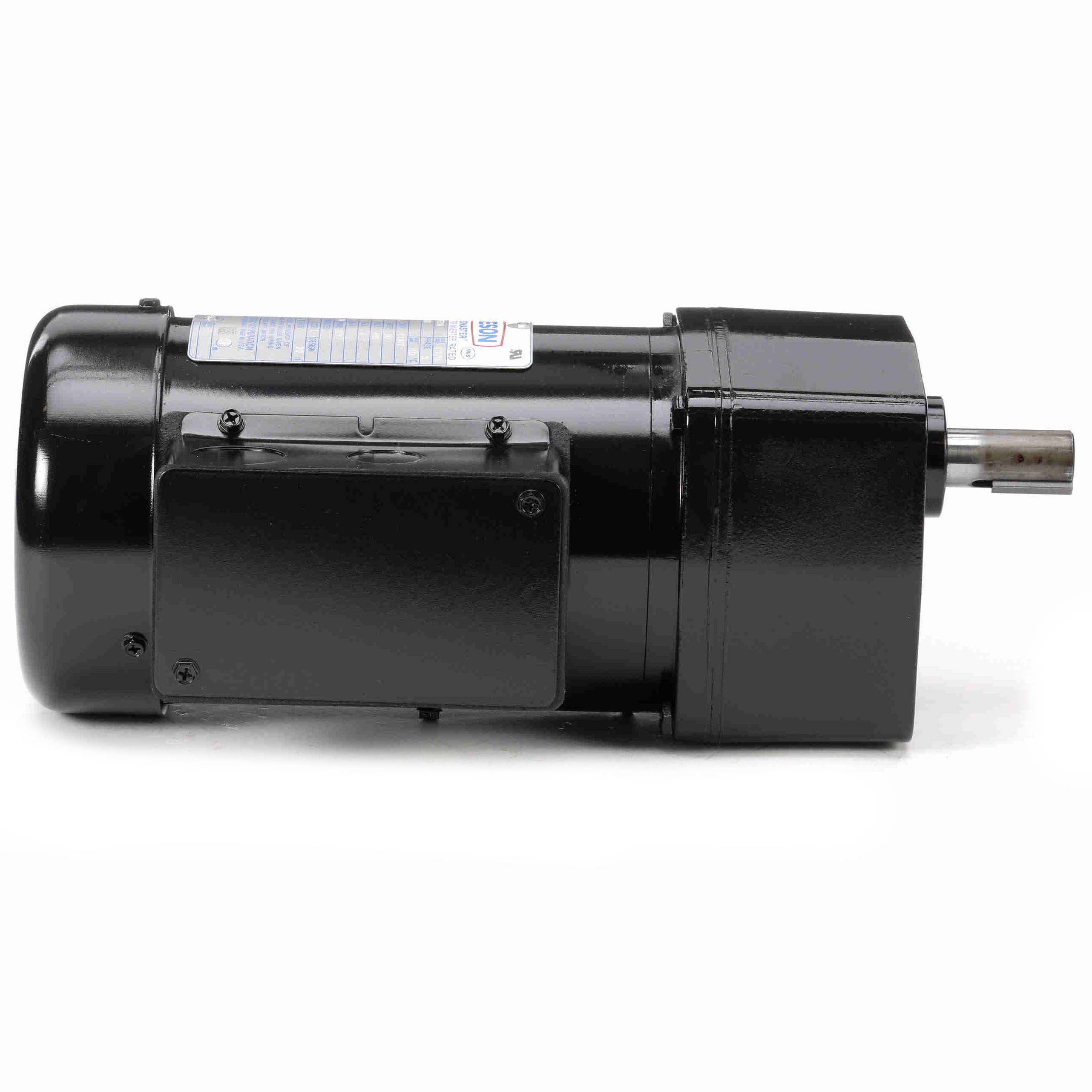

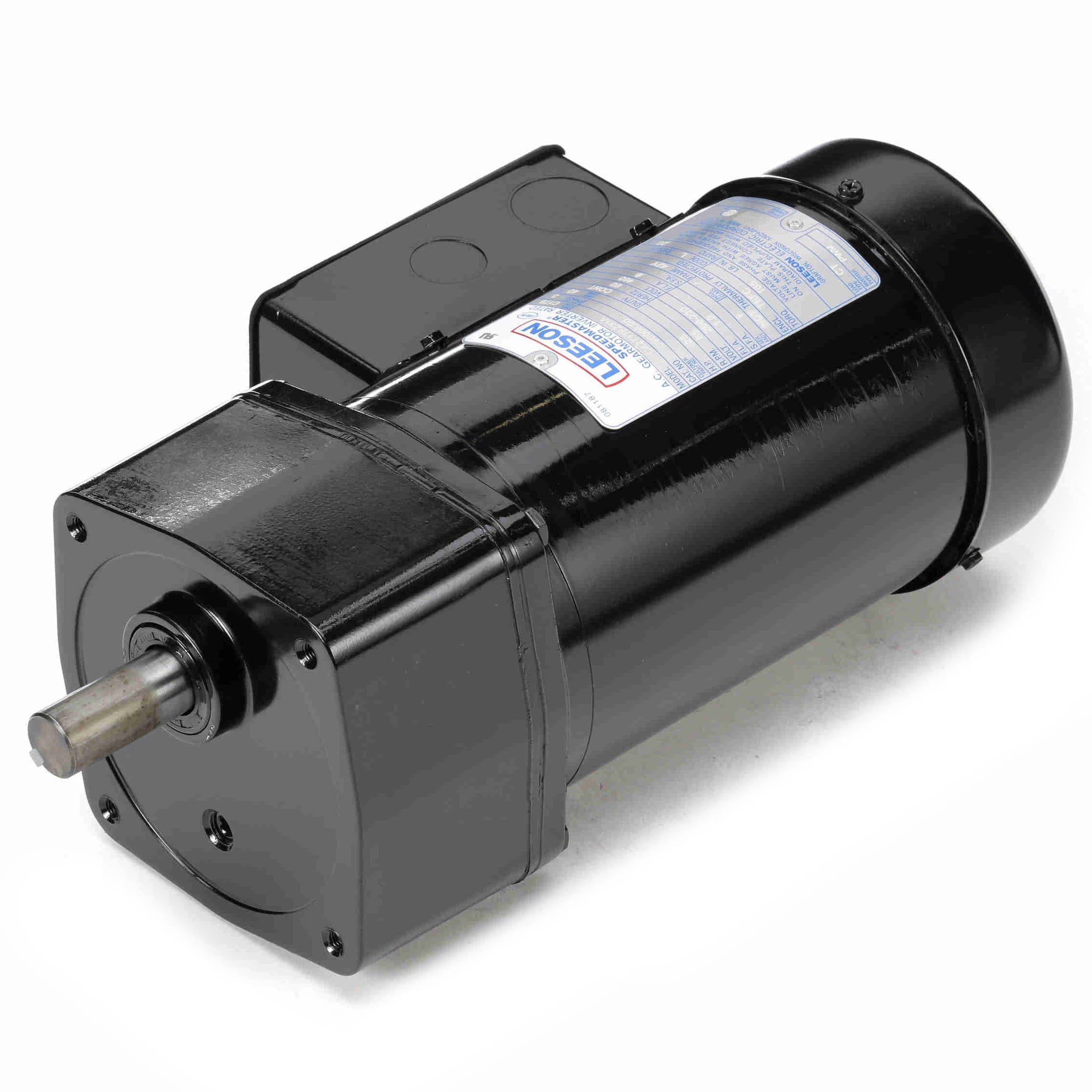

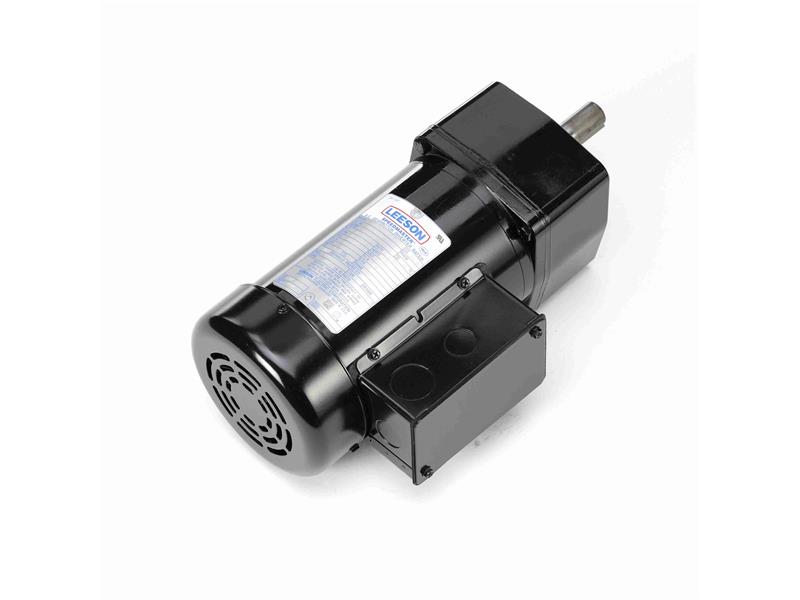

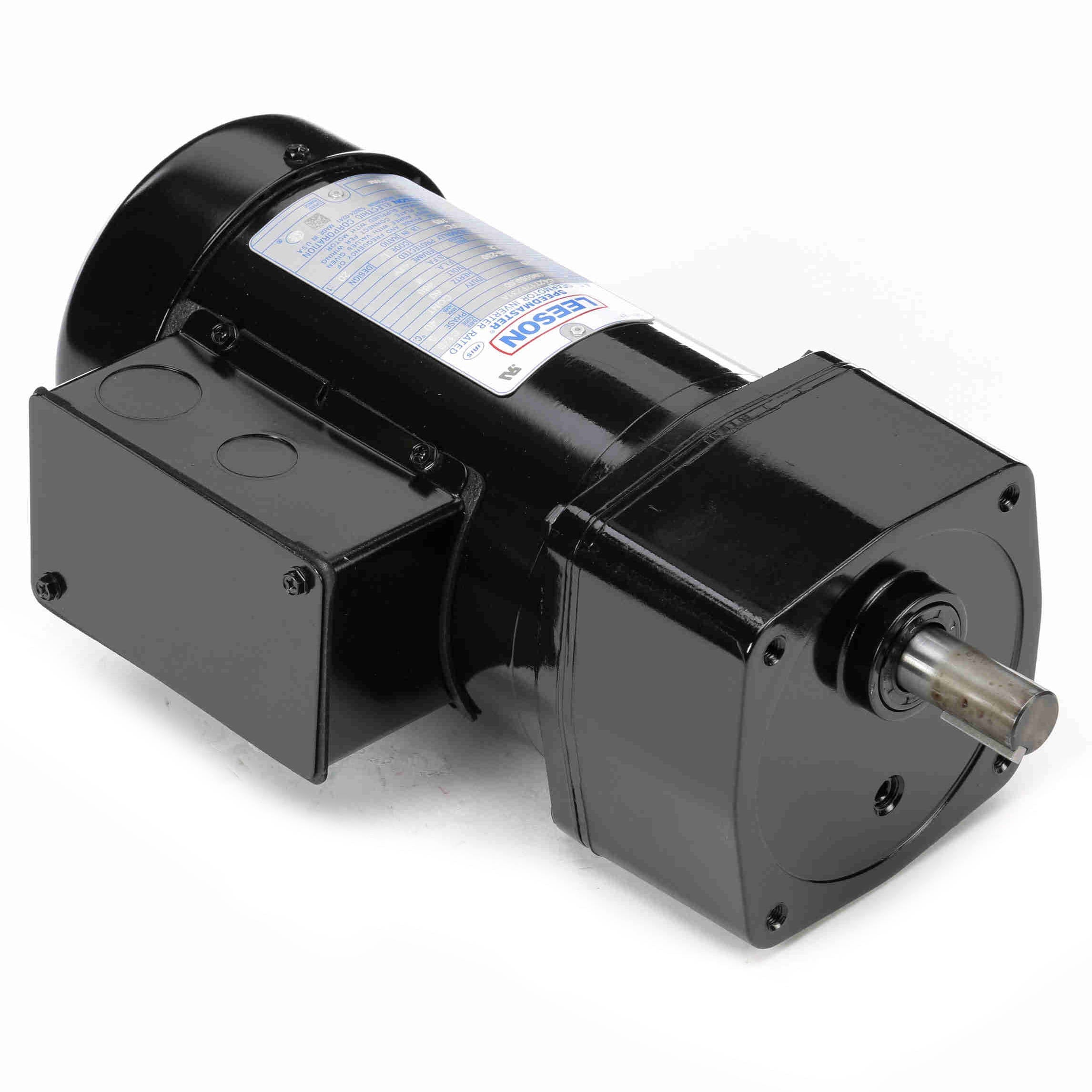

Regal Rexnord 096068.00 is a PE350 series gear motor rated 0.25 HP and 85 RPM designed for three-phase 60 Hz operation. The unit features a 42YFR frame, TEFC enclosure, 208-230/460 V input, continuous duty, 1.0 service factor and inverter-rated insulation (IRIS) for VFD protection. It is intended for general industrial and VFD-driven applications where a keyed parallel output shaft and enclosed motor construction are required.

• PE350 series, 0.25 HP, 85 RPM, three-phase 208-230/460 V, 60 Hz, continuous duty
• Inverter rated insulation system (IRIS) with TEFC enclosure and 1.0 service factor
• Parallel shaft with 3/4 in keyed output, needle bearings in gearbox, steel conduit box

Product Highlights

PE350 series 0.25 HP gear motor; 85 RPM; inverter rated TEFC design; 42YFR frame; 3-phase 208-230/460 V; keyed 3/4 in output

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 096068.00

Technical Specifications

• Manufacturer: Regal Rexnord (Leeson Electric Co)
• MPN: 096068.00
• Model/Series: PE350
• Identifier/Spec Number: C42T17FZ31A
• Design: Parallel shaft gearmotor
• Output Power: 0.25 HP
• Output Power (kW): 0.19 kW
• Speed: 85 RPM
• Gear Ratio: 20:1
• Torque: 165 lb-in
• Overhung Load: 327 lb
• Frame: 42YFR
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Input Voltage: 208-230/460 V AC
• Phase: 3
• Frequency: 60 Hz
• Current (Full Load): 1.2/0.60 A
• Service Factor: 1.0
• Duty: Continuous
• Ambient Temperature Rating: 40 C
• Insulation Class: F
• Special: Inverter rated; IRIS insulation system
• Shaft Type: Parallel, keyed
• Shaft Diameter: 0.750 in (3/4 in)
• Shaft Extension: 1.625 in
• Bearings (Drive End): 6203
• Bearings (Opposite Drive End): 6201
• Gearbox Bearings: Needle bearings
• Conduit Box: Steel conduit box standard
• Overall Length: 13.07 in
• Frame Length: 6.00 in
• Rotation: Reversible
• Thermal Protection: No
• UL: Recognized
• CSA: Yes
• CE: No
• Mounting: Special
• KVA Code: L
• Type: Electric motor / gearmotor
