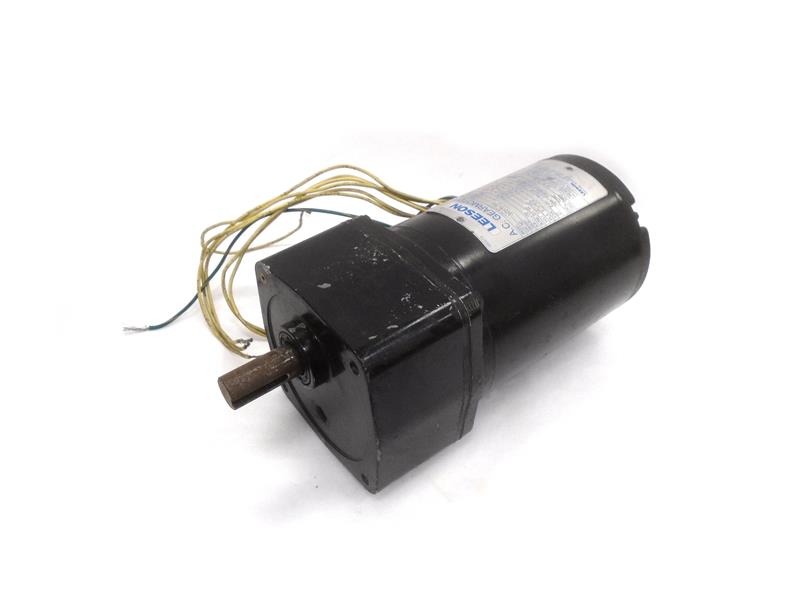

Regal Rexnord 096003.00 Gearmotor 0.08 HP (PE350) C42P17NZ4B

Product Description

Regal Rexnord 096003.00 is a PE350 series sub-fractional AC gearmotor (model C42P17NZ4B) with a 91:1 gear ratio and an output of approximately 19 RPM. The unit provides 0.08 HP and 250 lb-in torque, accepts 115/230 V single-phase input at 60/50 Hz, and features a totally enclosed non-ventilated enclosure. It includes a run capacitor and a 3/4 inch keyed output shaft for mechanical coupling.

• Electrical: 115/230 V input, single-phase, 60/50 Hz; run capacitor included; full load amps 1.3/0.65
• Mechanical: 0.08 HP, 250 lb-in torque, 91:1 gear ratio, ~19 RPM output; 3/4 in keyed hardened steel output shaft
• Construction: PE350 parallel shaft design, die cast aluminum gear housing, TENV enclosure, oversized bearings and AGMA class 9 gearing

Product Highlights

Sub-fractional 0.08 HP PE350 gearmotor; 91:1 ratio, ~19 RPM and 250 lb-in torque; 115/230 V single-phase TENV; parallel shaft with 3/4 in keyed output; model C42P17NZ4B.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 096003.00

Technical Specifications

• Manufacturer: Regal Rexnord
• Manufacturer Part Number: 096003.00
• Model/Spec Number: C42P17NZ4B
• Series: PE350
• Design: Parallel shaft (gearmotor)
• Input Voltage: 115/230 V
• Phase: Single-phase
• Frequency: 60/50 Hz
• Input Power (HP): 0.08 HP
• Output Power (kW): 0.06
• Output RPM: Approximately 19 RPM
• Gear Ratio: 91:1
• Output Torque: 250 lb-in
• Output Shaft: 3/4 in keyed hardened steel
• Enclosure Rating: TENV (Totally enclosed non-ventilated)
• Frame: L42Y
• Full Load Amperage: 1.3/0.65 A
• Overhung Load Capacity: 374 lb
• Housing Material: Die cast aluminum
• Gearing Rating: AGMA class 9
• Run Capacitor: Included
• Mounting Type: Multi-angle
• Weight: 24.00 lbs
• HS Code: 8501.51.4020
• UPC: 691720000793
