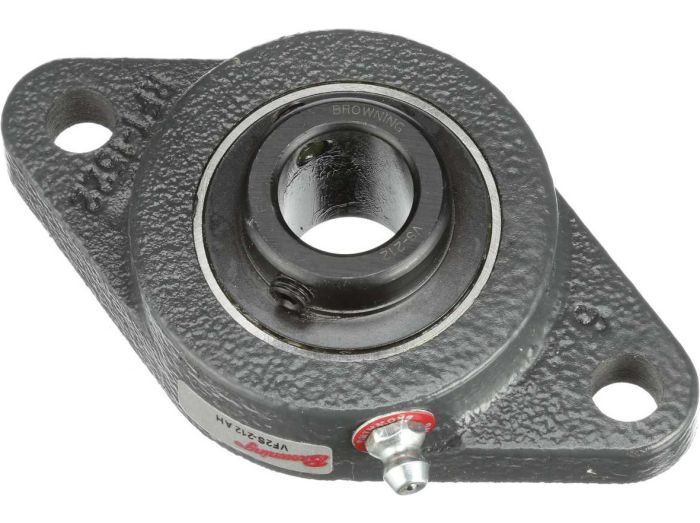

Regal Beloit vf2s-212ah Two Bolt Flange Bearing 0.75 Inch Shaft Diameter Set Screw Locking Cast Iron

Product Description

The Regal Beloit VF2S-212AH is a two bolt flange bearing designed for reliable shaft support in industrial and mechanical drive applications. Part of the Browning Bearings family series, this unit is built to handle radial loads in a wide range of equipment including HVAC systems, conveyor assemblies, pumps, fans, and blowers. It accepts a 0.75 inch shaft diameter, making it a common fit for many standard motor and drive shaft configurations in the 0.5 to 0.99 inch shaft range. The cast iron housing provides a sturdy, corrosion-resistant frame that holds up well in demanding environments. The bearing insert is made from 52100 steel, a high-carbon chromium alloy widely used in bearing manufacturing for its hardness and fatigue resistance. Locking is achieved through a set screw mechanism, which allows the bearing to grip the shaft securely without requiring special tools or keyways. This is a practical choice for maintenance technicians and installers who need a dependable, straightforward locking method. The single lip contact seal with flinger helps keep contaminants out and retains lubrication, extending service life in dusty or wet environments. The two bolt flange mounting pattern simplifies installation on flat surfaces, brackets, or mounting plates. With a net weight of 0.07 pounds, this is a compact, lightweight unit that is easy to handle and position. HVAC technicians, mechanical contractors, and industrial maintenance professionals rely on Browning flange bearings for their consistent quality and broad compatibility. Whether you are replacing a worn bearing or building out a new mechanical assembly, the VF2S-212AH delivers dependable performance at a standard shaft size.

• Two bolt flange design for easy flat surface mounting on brackets and support plates
• Set screw locking mechanism provides secure shaft grip without keyways or special tooling
• Single lip contact seal with flinger protects against contaminants and retains lubrication for extended service life

Product Highlights

The Regal Beloit VF2S-212AH is a cast iron two bolt flange bearing with a 0.75 inch shaft diameter, set screw locking, and a sealed 52100 steel insert built for dependable performance in industrial and HVAC mechanical drive applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: VF2S-212AH

Technical Specifications

• Bearing Type: Two Bolt Flange
• Shaft Diameter: 0.75 inches
• Shaft Range: 0.5 to 0.99 inches
• Locking Method: Set Screw
• Seal Type: Single Lip Contact Seal with Flinger
• Housing Material: Cast Iron
• Insert Material: 52100 Steel
• Family Series: Browning Bearings
• Net Weight: 0.07 pounds
