Product Description

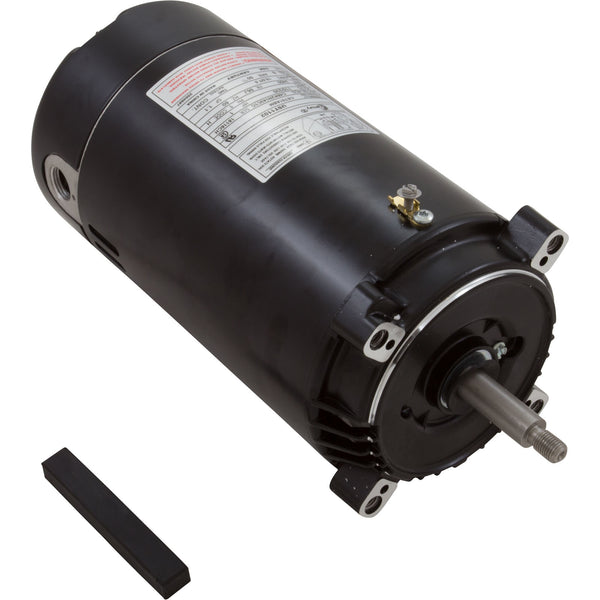

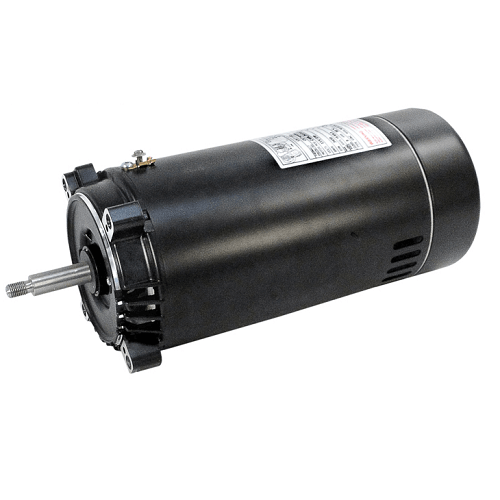

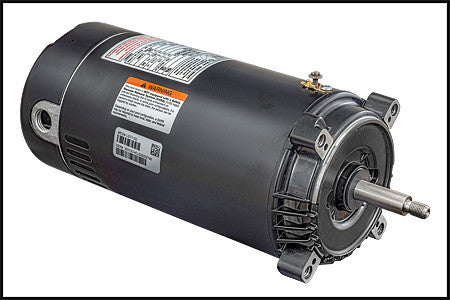

The Regal Beloit UST1152 AO Smith Motor is a 1.5 HP, single-speed motor operating at 115/230V. Designed for pool and spa pump applications, it features a 56J frame with a threaded shaft. This motor is suitable for residential use and ensures compatibility with various pump models.
- Threaded shaft for secure pump connection.
- Automatic overload protection.
- Open Drip Proof (ODP) enclosure.
Product Highlights
Reliable 1.5 HP motor for pool and spa pumps with a 56J frame and threaded shaft.
Product Information
Standard Information
-
Brand: REGAL BELOIT
-
Manufacturer Part Number: UST1152
-
Country of Origin: China
Technical Specifications
-
HP: 1.5 HP
-
Speed: Single
-
RPM: 3450 RPM
-
Volts: 115/230 V
-
Amps: 18.6/9.3 amp
-
Service Factor: 1.00
-
Frame: 56J
-
Shaft: Threaded
-
Overload Protector: Auto
-
Flange: Round
-
Voltage Rating: 115/230 V
-
Duty Cycle: Continuous
-
Motor Design: Capacitor Start
-
Full Load Amps: 18.6/9.3 A
-
Brand: Regal Beloit
-
Sub Brand: Century®
-
Standards Approvals: UL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341)
-
Ambient Temperature: 50 deg C
-
Shaft Design: Threaded
-
Motor Shaft Rotation: CCWPE
-
Phase: 1-Phase
-
Flange Material: Aluminum
-
Shaft Material: 303 Stainless Steel
-
Mounting Type: C-Face
-
Insulation Class: B
-
Efficiency Group: Standard
-
Type: Up-Rated, UAC
-
Shaft Diameter: 5/8 Inch
-
Frequency Rating: 60 Hz
-
Number of Speed: 1-Speed
-
Overall Length: 12.13 Inch
-
Diameter: 6-1/2 Inch
-
Shaft Length: 2-9/16 Inch
-
Motor Thermal Protection: Auto
-
Bearing Type: Sealed Ball
-
Enclosure Design: Open Dripproof
-
Horsepower: 1.5 HP
-
Motor Enclosure Type: Open Drip Proof
-
Motor Speed: 1-Speed
-
Motor Rating: Up-Rated
-
Replaces: 5212-0, 620049
-
Works With: Pool
-
Mount: Threaded
