Regal Beloit UST1102 AO Smith Motor 1 HP 115/230 Volt

Product Description

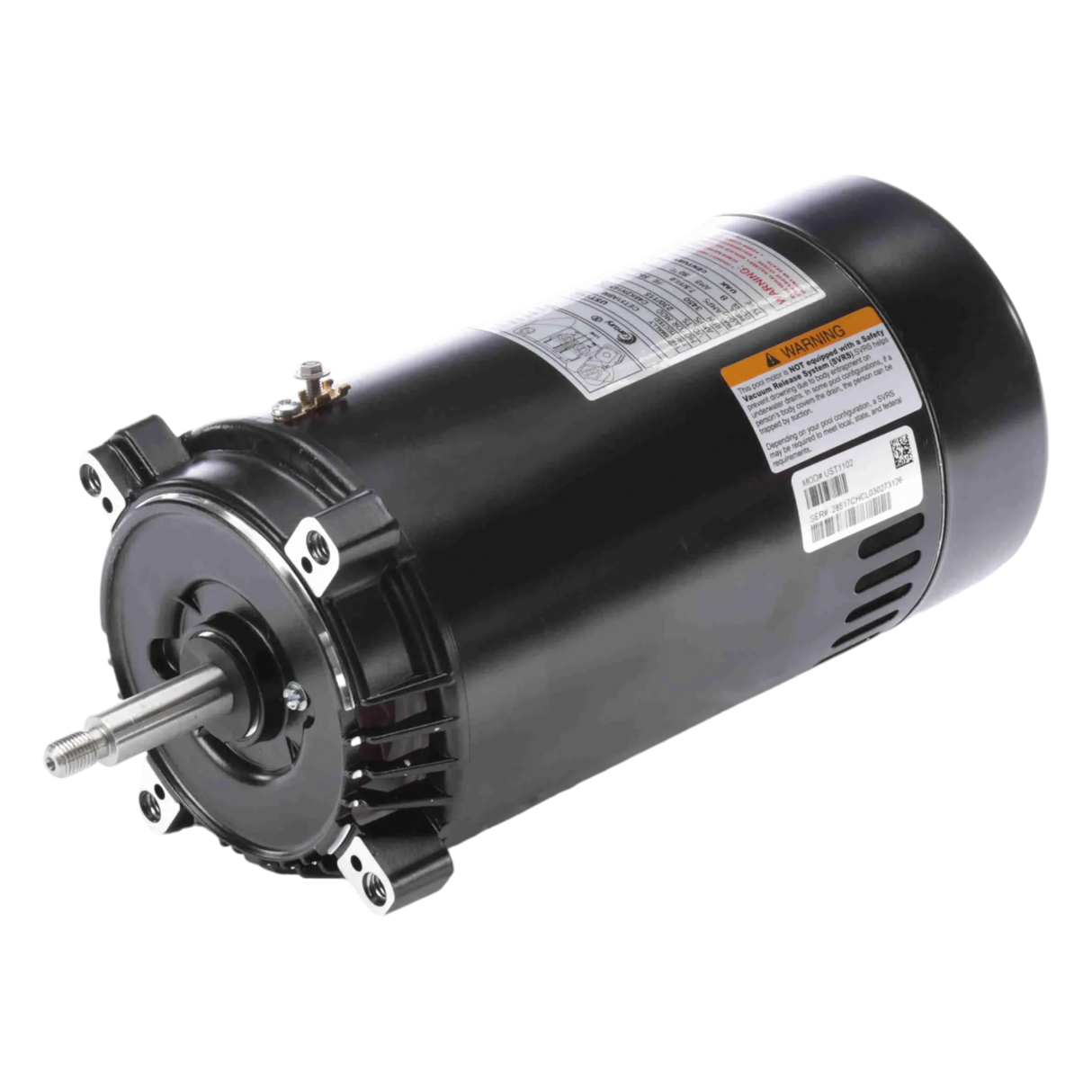

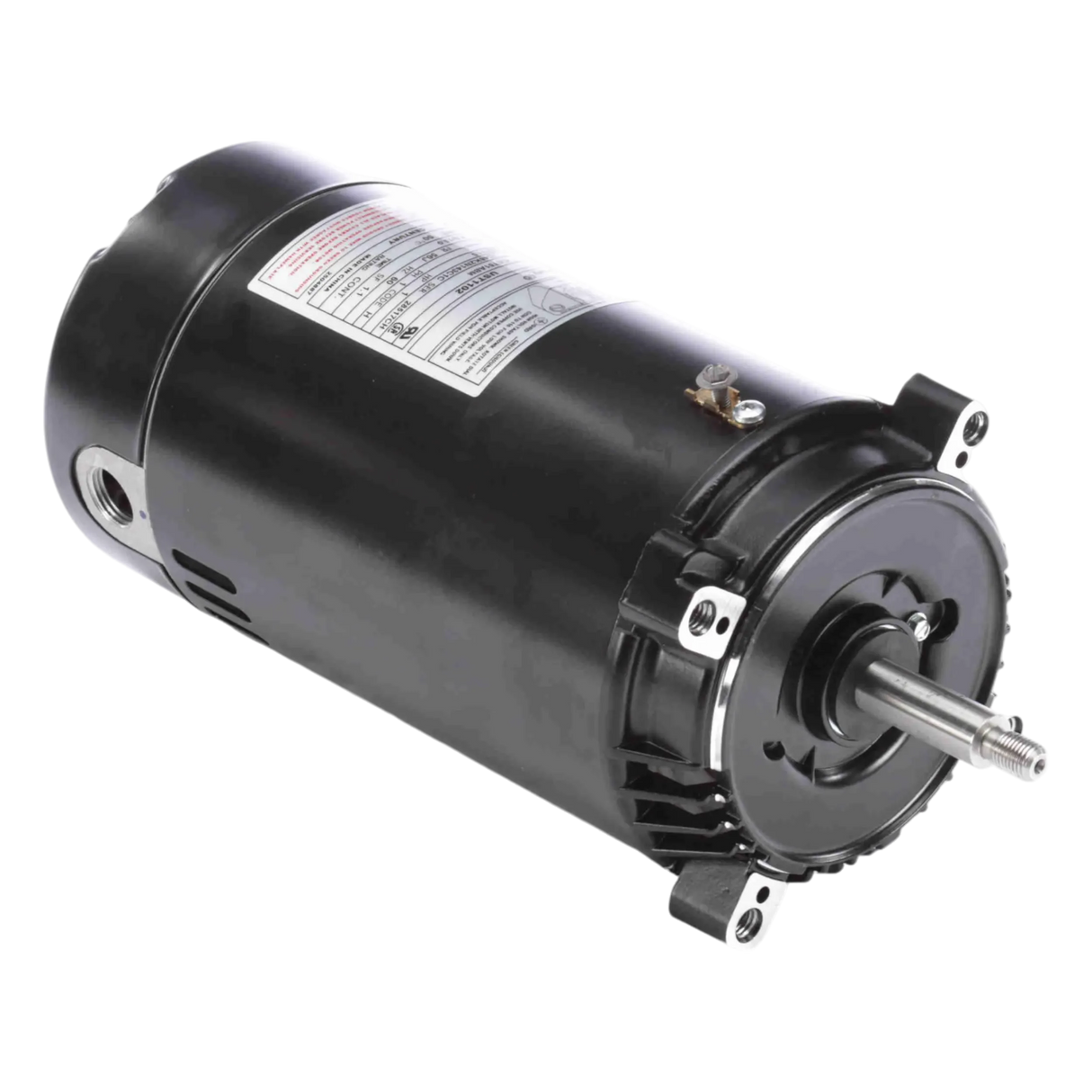

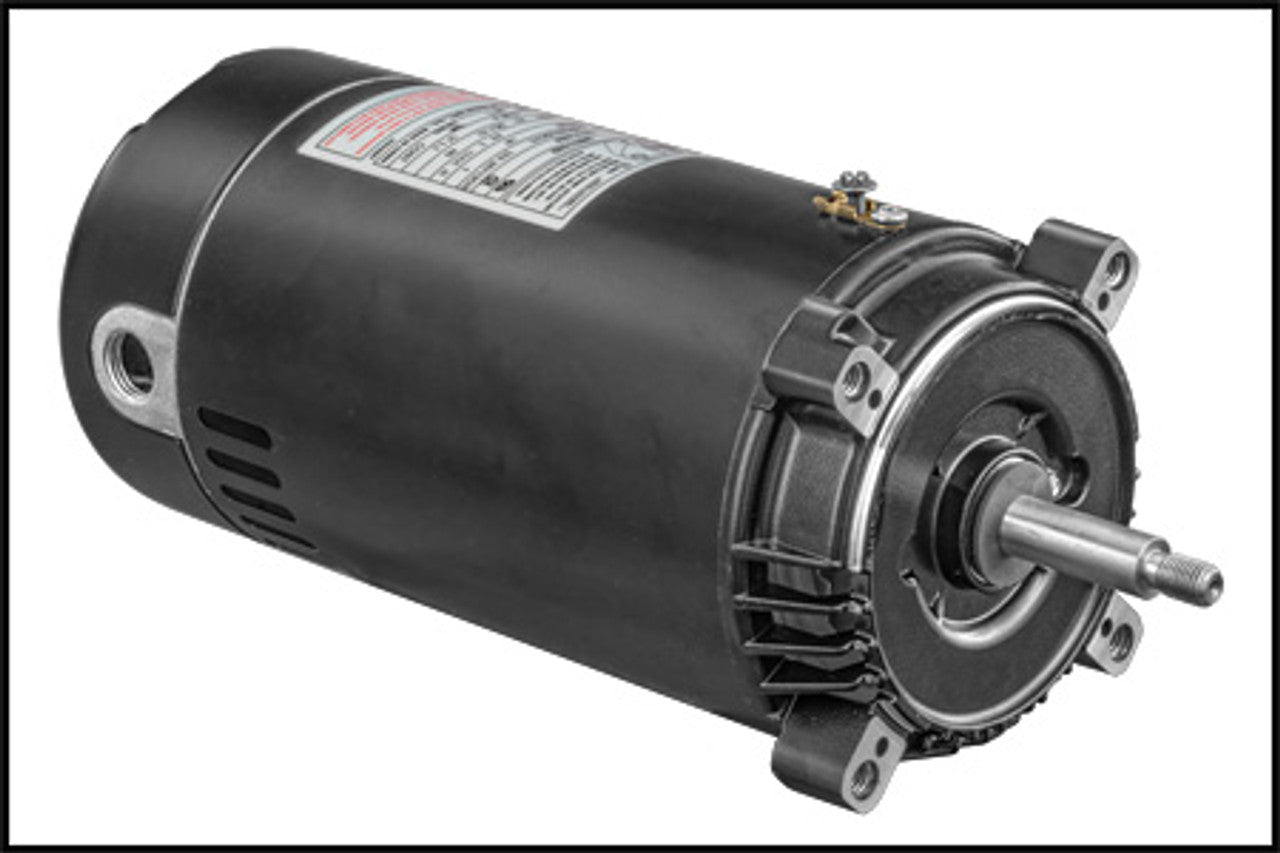

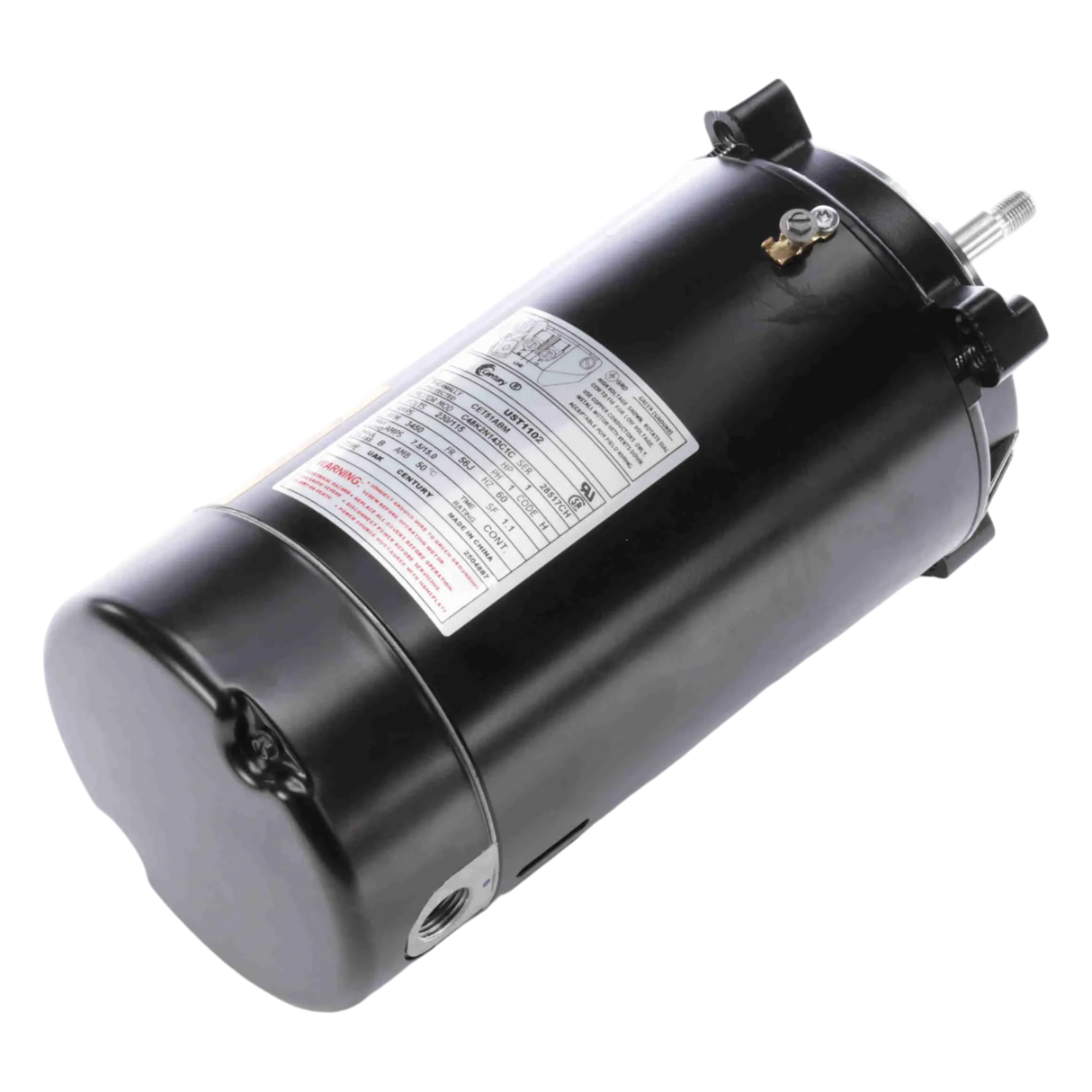

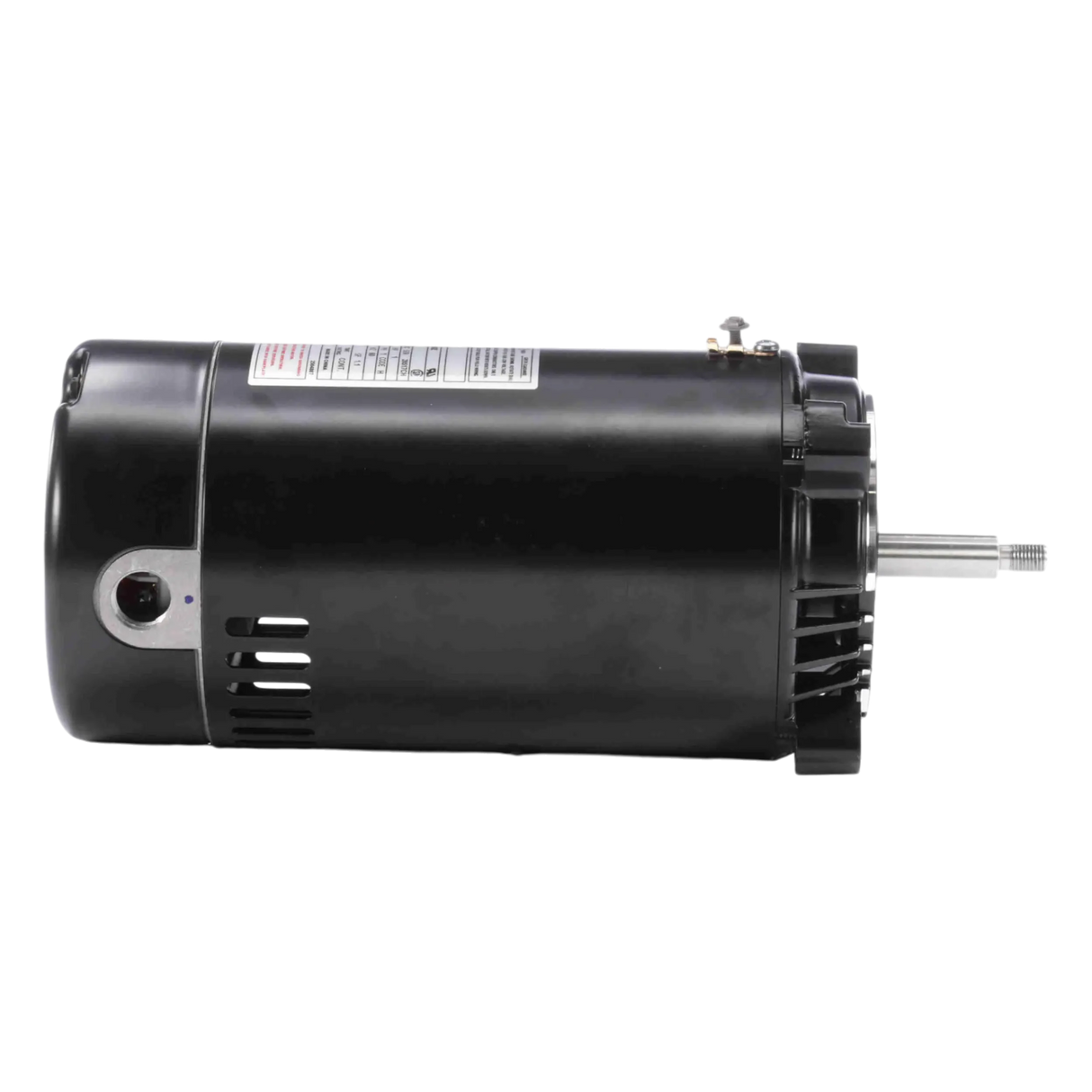

The Regal Beloit UST1102 is a 1 HP AO Smith motor that operates on 115/230 volts. Designed for pool and spa equipment, this motor features a 56J frame and a threaded shaft. It operates at 3450 RPM and is suitable as a replacement motor for various pump models.

• 1 HP motor with single speed operation
• Operates on 115/230 volts
• Features a 56J frame and threaded shaft

Product Highlights

This Regal Beloit motor is designed for efficient performance and is ideal for pool and spa applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: UST1102
• Country of Origin: China

Technical Specifications

• HP: 1 HP
• Speed: Single
• RPM: 3450 RPM
• Volts: 115/230 V
• Amps: 15.0/7.5 amp
• Service Factor: 1.1
• Total HP: 1.1 HP
• Frame: 56J
• Shaft: Threaded
• Overload Protector: Auto
• Flange: Round
• Motor Frame: 56J
• Voltage: 115/230V
• Phase: Single
• Motor Bearings: Ball
• Motor Mounting Type: Face
• Motor Thermal Protection: Auto
• Nameplate RPM: 3450
• Motor Application: Pump
• Motor Enclosure Design: Open Dripproof
• Motor Flange Material: Aluminum
• Motor Shaft Rotation: CCWSE
• Motor Sub Application: Pool and Spa Pump
• Shaft Diameter: 5/8 in
• Shaft Length: 2-9/16 in
• Shaft Material: 303 Stainless Steel
• Standards: CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022)
• Hz: 60
• Ins. Class: B
• Motor Design: Capacitor-Start
• Motor Efficiency Group: Standard Efficient
• Ambient Temperature: 50 Degrees C
• Full Load Amps: 15/7.5
