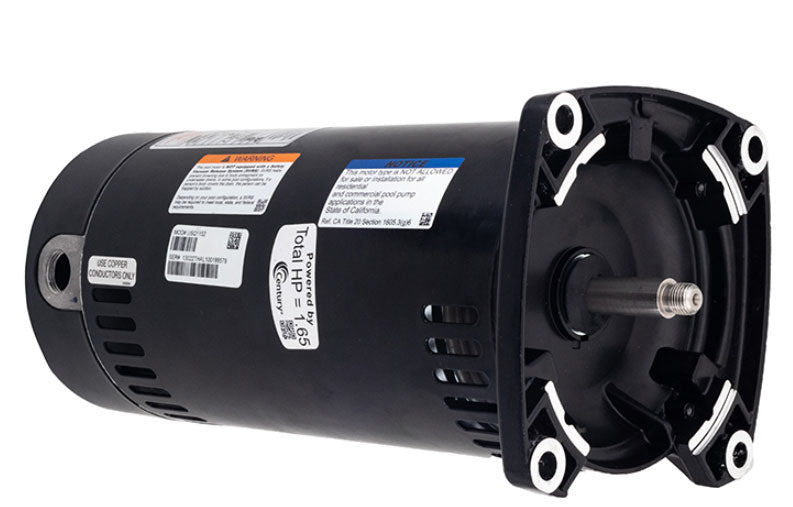

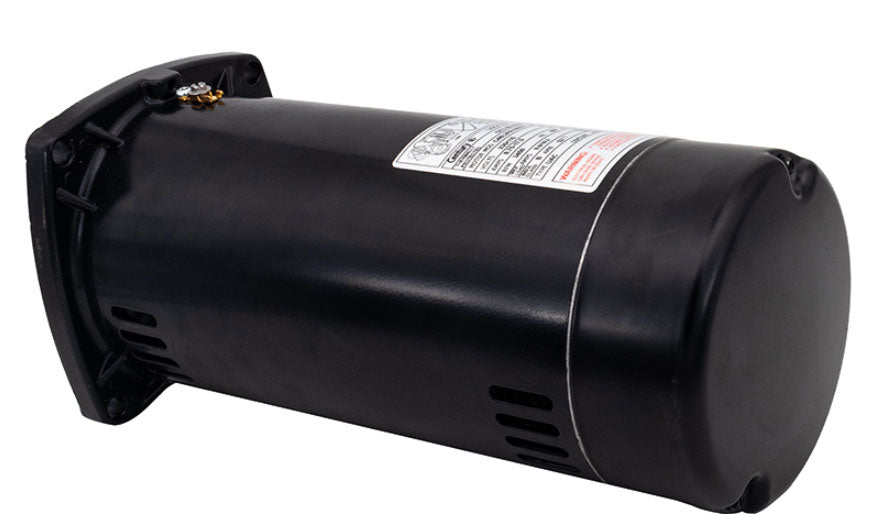

Regal Beloit USQ1152 1.5 HP Square Flange Up-Rated Two-Compartment Pool Filter Motor 48Y Threaded Shaft

Product Description

The Regal Beloit USQ1152 is a 1.5 HP square flange, up-rated two-compartment pool filter motor with a 48Y threaded shaft. This motor operates at 3450 RPM and is designed for 115/230V power systems. It is suitable for pool and spa pump applications. The motor features an open dripproof enclosure and automatic thermal protection.

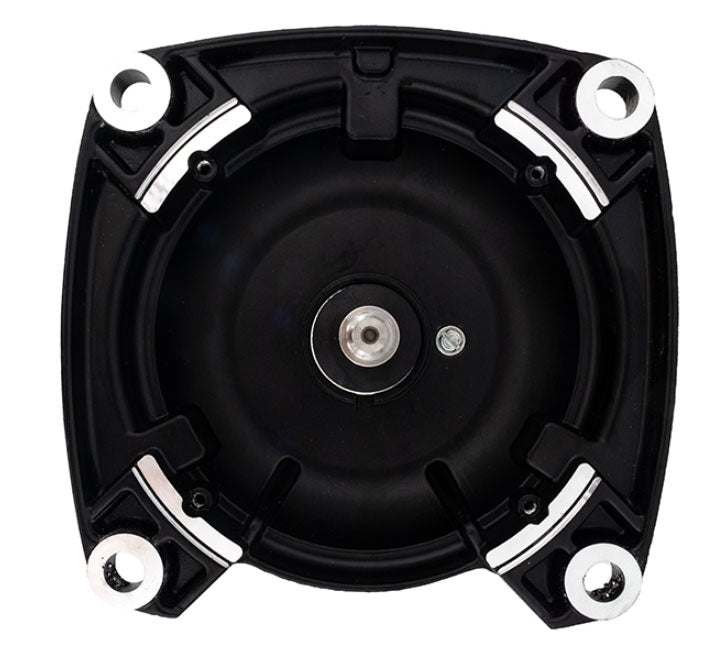

• Square flange
• Threaded shaft
• 1.5hp

Product Highlights

This Regal Beloit motor is designed for pool and spa applications, providing reliable power and protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: USQ1152
• Country of Origin: China

Technical Specifications

• Speed: 3450 RPM
• Voltage: 115 & 230V
• Motor Frame: 48Y
• HP: 1.5 HP
• Amps: 19.2/9.6 amp
• Service Factor: 1.1
• Total HP: 1.65 HP
• Shaft: Threaded
• Overload Protector: Auto
• Flange: Square
• Phase: 1
• Output HP: 1 1/2 Hp
• Output KW: 1.1 kW
• Frequency: 60 Hz
• Current: 8.75/17.5 A
• Enclosure: Open Drip Proof
• Thermal Protection: Automatic
• Ambient Temperature: 50 °C
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Cap Start Motor
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Thread
• Overall Length: 13.82 in
• Frame Length: 9.94 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 0.906 in
• Packaged Length: 16.00 IN
• Packaged Width: 9.50 IN
• Packaged Height: 9.50 IN
• Product Category: Pump Motors
• Voltage Compatibility: 120/220-240V
• Design: Two Compartment
• Full Load Amps: 19.2/9.6
• Hz: 60
• Max Ambient Temperature: 50 Degrees C
• Motor Application: Pump
• Motor Design: Capacitor-Start
• Motor Efficiency Group: Standard Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Type: Face
• Motor Service Factor: 1.1
• Motor Shaft Rotation: CCWSE
• Motor Sub Application: Pool and Spa Pump
• Nameplate RPM: 3450
• RPM Range: 3001-3600
• Shaft Material: 303 Stainless Steel
• Compatible With: Regal Beloit America - Epc
• Horsepower: 1.5 HP
