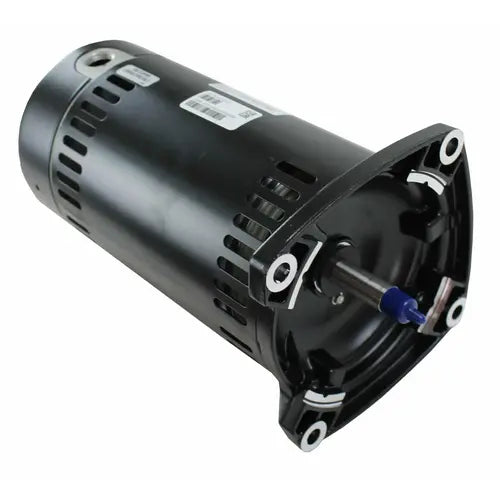

Regal Beloit USQ1072 Pump Motor 0.75 HP 115/230 V

Product Description

The REGAL BELOIT USQ1072 is a 0.75 HP motor with a single speed and an RPM of 3450. Operating at 115/230V, it features a 48Y frame and a threaded shaft. This motor is designed for pool and spa applications, offering reliable performance and durability. It has an auto overload protector.

• Service Factor of 1.27
• Open Drip Proof enclosure
• 303 Stainless Steel Threaded Shaft

Product Highlights

This 0.75 HP motor is ideal for pool and spa pumps, providing efficient and reliable performance with its robust design and protective features.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: USQ1072
• Country of Origin: China

Technical Specifications

• HP: 0.75 HP
• Speed: Single
• RPM: 3450 RPM
• Volts: 115/230 V
• Amps: 13.4/6.7 amp
• Service Factor: 1.27
• Frame: 48Y
• Shaft: Threaded
• Overload Protector: Auto
• Full Load Amps: 13.4/6.7 A
• Hz: 60
• Ins. Class: B
• Max Ambient Temperature: 50 Degrees C
• Motor Application: Pump
• Motor Design: Capacitor-Start
• Motor Efficiency Group: Standard Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Type: Face
• Motor Shaft Rotation: CCWSE
• Motor Sub Application: Pool and Spa Pump
• Motor Thermal Protection: Auto
• Nameplate RPM: 3450
• Phase: 1
• RPM Range: 3001-3600
• Shaft Diameter: 5/8 in
• Shaft Material: 303 Stainless Steel
• Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
• VoltageRating: 115/230 V
• DutyCycle: Continuous
• AmbientTemperature: 50 deg C
• MountingType: C-Face
• EfficiencyGroup: Standard
• Type: Up-Rated, UAC
• ShaftDiameter: 5/8 Inch
• Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
• FrequencyRating: 60 Hz
• NumberofSpeed: 1-Speed
• OverallLength: 11.50 Inch
• Diameter: 5-5/8 Inch
• Bearing Type: Sealed Ball
• EnclosureDesign: Open Dripproof
• FlangeType: Square
• Motor Speed: 1-Speed
• Motor Frame Size: 48Y
• Motor Capacitor Type: Start
• Standards Approvals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
