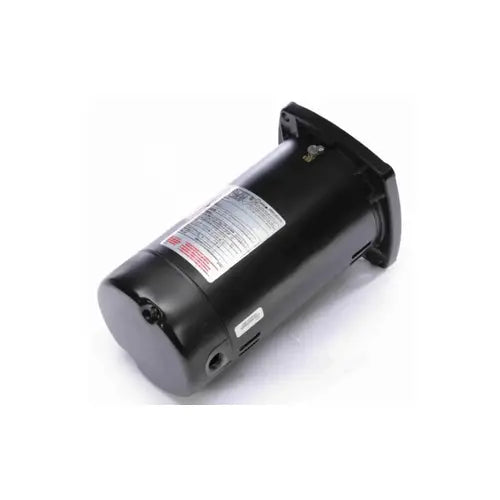

Regal Beloit USQ1052 0.5 HP Square Flange Up-Rated Two-Compartment Pool Filter Motor 48Y Threaded Shaft

Product Description

The Regal Beloit USQ1052 is a 0.5 HP square flange up-rated two-compartment pool filter motor with a 48Y threaded shaft. This motor operates at 3450 RPM and is designed for 115/230V power systems. It is suitable for various pool and spa applications, offering reliable performance for both professionals and homeowners.

• 0.5 HP motor with 3450 RPM
• Designed for 115V and 230V power systems
• Features a 48Y frame and threaded shaft

Product Highlights

The Regal Beloit USQ1052 is a robust motor for pool filter systems, ensuring efficient and consistent operation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: USQ1052
• Country of Origin: China

Technical Specifications

• Speed: 3450 RPM
• Voltage: 115/230V
• Motor Frame: 48Y
• Diameter: 5-5/8 Inch
• Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
• Type: Up-Rated, UAC
• OverallLength: 11.13 Inch
• Brand: Regal Beloit
• Phase: 1-Phase
• Bearing Type: Sealed Ball
• AmbientTemperature: 50 deg C
• FrequencyRating: 60 Hz
• FullLoadAmps: 9.9/5.0 A
• HP: 0.5
• Item: Two-Compartment Pool Filter Motor
• MountingType: C-Face
• SubBrand: Century®
• VoltageRating: 115/230 V
• EnclosureDesign: Open Dripproof
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorDesign: Capacitor Start

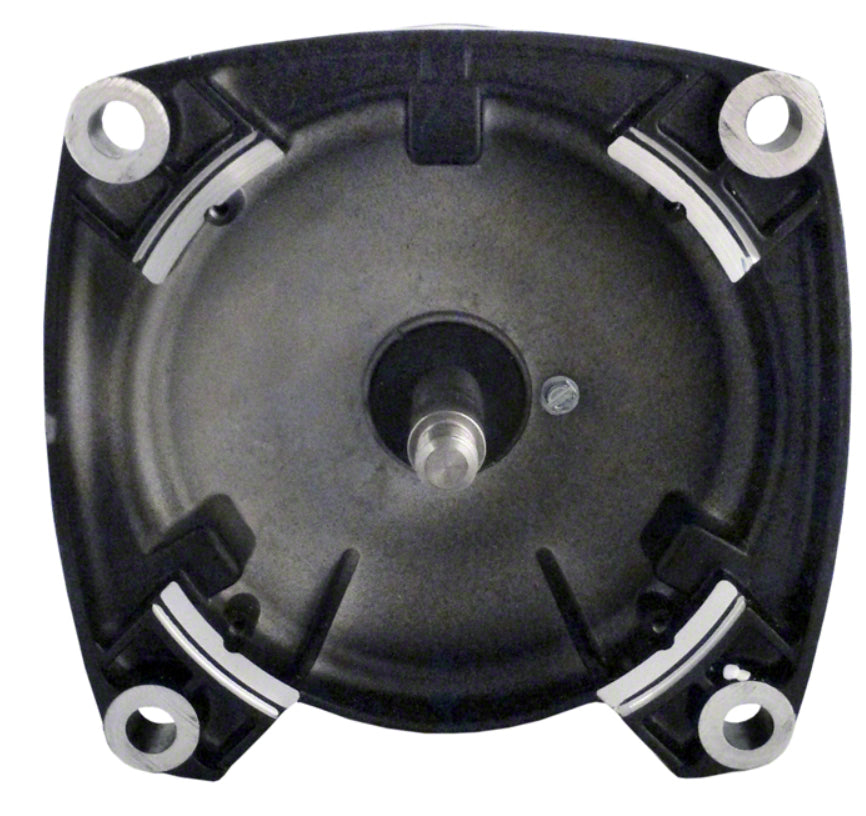

• FlangeType: Square
• ServiceFactor: 1.30
• MotorShaftRotation: CCWPE
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Service Factor: 1.3
• Motor Frame Size: 48Y
• RPMs Min: 3450
• Motor Capacitor Type: Start
• RPMs Max: 3450
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 9.9
• Motor Thermal Protection: Automatic Reset
• Poolweb Item #: USQ1052
• Manufacturer: Century Motors
• Nameplate RPM: 3450
• Hz: 60
• Ins. Class: B
• Max Ambient Temperature: 50 Degrees C
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Efficiency Group: Standard Efficient
• Motor Mounting Type: Face
• Shaft: Threaded 1/2-20 UNF-2A RH
• Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
