Product Description

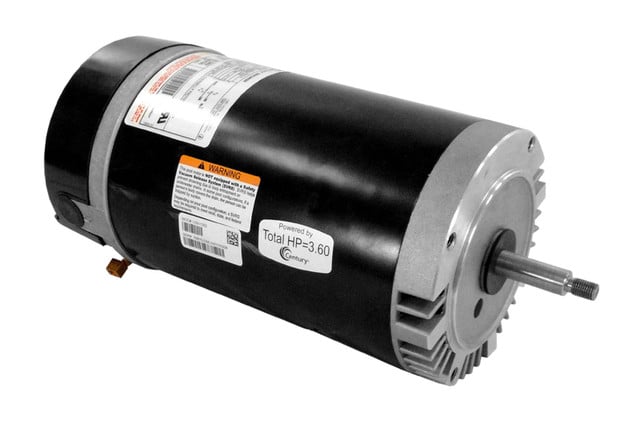

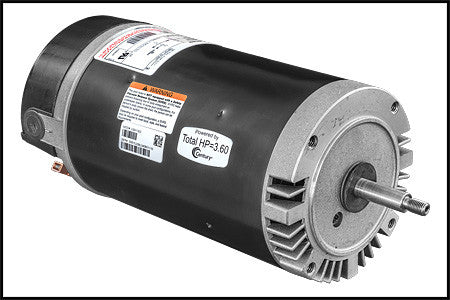

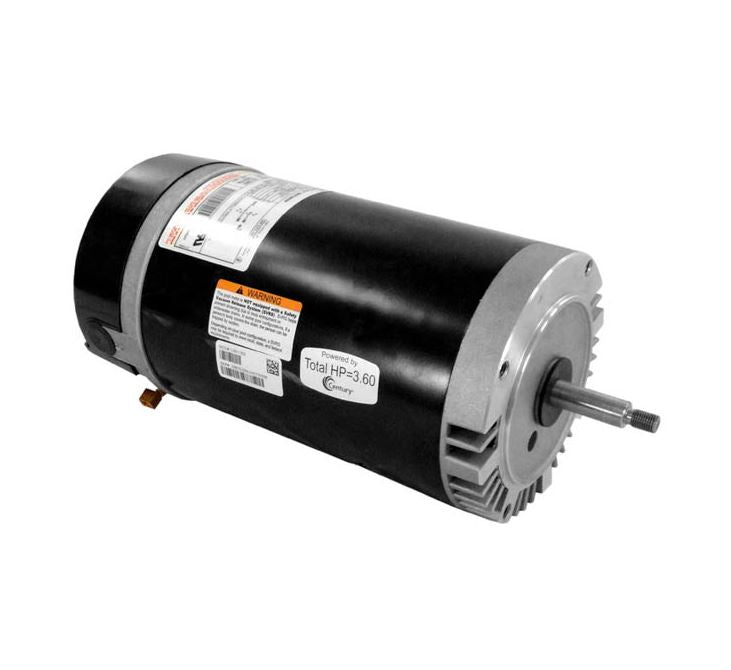

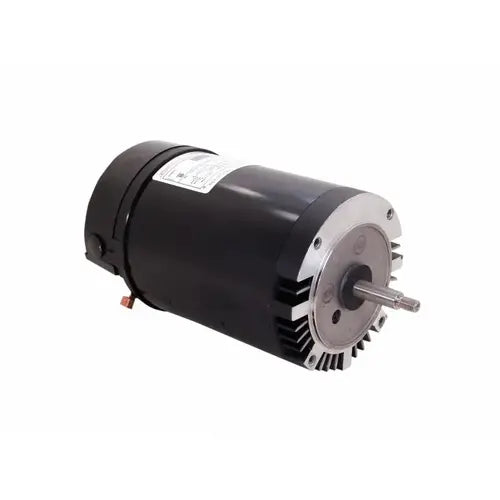

The Regal Beloit USN1302 3HP Northstar Motor is designed for pool and spa systems. With a 3 HP rating, this motor delivers performance for water circulation. It is rated for 115/208-230V and operates at 3450 RPM. Features include EZ wrench access, a heavy-duty shaft, and a patented bearing lock clip.
- All motors are rated 115/208-230V
- EZ wrench access
- Heavy duty shaft
Product Highlights
High-powered motor for demanding pool and spa systems, ensuring optimal water circulation.
Product Information
Standard Information
-
Brand: REGAL BELOIT
-
Manufacturer Part Number: USN1302
Technical Specifications
-
Manufacturer: Regal Beloit America
-
Rated: 115/208-230V
-
Horsepower: 3 HP
-
RPM: 3450
-
Frame: 56J
-
Application: Hayward Northstar™ Pumps
-
Type: Up-Rated, CX
-
OverallLength: 14.85 Inch
-
Brand: Regal Beloit
-
Phase: 1-Phase
-
Bearing Type: Ball
-
AmbientTemperature: 50 deg C
-
FrequencyRating: 60 Hz
-
FullLoadAmps: 16.0-14.8 A
-
MountingType: C-Face, No Base
-
StandardsApprovals: UL Approved
-
SubBrand: Century®
-
VoltageRating: 208-230 V
-
EnclosureDesign: Open Dripproof
-
FlangeMaterial: Aluminum
-
ShaftDesign: Threaded
-
InsulationClass: B
-
ShaftLength: 2-9/16 Inch
-
ShaftMaterial: 303 Stainless Steel
-
ShaftDiameter: 5/8 Inch
-
DutyCycle: Continuous
-
MotorThermalProtection: Auto
-
EfficiencyGroup: High
-
MotorDesign: PSC
-
ServiceFactor: 1.20
-
MotorShaftRotation: CCWPE
-
Diameter: 6-1/2 Inch
