Regal Beloit USN1202 Northstar Pump Motor 2 HP

Product Description

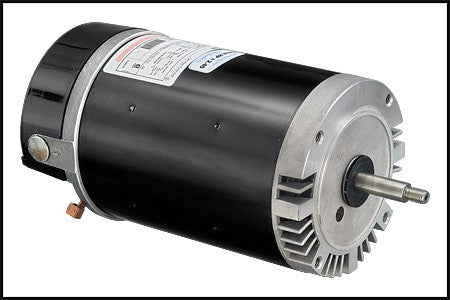

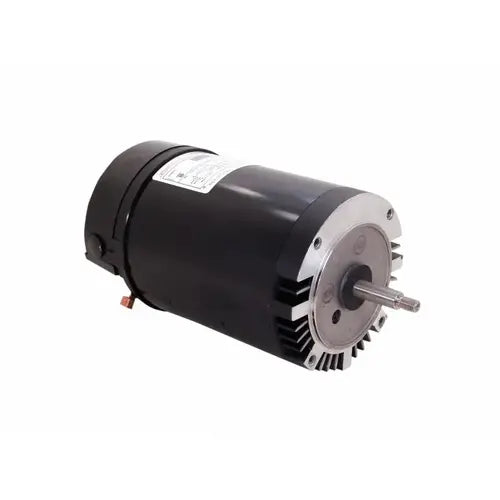

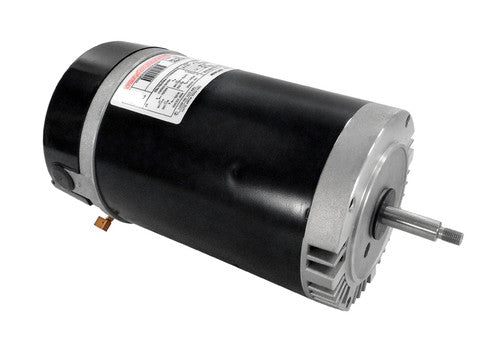

The REGAL BELOIT USN1202 is a 2 HP up-rated Northstar replacement pool and spa pump motor. It operates at 3450 RPM with a voltage rating of 115/208-230V and is designed with a 56J frame and threaded shaft. Suitable for Hayward Northstar pumps, it features an open dripproof enclosure and automatic thermal protection.

• Energy efficient
• E-coated main frame for superior corrosion resistance
• Cool running for longer winding life

Product Highlights

This motor is switchless, operates with low noise, and has a 7/16-20 UNF-2A RH threaded shaft.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: USN1202

Technical Specifications

• Application: Hayward Northstar™ Pumps
• Bearing Type: Ball
• Brand: Regal Beloit
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Efficiency Group: High
• Enclosure Design: Open Dripproof
• Finish Color: Black
• Flange Material: Aluminum
• Frame: 56J
• Frequency Rating: 60 Hz
• Full Load Amps: 11.0-10.2/20.4 A
• HP: 2
• Insulation Class: B
• Item: Replacement Pool and Spa Pump Motor
• MotorDesign: PSC
• MotorShaftRotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face, No Base
• Overall Length: 13.85 Inch
• Phase: 1-Phase
• RPM: 3450
• Service Factor: 1.20
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Length: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL Approved
• Sub Brand: Century®
• Type: Up-Rated, CX
• Voltage Rating: 115/208-230 V
• Ambient Temperature: 50 deg C
