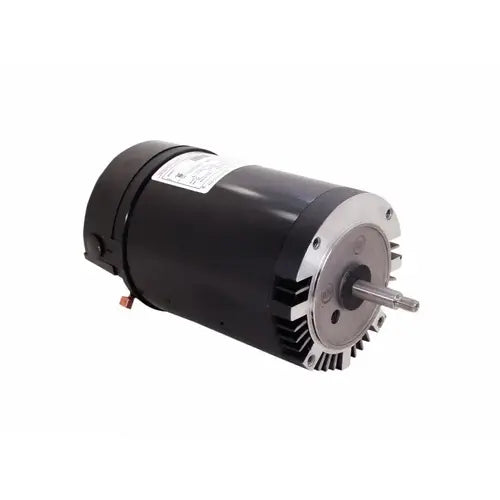

Regal Beloit USN1152 Century Hayward Northstar Replacement Motor 1.5 HP

Product Description

The Regal Beloit USN1152 Century Hayward Northstar Replacement Motor is designed for HVAC, leisure water, and commercial and industrial markets. This 1.5 HP motor is energy efficient with a 303 stainless steel threaded shaft and can operate in a 50-degree Celsius ambient temperature. It features sealed ball bearings, class B insulation, and an E-Coated Main Frame for Superior Corrosion Resistance.

• Energy efficient motor
• E-coated main frame for superior corrosion resistance
• 303 stainless steel threaded shaft

Product Highlights

This 1.5 HP replacement motor operates at 3450 RPM and is suitable for Hayward Northstar pumps.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: USN1152
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1.5 Hp
• Speed: 3450 RPM
• Volts: 208 - 230/115 V
• Amps: 8.5 - 7.8/11 amp
• Brand: Regal Beloit
• Material: Stainless Steel
• Manufacturer: Regal Beloit
• Ambient Temperature: 50 deg C
• Application: Hayward Northstar™ Pumps
• Bearing Type: Ball
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Efficiency Group: High
• Enclosure Design: Open Dripproof
• Finish Color: Black
• Flange Material: Aluminum
• Frame: 56J
• Frequency Rating: 60 Hz
• Full Load Amps: 8.5-7.8/15.6 A
• Insulation Class: B
• Item: Replacement Pool and Spa Pump Motor
• Motor Design: PSC
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face, No Base
• Overall Length: 13.35 Inch
• Phase: 1-Phase
• Service Factor: 1.25
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Length: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL Approved
• Sub Brand: Century®
• Type: Up-Rated, CX
• Voltage Rating: 115/208-230 V
• Output KW: 1.1 kW
• Frequency: 60 Hz
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball Brg
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 7/16 Threaded
• Frame Length: 7.25 in
• Shaft Extension: 2.56 in
