Regal Beloit USN1102 Northstar Pool And Spa Pump Motor 1 HP

Product Description

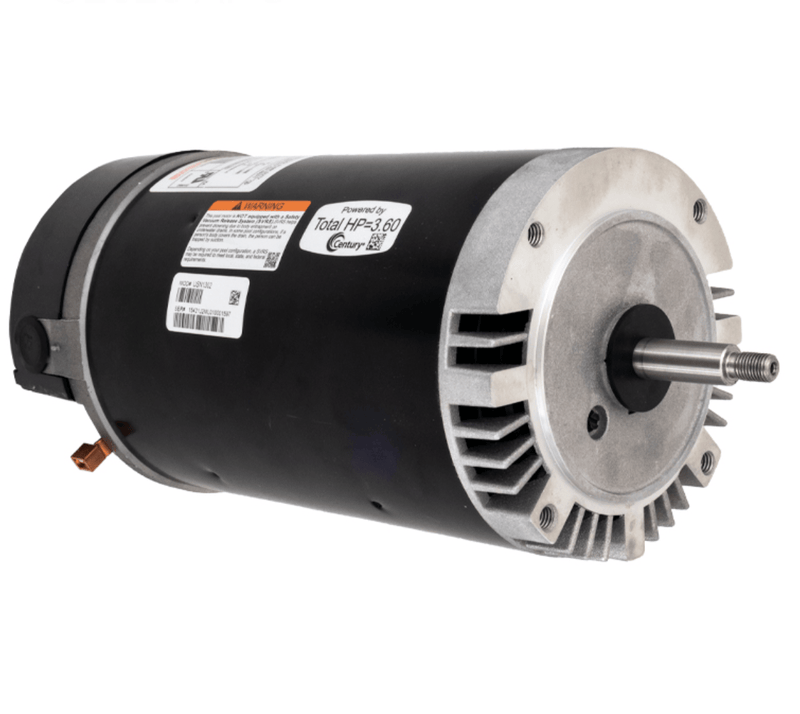

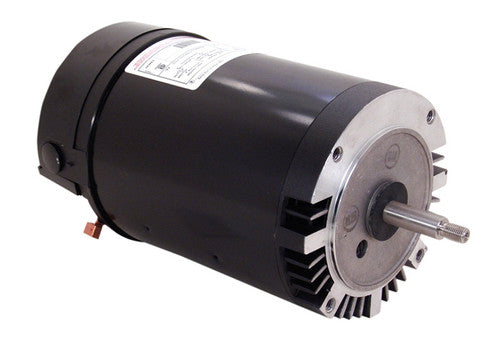

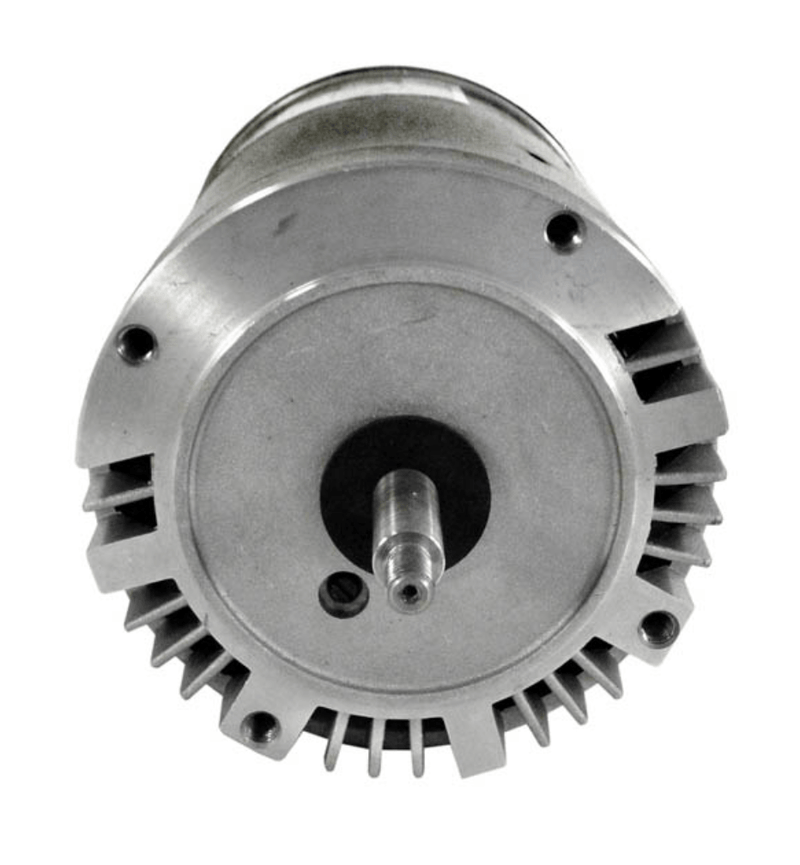

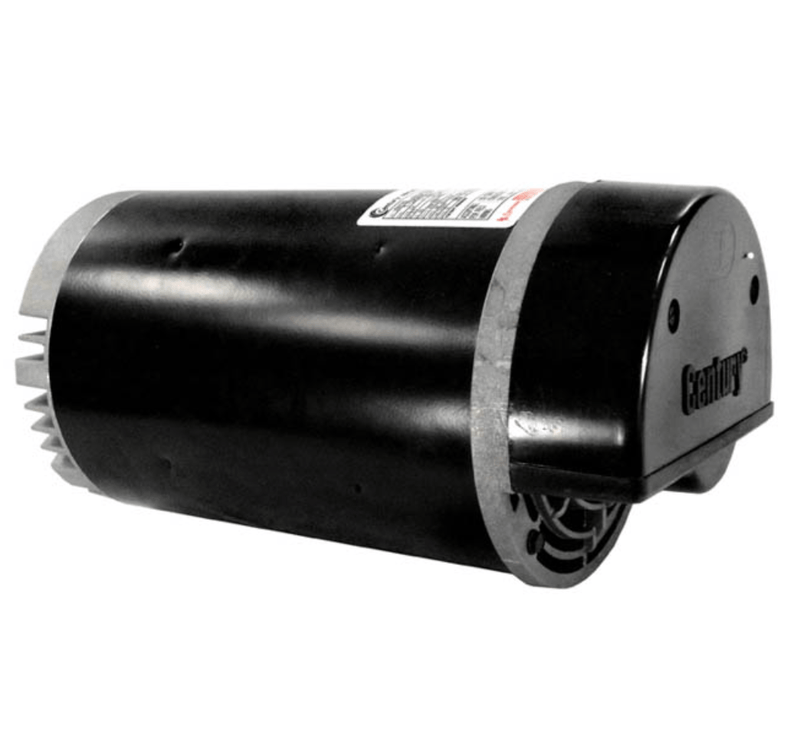

The REGAL BELOIT USN1102 is an up-rated replacement pool and spa pump motor. This 1 HP motor operates at 3450 RPM with a voltage rating of 115/208-230 V and features a 56J frame with a threaded shaft. Designed for Hayward Northstar pumps, it ensures optimal water circulation for pool and spa systems. Built to withstand challenging environments, ensuring long-lasting and dependable operation.

• Energy efficient
• E-coated main frame for superior corrosion resistance
• Low noise

Product Highlights

This 1 HP motor features a 56J frame, threaded shaft, and is designed for Hayward Northstar pumps.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: USN1102

Technical Specifications

• Diameter: 6-1/2 Inch
• RPM: 3450
• Frame: 56J
• Application: Hayward Northstar™ Pumps
• Type: Up-Rated, CX
• Overall Length: 13.10 Inch
• Brand: Regal Beloit
• Phase: 1-Phase
• Bearing Type: Ball
• Ambient Temperature: 50 deg C
• Frequency Rating: 60 Hz
• Full Load Amps: 6.0-5.5/11 A
• HP: 1
• Item: Replacement Pool and Spa Pump Motor
• Mounting Type: C-Face, No Base
• Standards Approvals: UL Approved
• Sub Brand: Century®
• Voltage Rating: 115/208-230 V
• Enclosure Design: Open Dripproof
• Flange Material: Aluminum
• Shaft Design: Threaded
• Insulation Class: B
• Shaft Length: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Shaft Diameter: 5/8 Inch
• Duty Cycle: Continuous
• Motor Thermal Protection: Auto
• Efficiency Group: High
• Motor Design: PSC
• Service Factor: 1.40
• Motor Shaft Rotation: CCWPE
