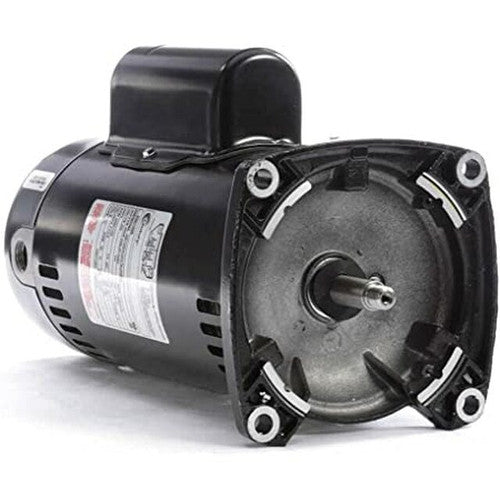

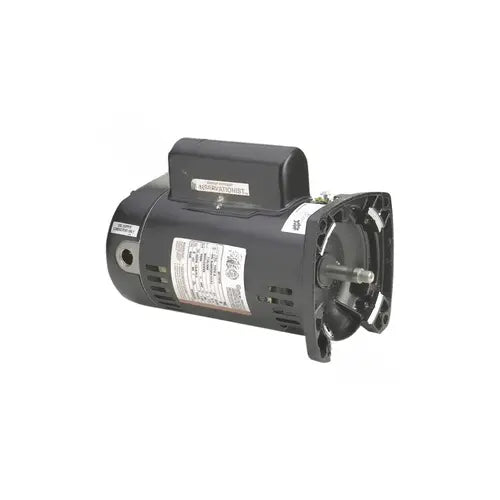

Regal Beloit UQC1102 Odp Square Flange Pool Filter Motor 1 HP 230/115V

Product Description

The REGAL BELOIT UQC1102 is a square flange up-rated two-compartment pool filter motor. This 1 HP motor operates at 3450 RPM with a voltage of 115/230V and a 48Y frame. It features a threaded shaft and is designed for continuous duty. It is suitable for use in specific pool pump or spa pump duty applications.

• Features a 48Y frame and a 5/8 inch shaft diameter
• Equipped with sealed ball bearings and an open dripproof enclosure
• Includes a 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH threaded shaft

Product Highlights

This motor is energy efficient and UL 1081 approved, UL Recognized (E25022), and CSA certified (LR43341).

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: UQC1102

Technical Specifications

• Voltage Rating: 115/230 V
• Duty Cycle: Continuous
• Motor Design: Capacitor Start/Run
• Frame: 48Y
• Full Load Amps: 12.6-6.3 A
• Service Factor: 1.25
• Brand: Regal Beloit
• Sub Brand: Century®
• Standards Approvals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
• Ambient Temperature: 50 deg C
• RPM: 3450
• Shaft Design: Threaded
• Motor Shaft Rotation: CCWPE
• Phase: 1-Phase
• Shaft Material: 303 Stainless Steel
• Mounting Type: C-Face
• Insulation Class: B
• Efficiency Group: High
• HP: 1
• Type: Up-Rated, UAK
• Shaft Diameter: 5/8 Inch
• Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
• Frequency Rating: 60 Hz
• Number of Speed: 1-Speed
• Overall Length: 11.25 Inch
• Bearing Type: Sealed Ball
• Enclosure Design: Open Dripproof
• Flange Type: Square
• Motor Thermal Protection: Automatic Reset
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• RPMs Min: 3450
• Motor Capacitor Type: Start,Run
• RPMs Max: 3450
• Amps Low Speed: 6.3
• Amps High Speed: 12.6
• Green or Energy Efficient Product: True
• Horsepower: 1 HP
• Thrust HP: 1.25
