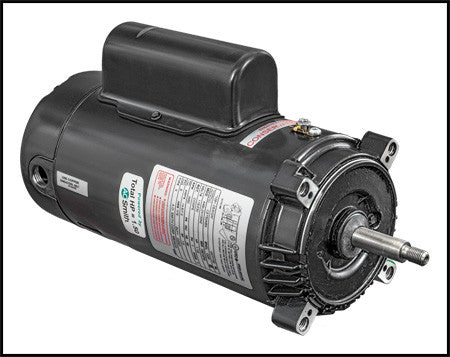

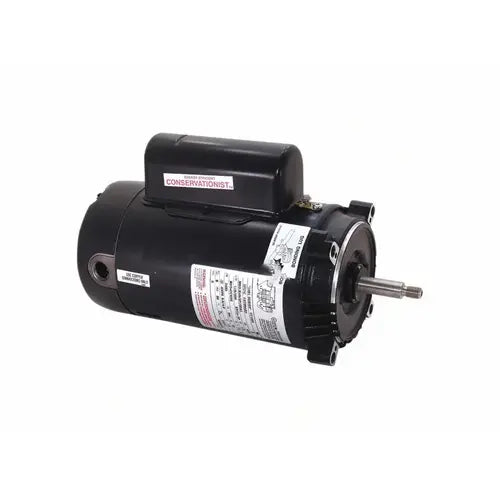

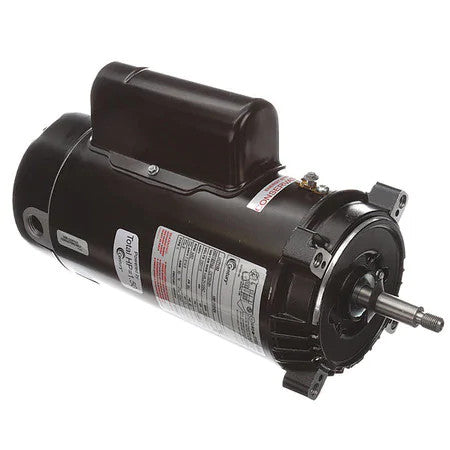

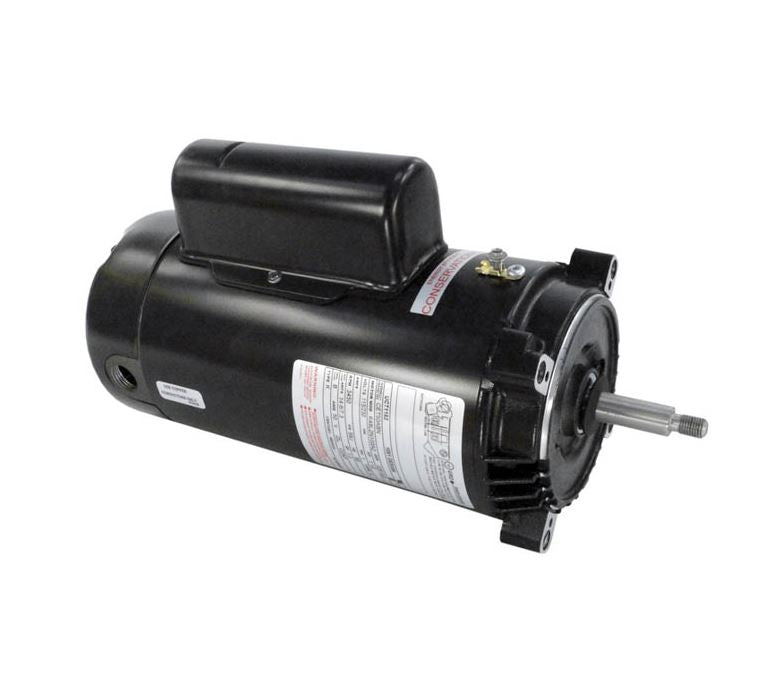

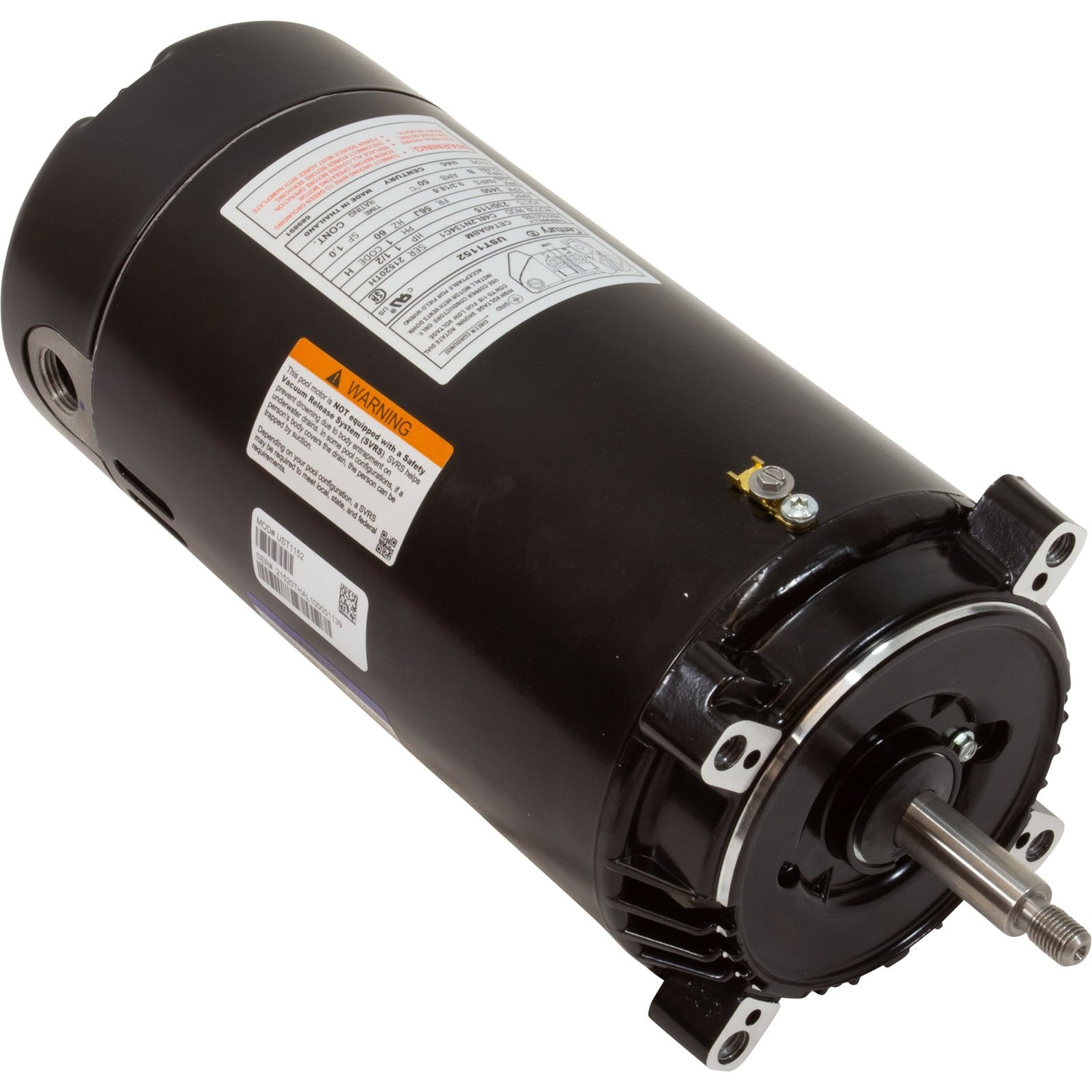

Regal Beloit UCT1152 Odp Threaded Pool Filter Motor 1.5 HP

Product Description

The REGAL BELOIT UCT1152 is an up-rated two-compartment pool filter motor with a 1.5 HP, operating at 3450 RPM and 115/230 V. It features a 56J frame and a threaded shaft, designed for pool and spa systems, ensuring efficient and reliable performance for optimal water circulation. The motor operates at 60 Hz and has automatic thermal protection.

• Features a sealed switch design
• Low service factor
• Energy efficient "Conservationist™" motor

Product Highlights

This motor is designed for durability and energy efficiency, suitable for various applications in pool and spa systems.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: UCT1152

Technical Specifications

• VoltageRating: 115/230 V
• DutyCycle: Continuous
• MotorDesign: Capacitor Start/Run
• Frame: 56J
• FullLoadAmps: 14.6/7.3 A
• ServiceFactor: 1.00
• Brand: Regal Beloit
• SubBrand: Century®
• StandardsApprovals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
• AmbientTemperature: 50 deg C
• RPM: 3450
• ShaftDesign: Threaded
• MotorShaftRotation: CCWPE
• Phase: 1-Phase
• FlangeMaterial: Aluminum
• ShaftMaterial: 303 Stainless Steel
• MountingType: C-Face
• InsulationClass: B
• EfficiencyGroup: High
• HP: 1.5
• Type: Up-Rated, K
• ShaftDiameter: 5/8 Inch
• FrequencyRating: 60 Hz
• NumberofSpeed: 1-Speed
• OverallLength: 12.13 Inch
• Diameter: 6-1/2 Inch
• Item: Two-Compartment Pool Filter Motor
• ShaftLength: 2-9/16 Inch
• MotorThermalProtection: Auto
• Bearing Type: Sealed Ball
• EnclosureDesign: Open Dripproof
• Voltage: 115V,230V
• Shaft Length: 2.5625 inch
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Rating: Up-Rated
• Motor Frame Size: 56J
• Thrust HP: 1.5
• RPMs Min: 3450
• Motor Capacitor Type: Start,Run
• Green or Energy Efficient Product: True
• RPMs Max: 3450
• Amps Low Speed: 7.3
• Frequency Rating (Hz): 60
• Amps High Speed: 14.6
• Motor Thermal Protection: Automatic Reset
• Horsepower: 1 1/2 HP
• Design: C-Face 56J
