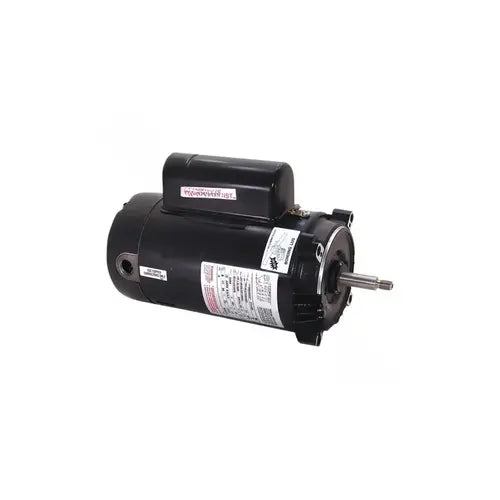

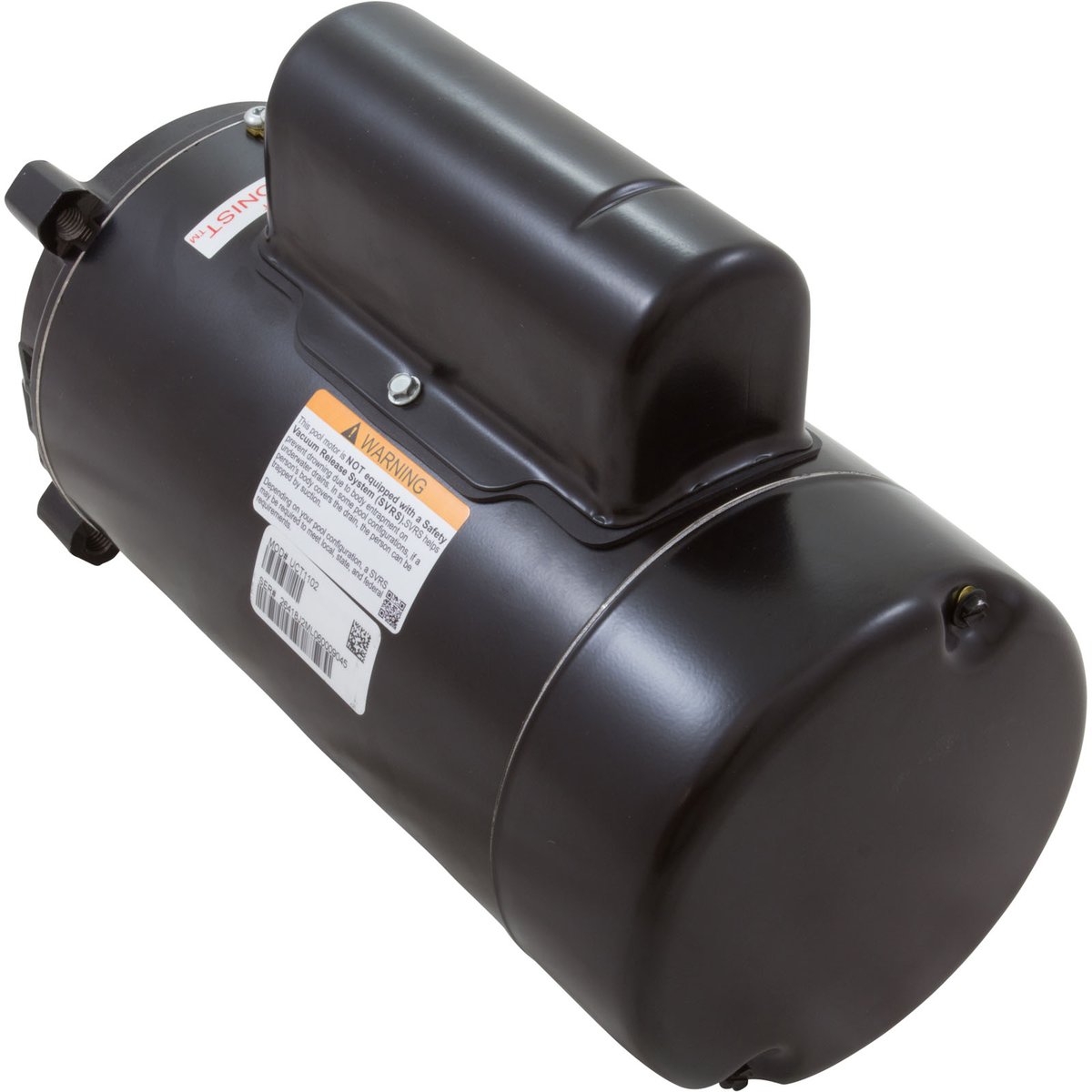

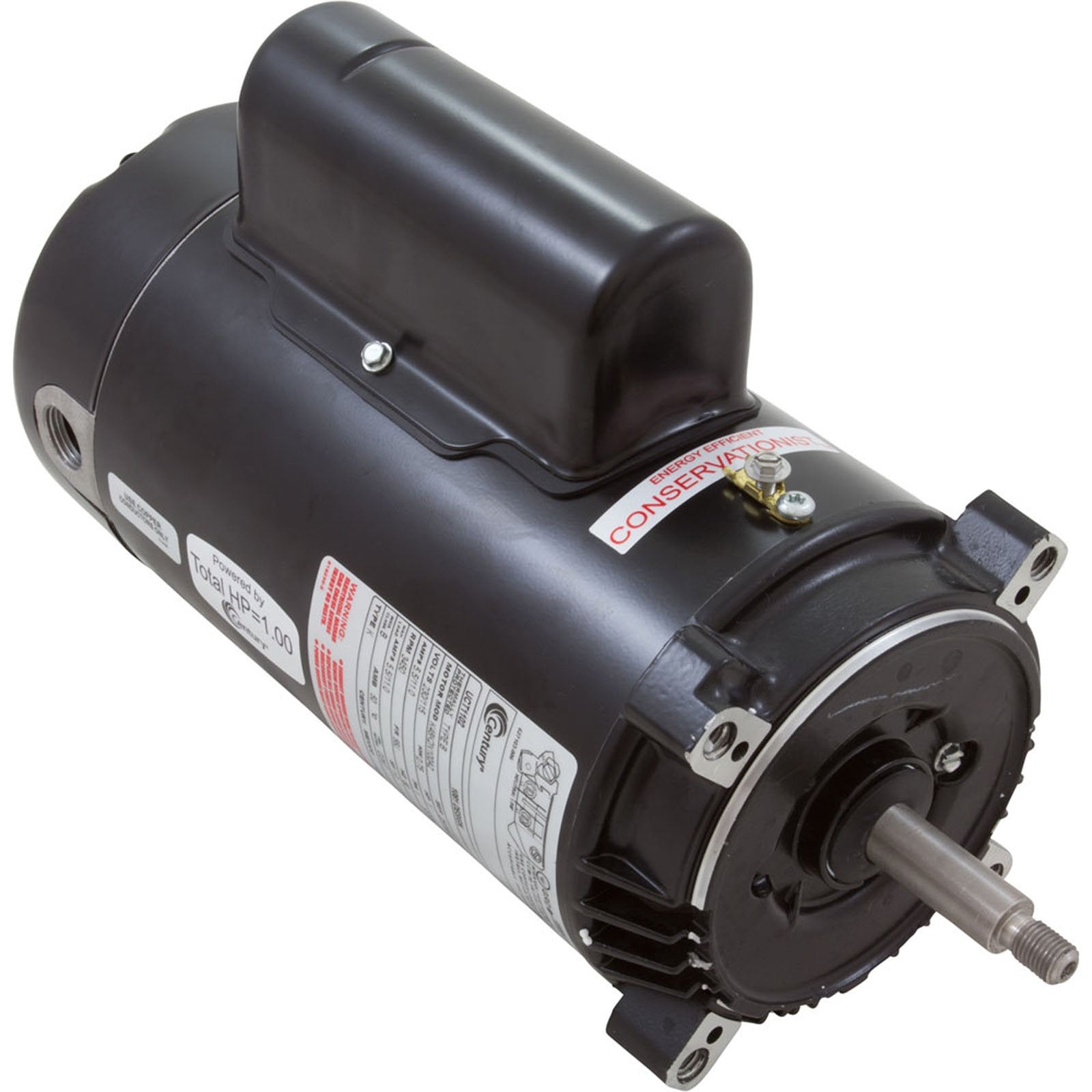

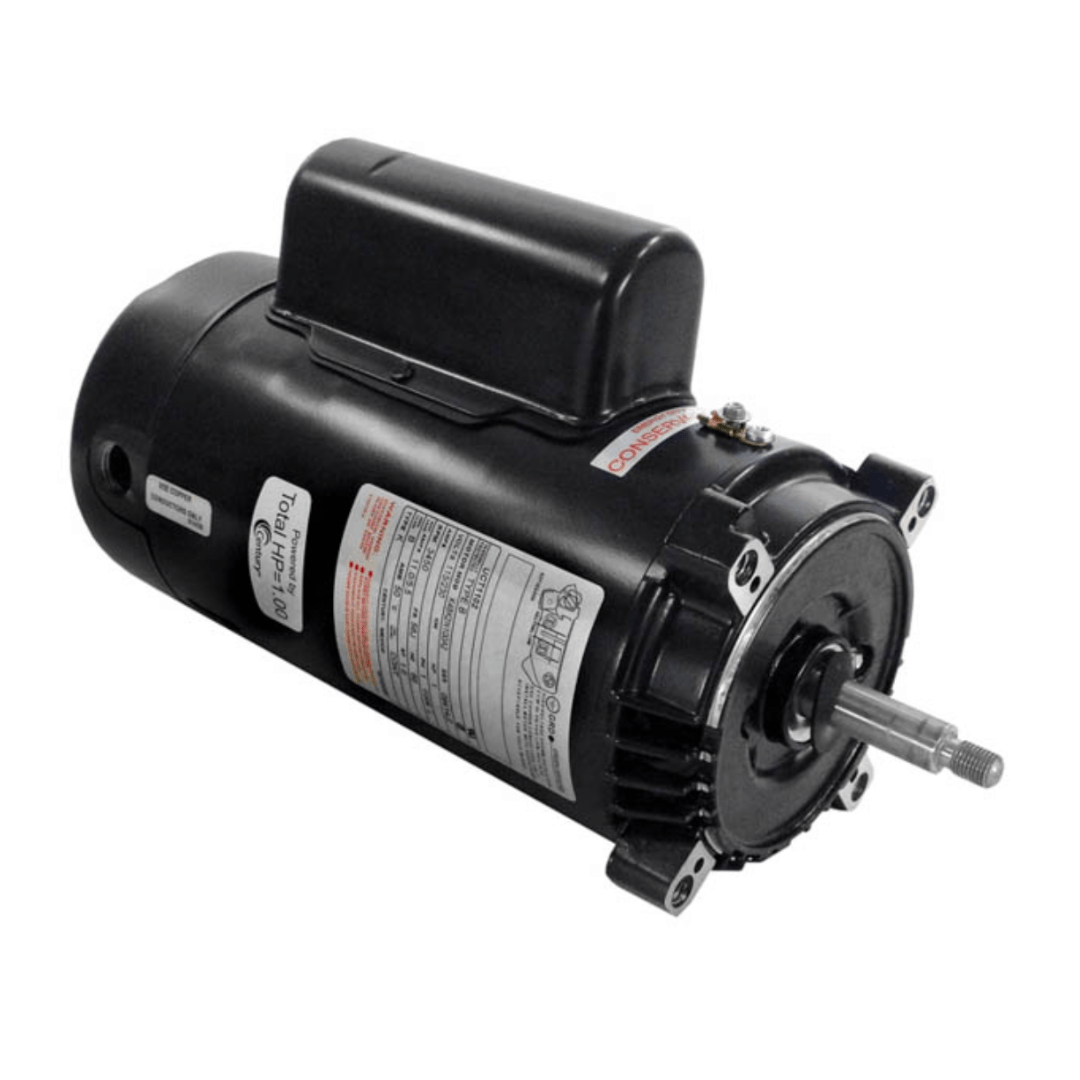

Regal Beloit UCT1102 Odp Threaded Pool Filter Motor 1 HP

Product Description

The REGAL BELOIT UCT1102 is an up-rated two-compartment pool filter motor. This 1 HP motor operates at 3450 RPM with a voltage of 115/230V and a 56J frame. It features a threaded shaft and an open dripproof enclosure, suitable for pool filter applications.

• Energy efficient "Conservationist™" motor
• Sealed switch design
• Threaded shaft design

Product Highlights

This motor is ideal for pool filter systems, providing reliable performance with its robust design and energy-efficient operation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: UCT1102

Technical Specifications

• Voltage Rating: 115/230 V
• Duty Cycle: Continuous
• Motor Design: Capacitor Start/Run
• Frame: 56J
• Full Load Amps: 11.0/5.5 A
• Service Factor: 1.00
• Brand: Regal Beloit
• Sub Brand: Century®
• Standards Approvals: UL 1081 Approved, CSA Certified
• Ambient Temperature: 50 deg C
• RPM: 3450
• Shaft Design: Threaded
• Motor Shaft Rotation: CCWPE
• Phase: 1-Phase
• Flange Material: Aluminum
• Shaft Material: 303 Stainless Steel
• Mounting Type: C-Face
• Insulation Class: B
• Efficiency Group: High
• HP: 1
• Type: Up-Rated, K
• Shaft Diameter: 5/8 Inch
• Frequency Rating: 60 Hz
• Number of Speed: 1-Speed
• Overall Length: 11.69 Inch
• Shaft Length: 2-1/2 Inch
• Motor Thermal Protection: Automatic Reset
• Bearing Type: Sealed Ball
• Enclosure Design: Open Dripproof
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Rating: Up-Rated
• Motor Frame Size: 56J
• Motor Capacitor Type: Start,Run
• Green or Energy Efficient Product: True
• RPMs Max: 3450
• Amps Low Speed: 5.5
• Frequency Rating (Hz): 60
• Amps High Speed: 11
• Motor Type: Pool
• Motor Amperage: 11.0A/5.5A
• Voltage: 115v/230v
• Speed: 1 Speed (1-Spd)
• Motor Shaft Type: Threaded
• Motor Style: C-Face
• Capacitor On Top: Yes
