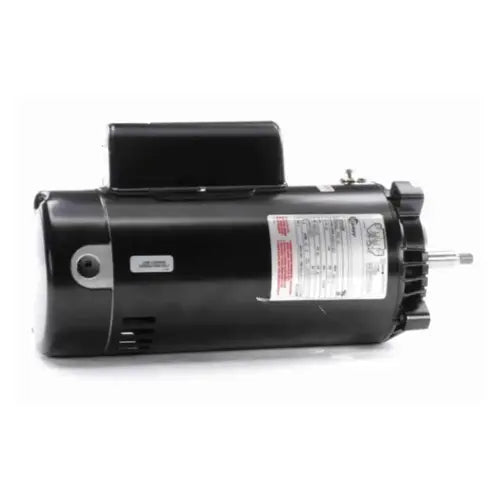

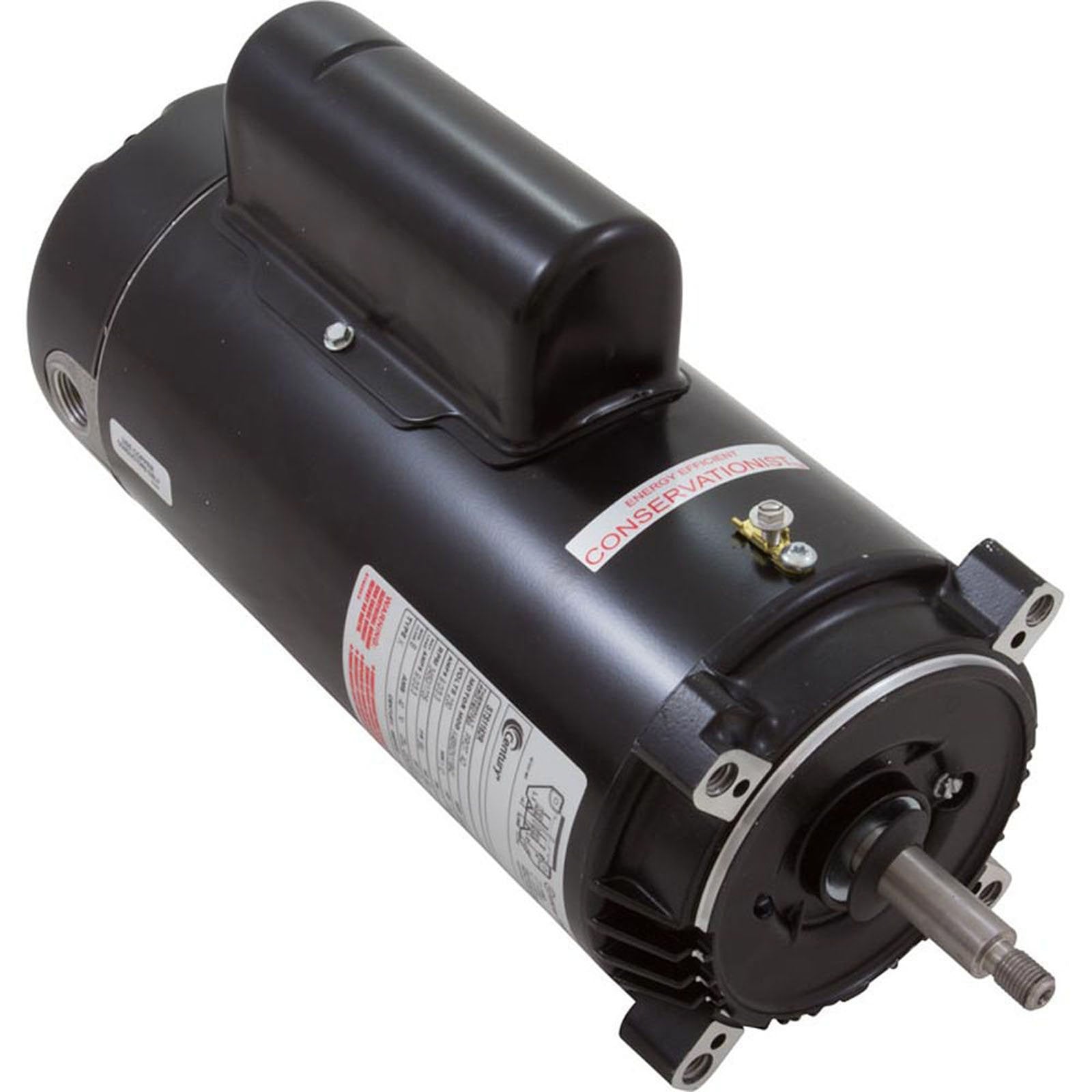

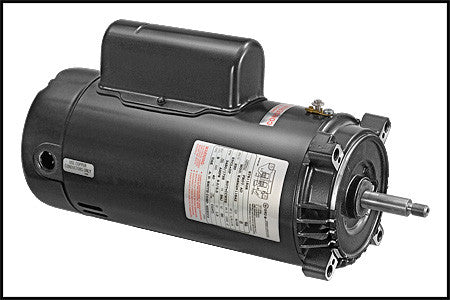

Regal Beloit STS1152R Round Flange Replacement Motor 1.5/0.25 HP

Product Description

The Regal Beloit STS1152R is a high-quality replacement motor with a corrosion-resistant outer shell and a round flange design. This 1.5/0.25 HP motor offers easy wiring access and is designed for pool filter applications. It operates at two speeds, 3450/1725 RPM, and is suitable for continuous duty.

• High-quality, super efficient replacement motor
• Corrosion-resistant outer shell
• Round flange design

Product Highlights

This motor is ideal for pool filter applications, providing efficient and reliable performance with its two-speed functionality and durable construction.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: STS1152R
• Country of Origin: United States

Technical Specifications

• Brand: Regal Beloit
• Speed: 1725 RPM
• Voltage: 230 Volts
• Material: Stainless Steel
• Ambient Temperature: 50 deg C
• Bearing Type: Sealed Ball
• Duty Cycle: Continuous
• Efficiency Group: High
• Enclosure Design: Open Dripproof
• Finish Color: Prime Coat Black
• Flange Material: Aluminum
• Frame: 56J
• Frequency Rating: 60 Hz
• Full Load Amps: 9.0/3.3 A
• HP: 1.5/0.25
• Insulation Class: B
• Item: Two-Compartment Pool Filter Motor
• Motor Design: Capacitor Start/Run
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face
• Number of Speed: 2-Speed
• Overall Length: 13.06 Inch
• Phase: 1-Phase
• RPM: 3450/1725
• Service Factor: 1.30
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Length: 2-9/16 Inch
• Shaft Material: 304 Stainless Steel
• Sub Brand: Century®
• Thrust Horsepower: 1.95
• Type: Full-Rated, K
• Voltage Rating: 230 V
• Diameter: 6-1/2 Inch
• Motor Type: Pool
• Motor Amperage: 9.0A/3.3A
• Motor Shaft Type: Threaded
• Motor Style: Square Flange
