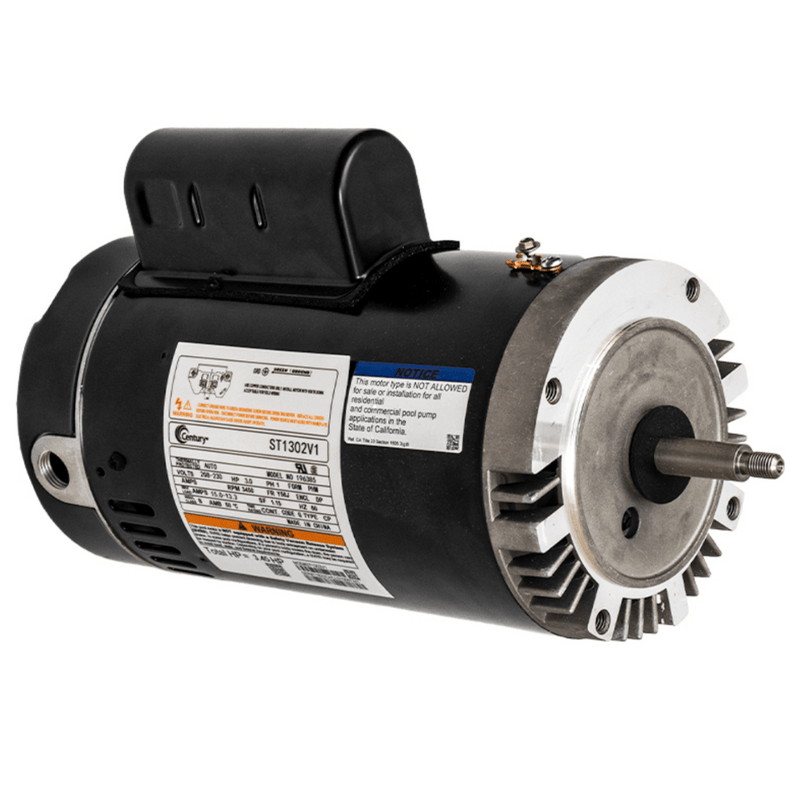

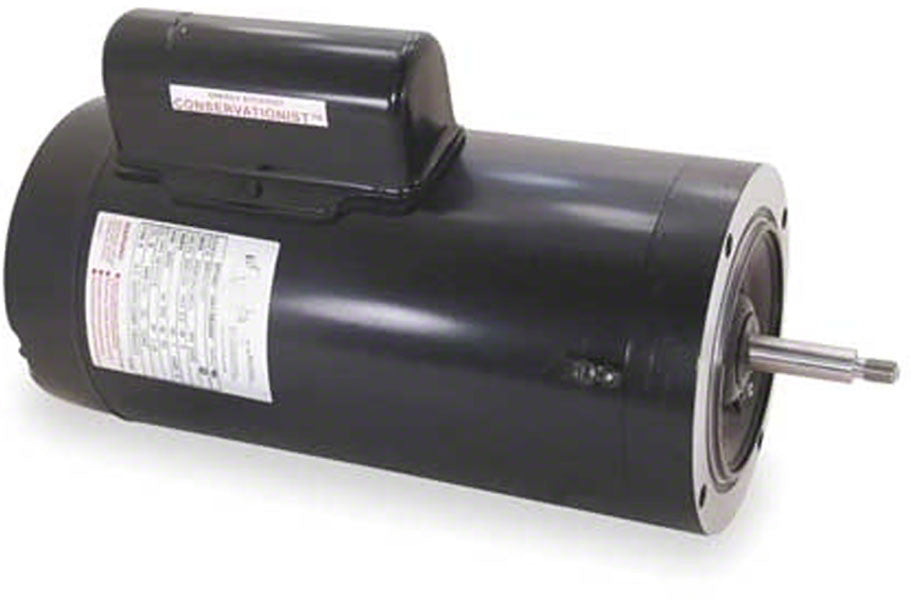

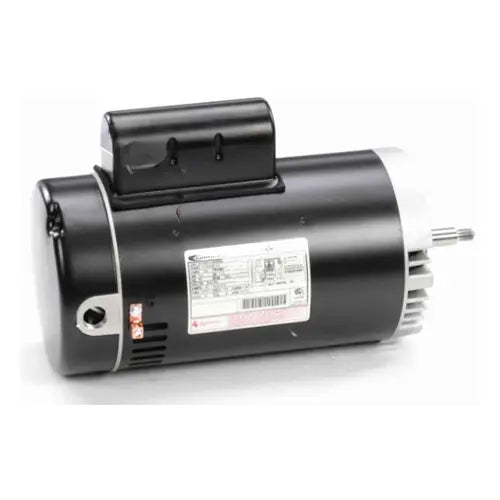

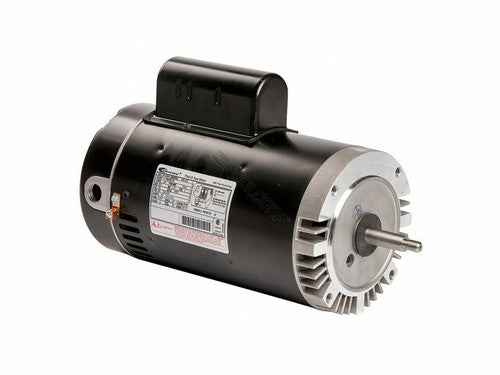

Regal Beloit ST1302V1 Thrd Fr 3Hp Ee 230V

Product Description

The Regal Beloit ST1302V1 is a 3 HP, 208-230V, threaded shaft motor. This full-rated two-compartment pool filter motor operates at 3450 RPM and is designed with a 56J frame. It features an open dripproof enclosure and automatic thermal protection.

• Auto Protector
• Open Drip proof enclosure
• Sealed Ball Bearings

Product Highlights

This motor is suitable for pool filter applications, offering reliable performance and protection against overheating.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: ST1302V1

Technical Specifications

• Auto Protector: true
• Open Drip proof: true
• Sealed Ball Bearings: true
• Ambient Temperature: 50 deg C
• Bearing Type: Sealed Ball
• Brand: Regal Beloit
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Efficiency Group: High
• Enclosure Design: Open Dripproof
• Finish Color: Black Lacquer
• Flange Material: Aluminum
• Frame: 56J
• Frequency Rating: 60 Hz
• Full Load Amps: 14.5-13.8 A
• HP: 3
• Insulation Class: B
• Item: Two-Compartment Pool Filter Motor
• Motor Design: Capacitor Start/Run
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Thermal Protection: Automatic Reset
• Mounting Type: C-Face
• Numberof Speed: 1-Speed
• Overall Length: 14.19 Inch
• Phase: 1-Phase
• RPM: 3450
• Service Factor: 1.15
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Length: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: CSA Certified
• Sub Brand: Century®
• Thrust Horsepower: 3.45
• Type: Full-Rated, CP
• Voltage Rating: 208-230 V
• Voltage: 208V,230V
• Application: Pool
• Horsepower: 3 horse power
• Motor Enclosure Type: Drip Proof
• Motor Speed: 1-Speed
• Commercial, Residential, or Professional: Residential
• RPMs Min: 3450
• Motor Capacitor Type: Start,Run
• RPMs Max: 3450
• Frequency Rating (Hz): 60
• UL Listed: Yes
• TAA/BAA Compliant: Yes
• Product Category: Pump Motors
• Cross Reference #: ST1302,SPX1625Z1M, C218-195, SPX1625Z1MNS,SPX1630Z1BNS
• Manufacturer: Century Motors
