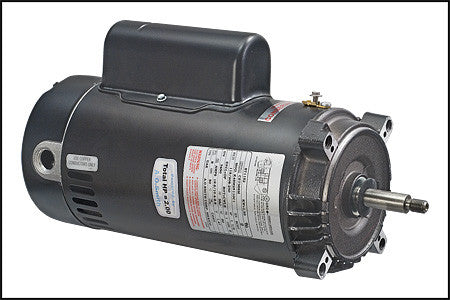

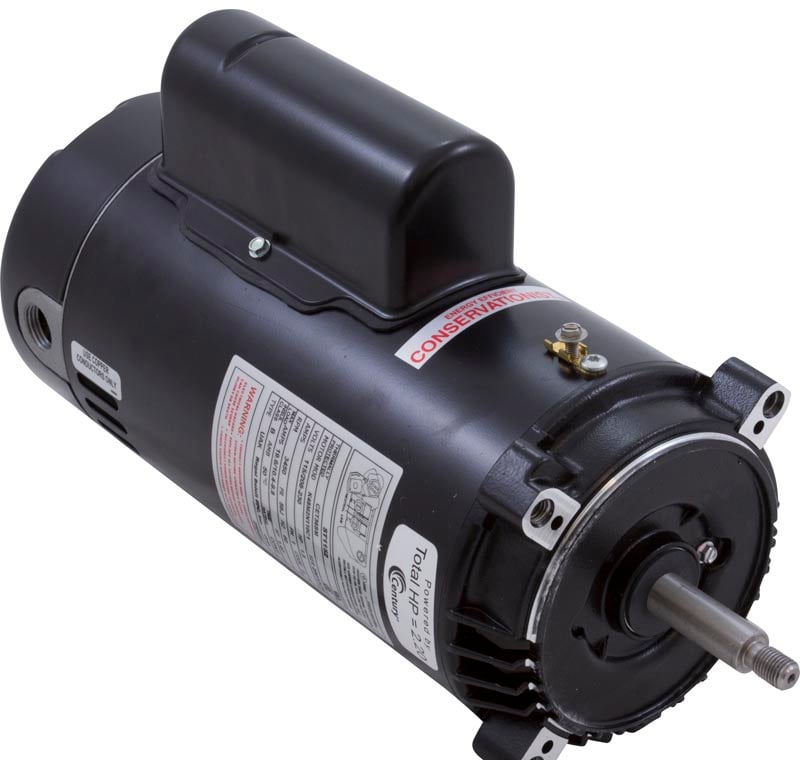

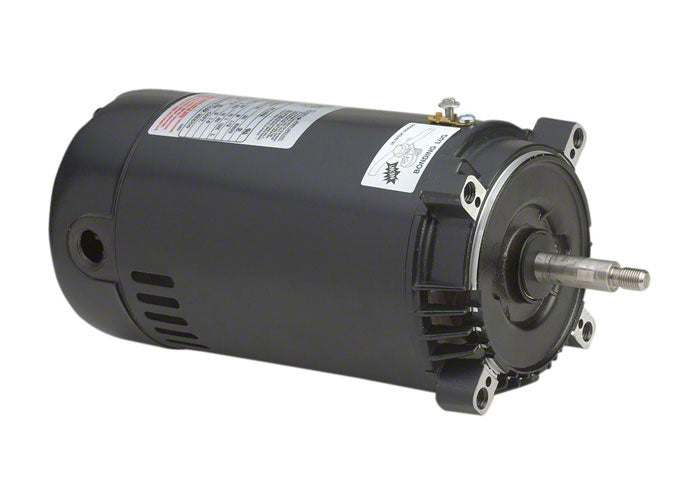

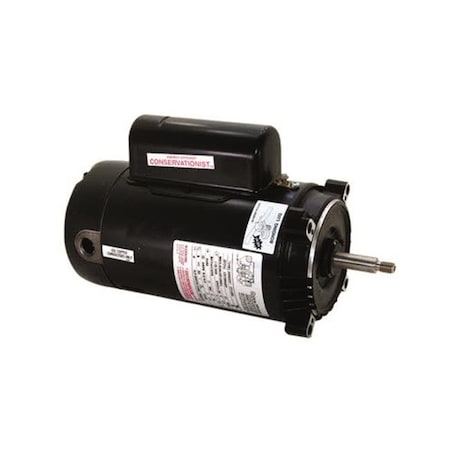

Regal Beloit ST1152 AO Smith Motor 1.5 HP Single Speed Motor 230 - 115 Volt

Product Description

The Regal Beloit ST1152 AO Smith Motor is a 1.5 HP single-speed motor designed for pool pump applications. It operates on 115/208-230 volts and features an open drip-proof enclosure. This motor is thermally protected and suitable for continuous operation. It is designed to meet the demands of pool and spa environments.

• 1.5 HP
• Single Speed
• 230 - 115 Volt

Product Highlights

This Regal Beloit motor provides reliable performance for pool filtration systems. It features a 56J frame and is suitable for continuous operation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: ST1152
• Country of Origin: China

Technical Specifications

• HP: 1.5
• Service Factor: 1.47
• Phase: 1
• Frequency: 60 Hz
• RPM: 3450
• Rotation: CWLE
• Voltage: 115/208-230 V
• Current: 19.6/10.4-9.8 A
• Time: Cont
• Enclosure: Odp
• Thermally Protected: Yes
• Code: H
• Insulation Class: B
• Ambient Temperature: 50 deg C
• Frame: 56J
• Thermal Protection: Automatic
• Duty: Continuous
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Starting Method: Across The Line
• Poles: 2
• Motor Shaft Rotation: CCWPE
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 7/16 Thread
• Overall Length: 15.19 in
• Frame Length: 9.25 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.563 in
• CAT: ST1152
• MODEL: K48M2N110C1
• Full Load Amps: 19.6/10.4-9.8 A
• Bearing Type: Sealed Ball
• Efficiency Group: High
• Enclosure Design: Open Dripproof
• Finish Color: Satin Black
• Flange Material: Aluminum
• Motor Design: Capacitor Start/Run
• Shaft Design: Threaded
• ShaftL ength: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
• Sub Brand: Century®
• Thrust Horsepower: 2.25
• Voltage Rating: 115/208-230 V
• Mounting Type: C-Face
