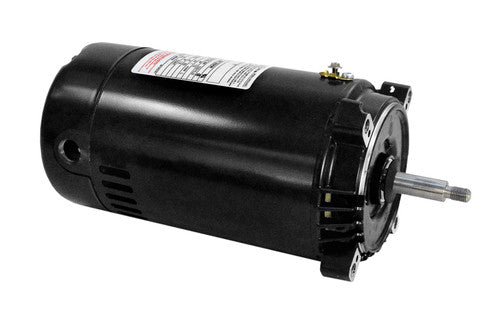

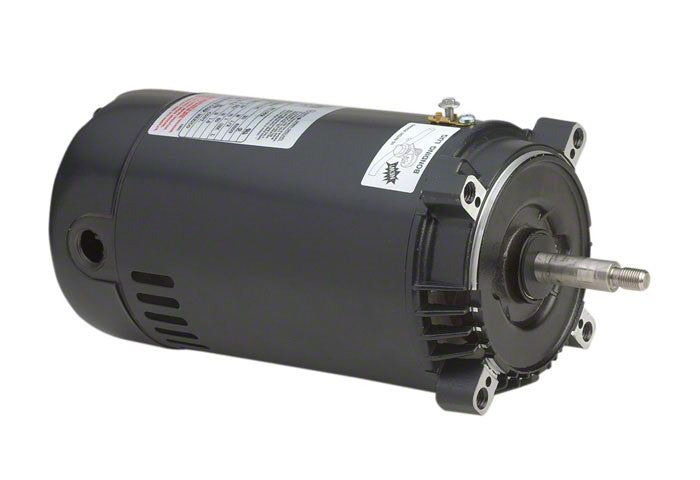

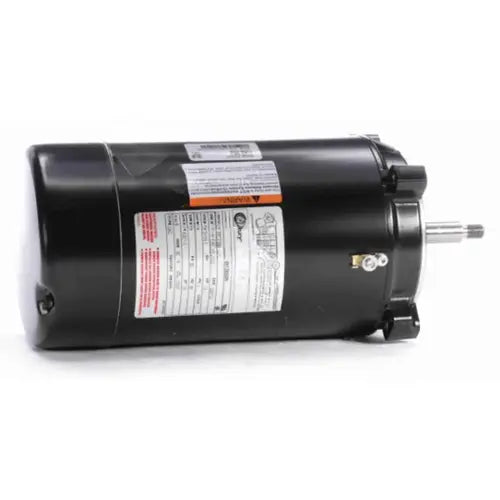

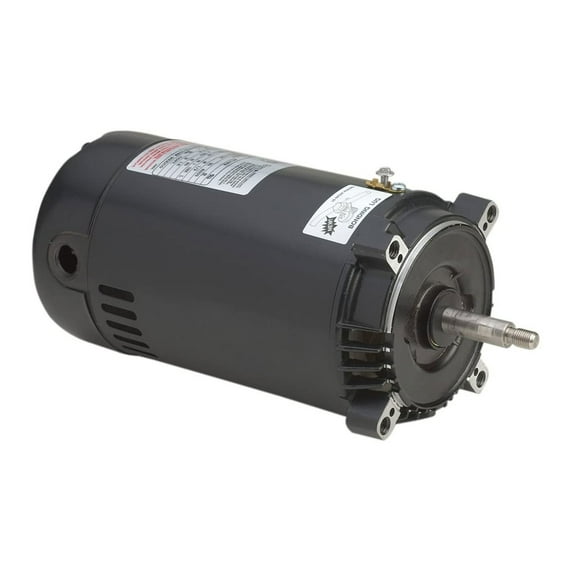

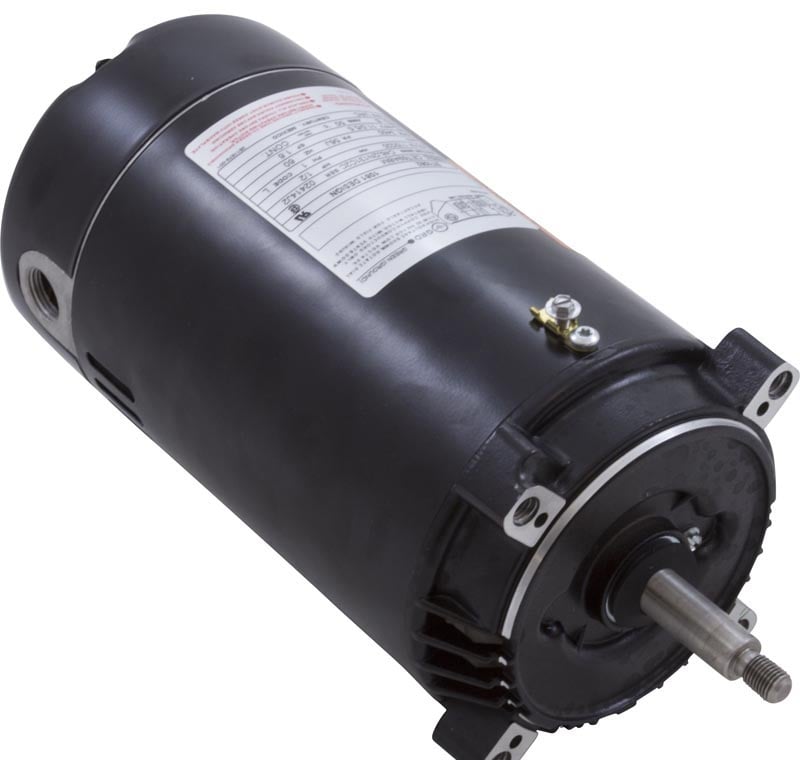

Regal Beloit ST1052 Pool Filter Motor 0.50 HP

Product Description

The Regal Beloit ST1052 0.50 HP C-Face Flange Pool Filter Motor is engineered for pool duty. This single-speed, energy-efficient motor features a 303 stainless steel threaded shaft and operates at a 50-degree Celsius ambient temperature. It includes sealed ball bearings, a sealed switch design, and an open drip-proof enclosure. Operates at 115/230V and 3450 RPM.

• Pool motor
• 50-Degree C ambient temperature
• 303 stainless steel threaded shaft.

Product Highlights

This 0.50 HP motor is designed for pool filter applications, featuring a durable stainless steel shaft and open drip-proof enclosure.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: ST1052

Technical Specifications

• Output: 0.50 HP
• Speed: 3450 RPM
• Voltage: 115/230
• Amperes: 11.0/5.5
• Frame: 56J
• Rotation: Counterclockwise Pump End
• Frequency: 60 Hz
• Bearing Shaft End: 304
• Ambient Temperature: 50 deg C
• Shaft: 303 stainless steel threaded shaft
• Enclosure: Open Dripproof
• Overall Length: 13.19 inches
• Frame Length: 7.25 inches
• Shaft Extension: 2.562 inches
• Shaft Diameter: 5/8 Inch
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Design: Capacitor-Start
• Motor Efficiency Group: Standard Efficient
• Motor Enclosure Design: Open Dripproof
• Motor Flange Material: Aluminum
• Motor Mounting Type: Face
• Motor Service Factor: 1.6
• Motor Shaft Rotation: CCWPE
• Motor Sub Application: Pool and Spa Pump
• Motor Thermal Protection: Automatic Reset
• Nameplate RPM: 3450
• Phase: 1
• RPM Range: 3001-3600
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
• Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
• Insulation Class: B
• Duty Cycle: Continuous
• Efficiency Group: Standard
• Number of Speed: 1-Speed
• Motor Speed: 1-Speed
• Motor Frame Size: 56J
• Motor Capacitor Type: Start
• Electric motor type: AC Motor
• Electrical phase: Single Phase
• Maximum motor speed: 3450 rpm
