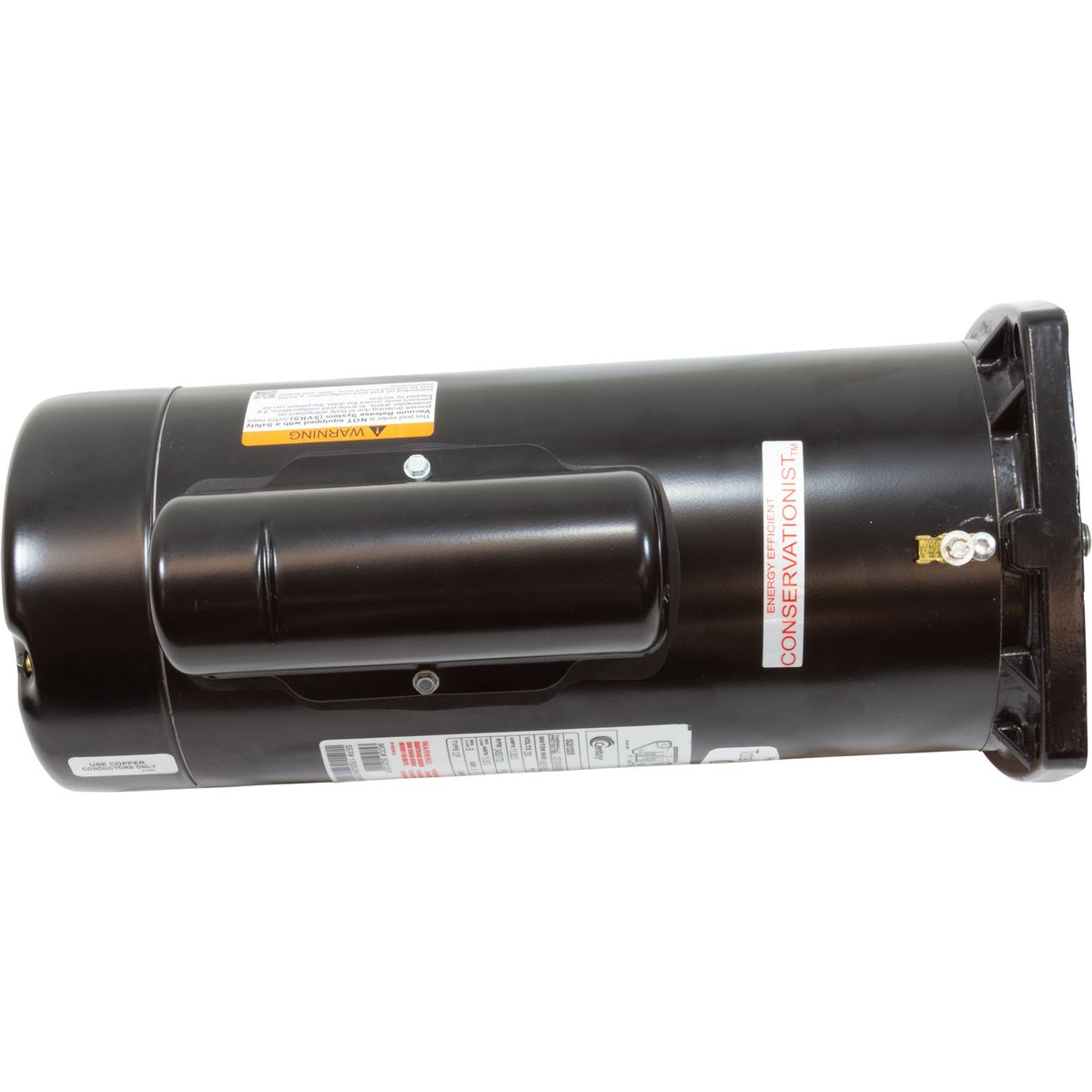

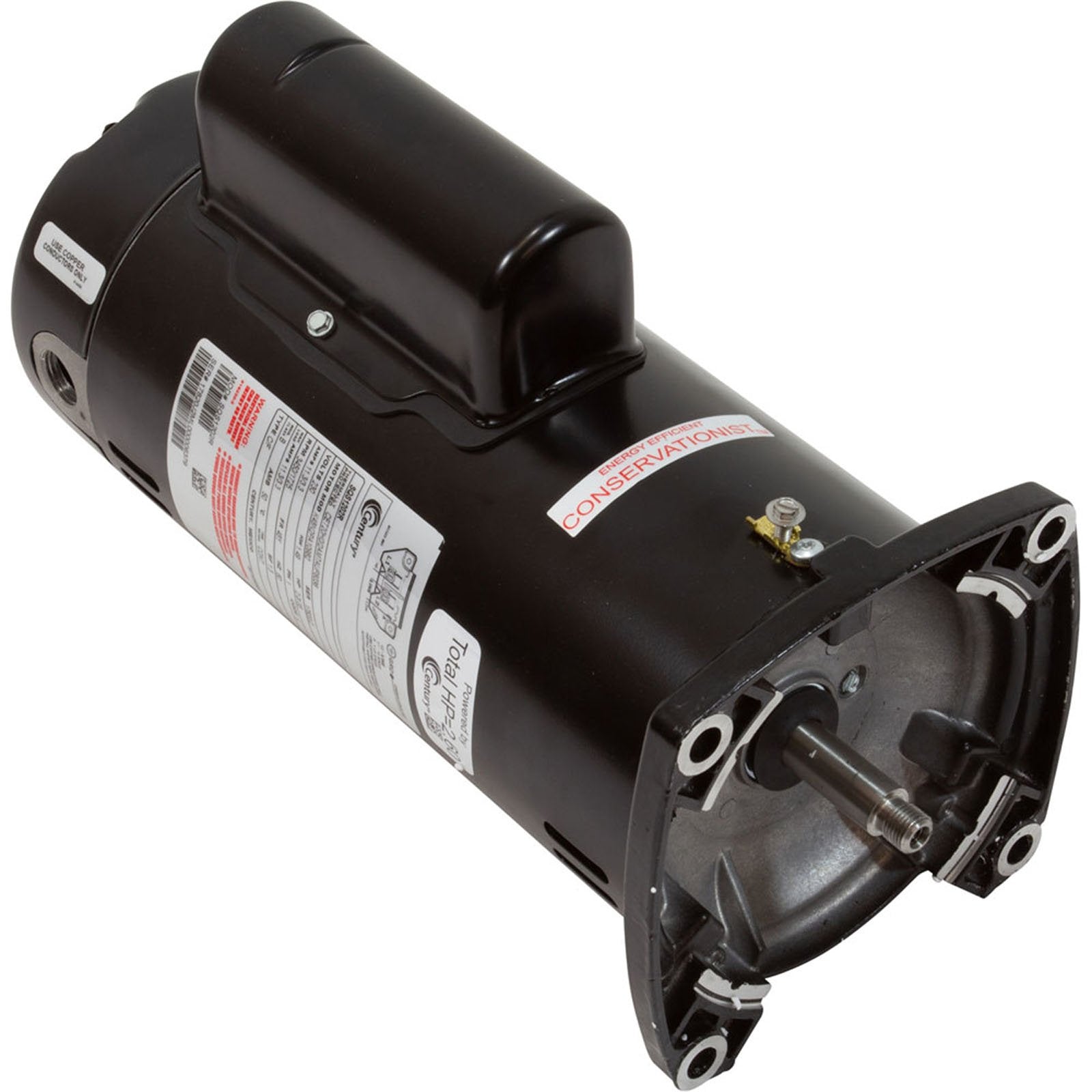

Regal Beloit SQS1202R Pool Filter Motor 2.0/.33 HP

Product Description

The REGAL BELOIT SQS1202R is a 2.0/.33 HP pool filter motor with all copper windings and auto protector single phase. It features an open drip proof design and CCW pump end rotation. Designed with Class B insulation, this motor is suitable for 50 C ambient temperatures and is UL1081 compliant.

• All Copper Windings
• Auto Protector - Single Phase
• Open Drip proof

Product Highlights

This energy efficient capacitor start motor is designed for low speed PSC high speed applications with a 303 stainless steel threaded shaft.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SQS1202R
• Country of Origin: United States

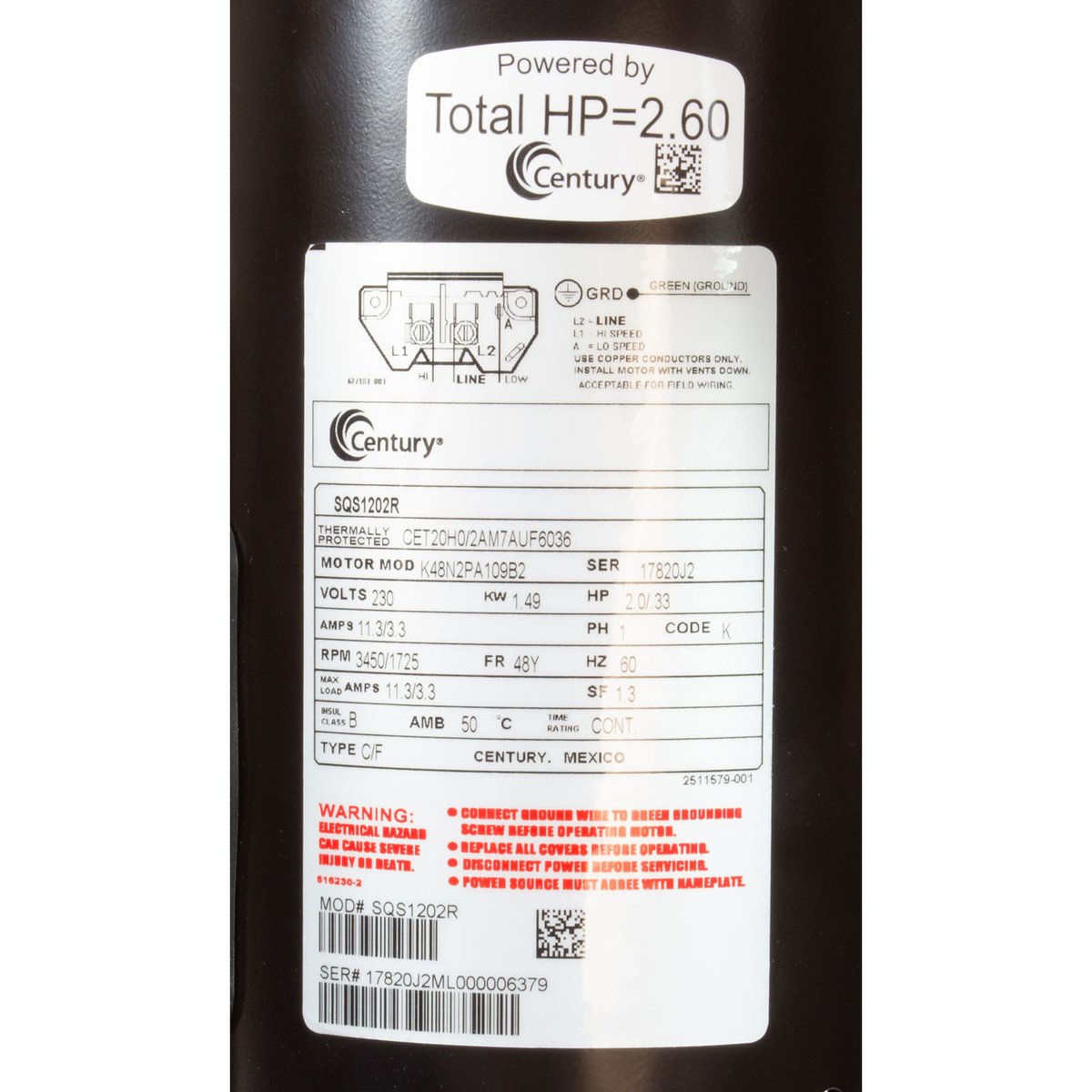

Technical Specifications

• Rotation: CCW Pump End
• Insulation Class: Class B
• Ambient Temperature: 50 deg C
• UL Standard: UL1081
• Frequency: 60 Hz
• Shaft Material: 303 Stainless Steel
• Motor Type: Energy Efficient Capacitor Start Low Speed PSC High Speed
• Horsepower: 2/0.33 HP
• Application: Many Sta-Rite®, Red Jacket, and Sears Jet and Pool Pumps
• Bearing Type: Ball
• Diameter: 5-5/8 Inch
• Duty Cycle: Continuous
• Efficiency Group: High
• Enclosure Design: Open Dripproof
• Finish Color: Satin Black

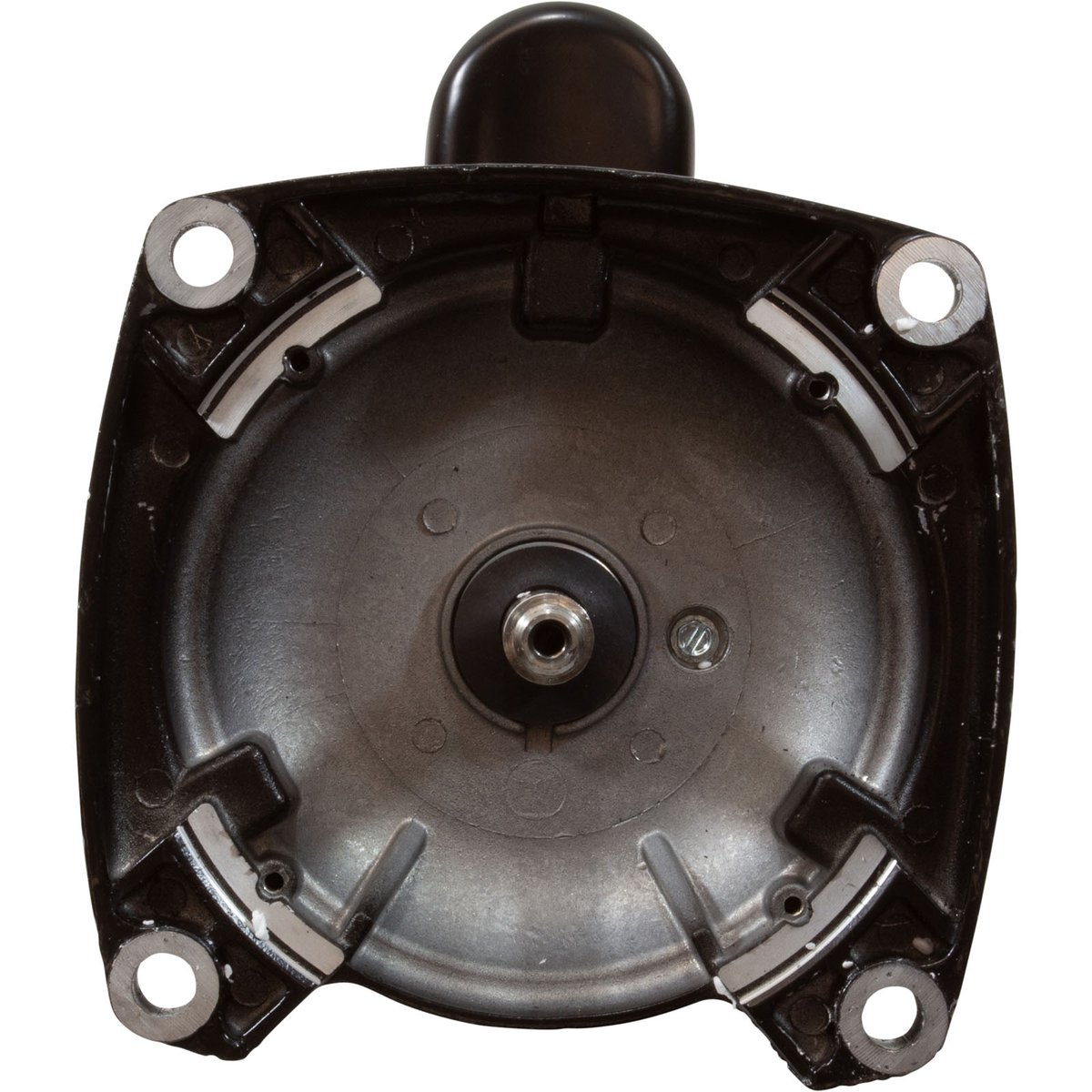

• Flange Type: Square
• Frame: 48Y
• Full Load Amps: 11.3/3.3 A
• Item: Two-Compartment Pool Pump Motor
• Moto Design: Capacitor Start on Low Speed, PSC on High Speed
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face
• Number of Speed: 2-Speed
• Overall Length: 13.81 Inch
• Phase: 1-Phase
• RPM: 3450/1725
• Service Factor: 1.30
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Standards Approvals: UL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008
• Sub Brand: Century®
• Type: Full-Rated, F/C
• Voltage Rating: 230 V
• Motor Design: Energy Efficient Capacitor Start Low Speed, PSC High Speed
• Motor Amperage: 11.3A/3.3A
• Voltage: 230v
• Speed: 2 Speed (2-Spd)
• Motor Shaft Type: Threaded
• Motor Style: Square Flange

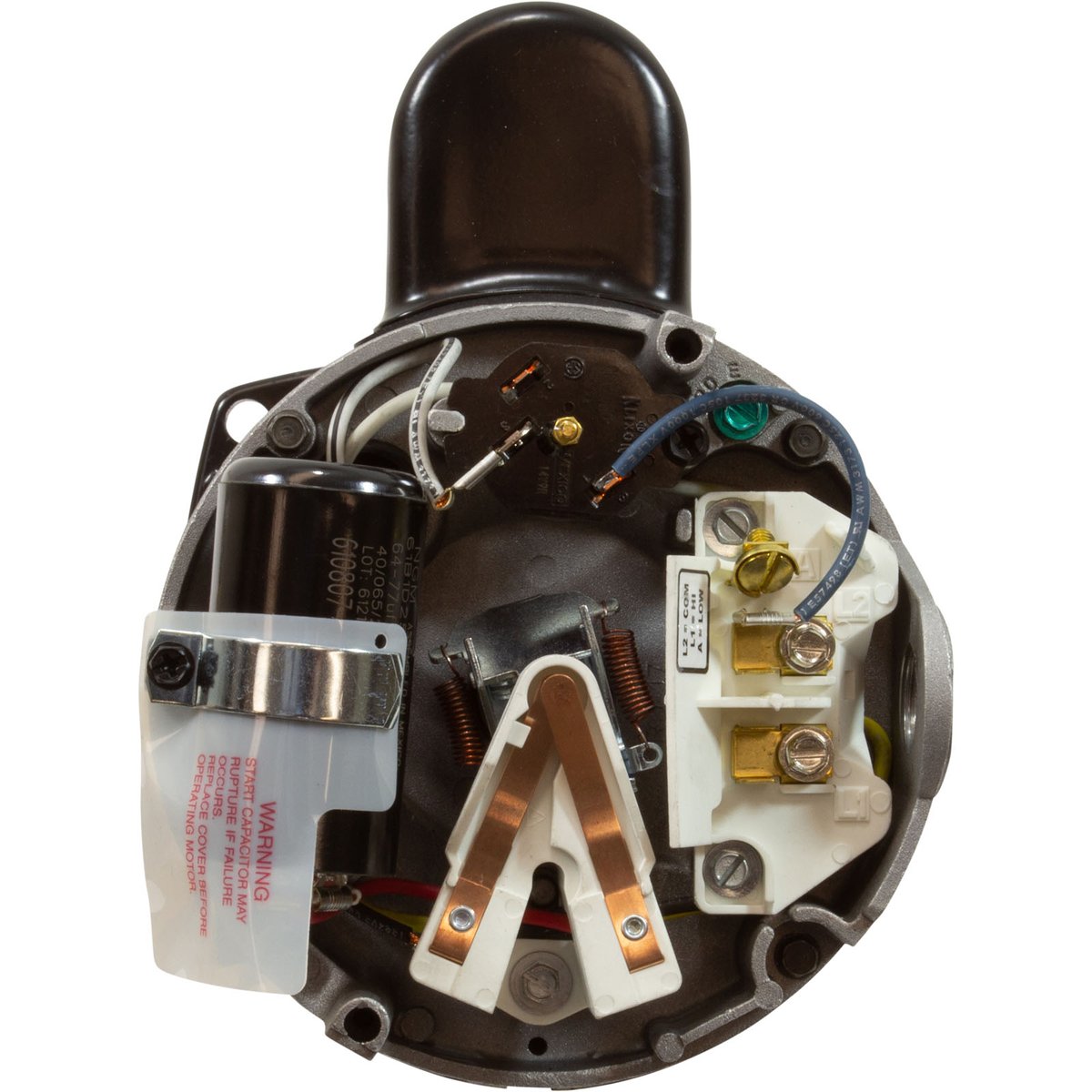

• Capacitor On Top: Yes
• Manufacturer: AO Smith/Century/Regal Beloit
