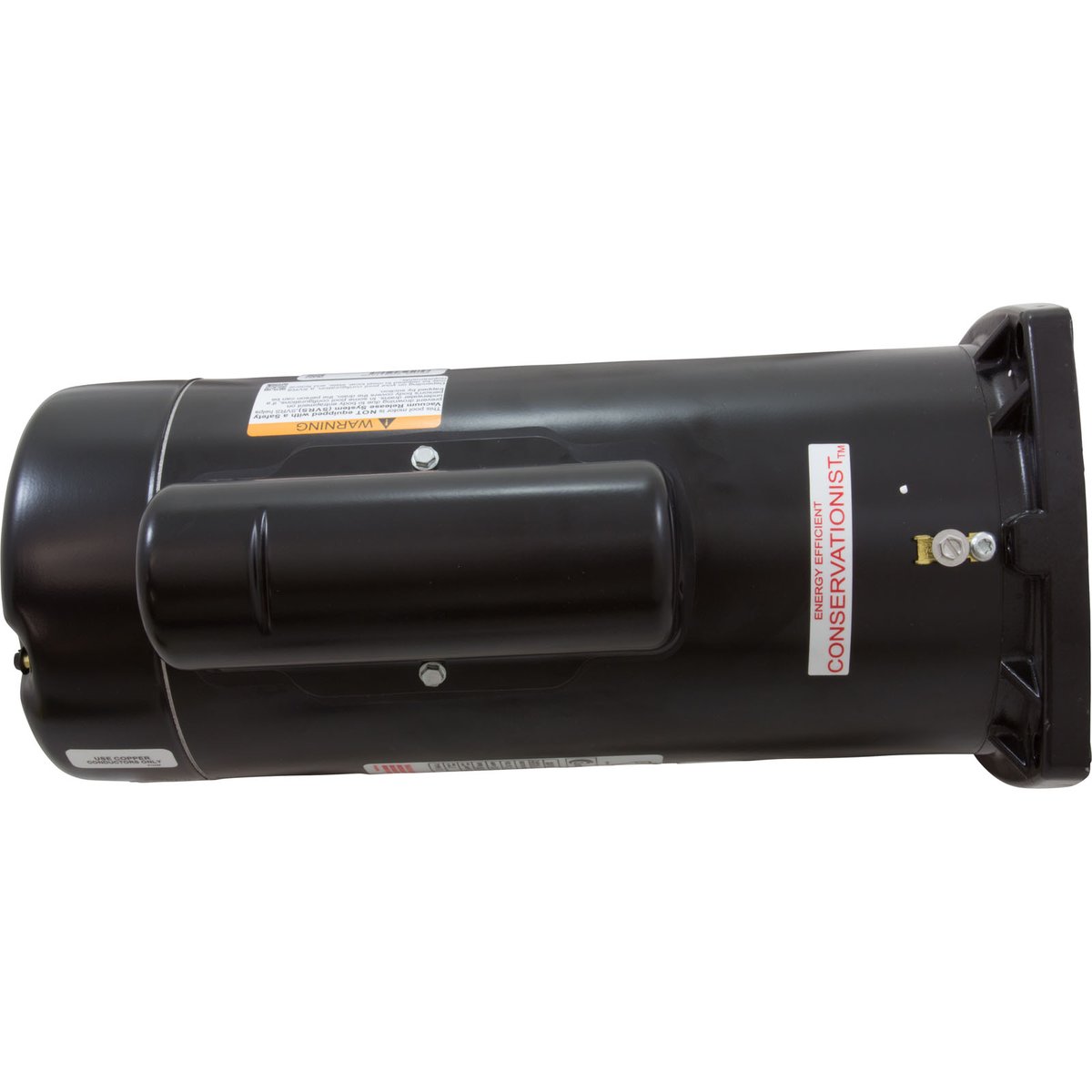

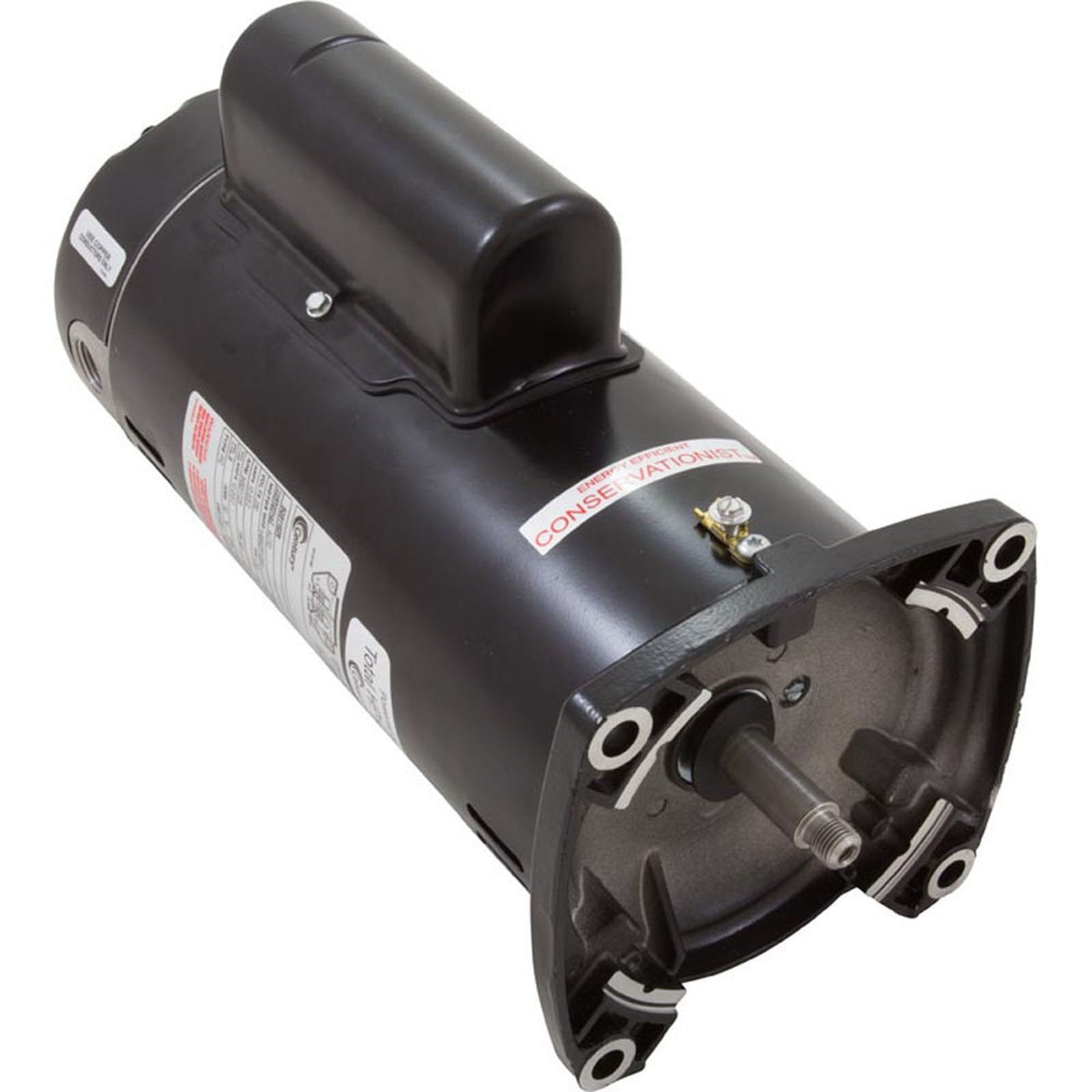

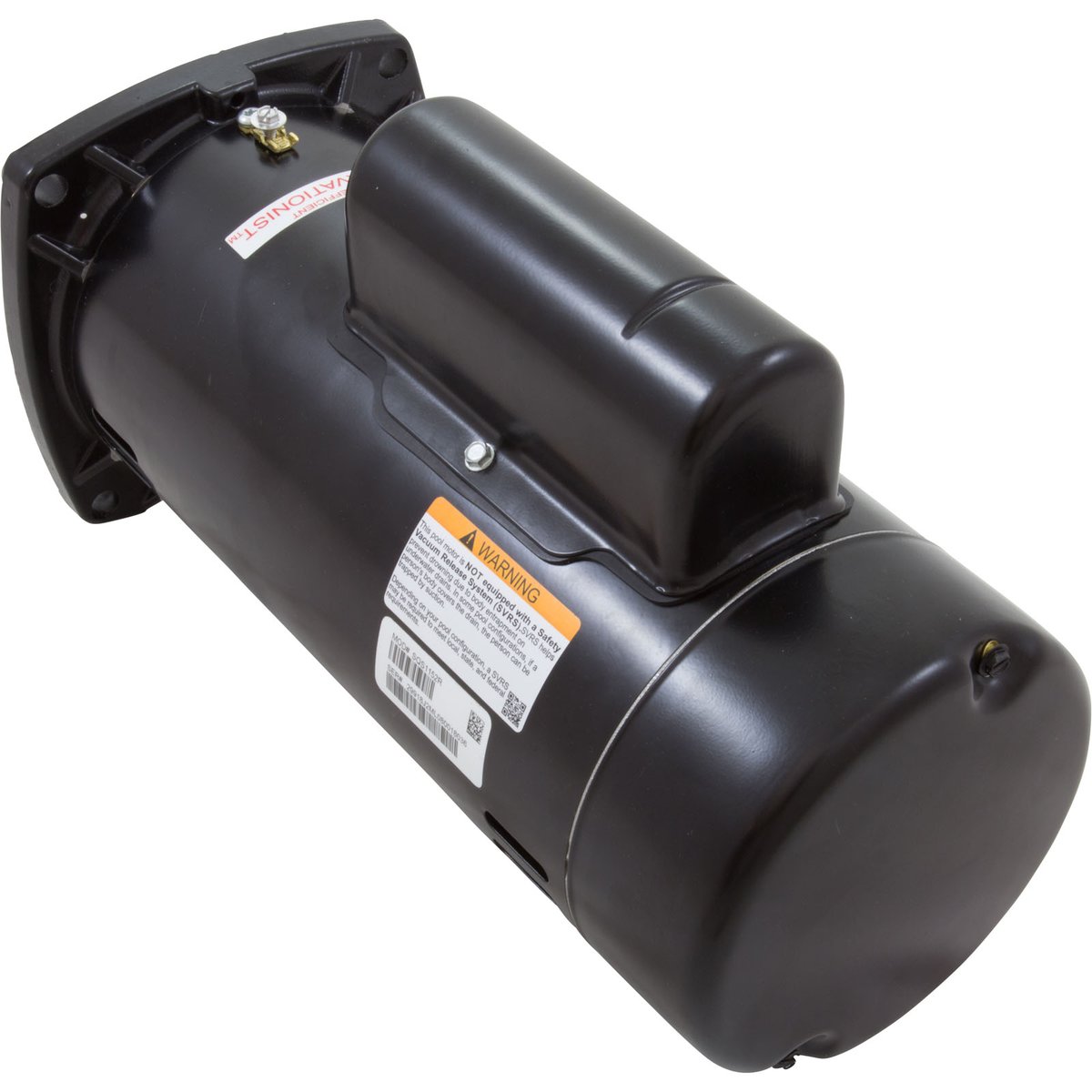

Regal Beloit SQS1152R Pump Motor 1.5/.19 HP 2-Speed

Product Description

The REGAL BELOIT SQS1152R is a 1.5/.19 HP, two-speed pool pump motor with a square flange design. It operates at 230V and 60 Hz, with speeds of 3450/1725 RPM. Features include a 48Y frame, open drip-proof enclosure, and thermal protection. Suitable for residential and commercial pool and spa applications.

• Two Speed
• All Copper Windings
• Energy Efficient

Product Highlights

This motor is energy efficient and features all copper windings. It is designed for pool and spa applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SQS1152R
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1.5/.19 Hp
• Output KW: 1.1 kW
• Voltage: 230 V
• Speed: 3450 & 1725 RPM
• Service Factor: 1.47
• Frame: 48Y
• Enclosure: Open Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 deg C
• Frequency: 60 Hz
• Current: 10.0/3.0 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 2
• Electrical Type: Psc Low Speed, Cap Start High Speed
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Square Flange
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Threaded
• Overall Length: 14.26 in
• Frame Length: 10.38 in
• Shaft Diameter: 0.625 inch
• Shaft Extension: 0.906 in
• Motor Type: Pool
• Motor Amperage: 10.0A/3.0A
• Motor Shaft Type: Threaded
• Motor Style: Square Flange
• Capacitor On Top: Yes
• Manufacturer: AO Smith/Century/Regal Beloit
• VoltageRating: 230 V
• MotorDesign: Capacitor Start on Low Speed, PSC on High Speed
• FullLoadAmps: 10.0/3.0 A
• SubBrand: Century®
• StandardsApprovals: UL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008
• RPM: 3450/1725
• MotorShaftRotation: CCWPE
• ShaftMaterial: 303 Stainless Steel
• InsulationClass: B
• ThrustHorsepower: 2.21
• HP: 1.5/0.19
• Type: Full-Rated, F/C
• Application: Many Sta-Rite®, Red Jacket, and Sears Jet and Pool Pumps
• FrequencyRating: 60 Hz
• NumberofSpeed: 2-Speed
• Diameter: 5-5/8 Inch
• Item: Two-Compartment Pool Pump Motor
• MotorThermalProtection: Auto
• Bearing Type: Ball
• FlangeType: Square
• Horsepower: 1.5 HP
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 2-Speed
• Motor Frame Size: 48Y
• Thrust HP: 2.21
• RPMs Min: 1725
• Motor Capacitor Type: Start
• Green or Energy Efficient Product: True
• RPMs Max: 3450
• Fountain, pond & pool pump type: In-Ground Pool Pump
• Pump operating phase: Single Speed
• Features: Energy Efficient
• Capacitor: 1.5 & 0.19 HP
• Motor Frame: 48Y
