Product Description

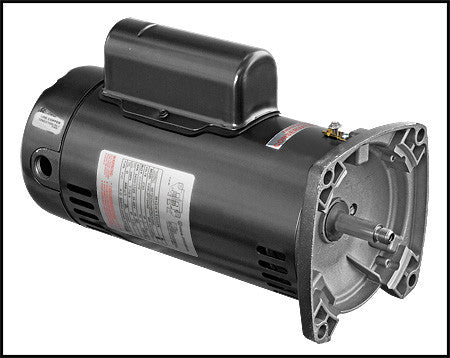

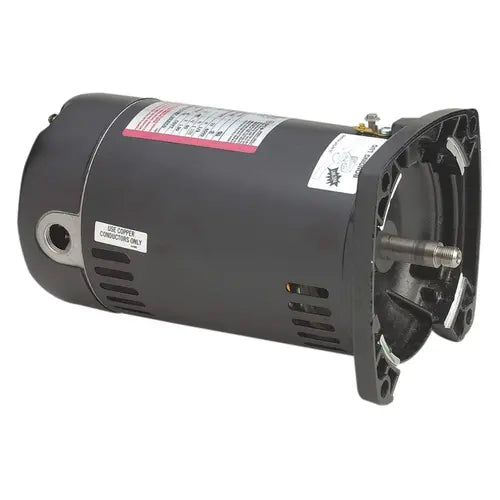

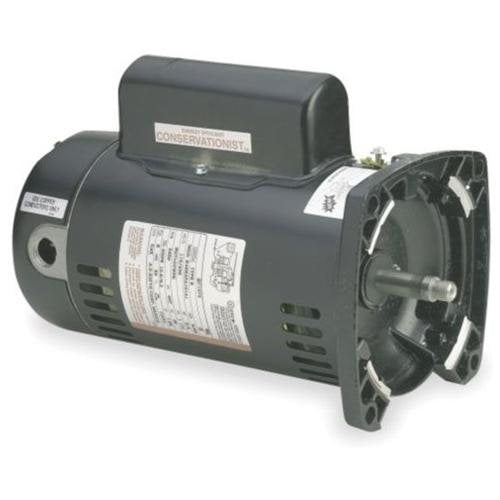

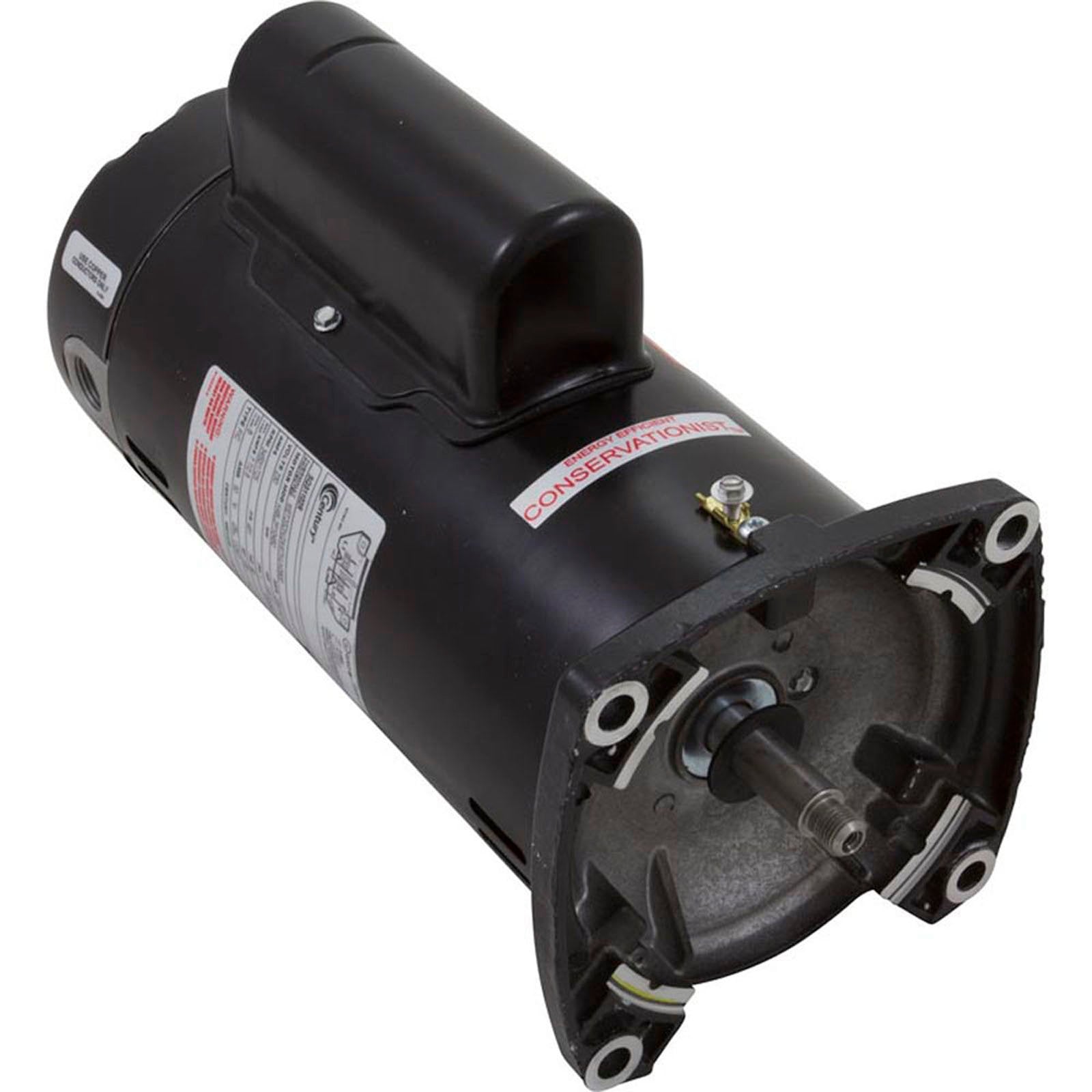

The REGAL BELOIT SQS1102R is a flanged motor with 1 HP and 2 speeds, operating at 230V. It is a square flange replacement motor commonly found in in-ground pool pumps such as PacFab Challenger, Whisperflo, Pentair, Sta-rite Dura Glas, Dyna Glas, and Max E Glas. The motor features a square type flange for pump mounting with 4 non-threaded bolt holes.
- Square Flange replacement in ground pool pump motor
- Two speed motor
- Motor has a square type flange for mounting the pump
Product Highlights
This 2-speed, 1 HP motor is designed for in-ground pool pumps and features a square flange for easy mounting.
Product Information
Standard Information
-
Brand: REGAL BELOIT
-
Manufacturer Part Number: SQS1102R
-
Country of Origin: United States
Technical Specifications
-
Frame: 48Y
-
Volts: 230V
-
Horsepower: 1 HP
-
Speed: 3450 RPM
-
Application: In ground pool pump motor
-
Brand: REGAL BELOIT AMERICA INC
-
Model: SQS1102R
-
Manufacturer: SCP Distributors LLC (Pool Corp)
-
Item Type Name: SQS1102R 1HP SQ FLNG 2SP
-
Voltage: 230 Volts
-
HP: 1 HP/1/6HP
-
Full Load Amps: 7.7/2.8 A
-
VoltageRating: 230 V
-
DutyCycle: Continuous
-
MotorDesign: Capacitor Start on Low Speed, PSC on High Speed
-
ServiceFactor: 1.65
-
SubBrand: Century®
-
StandardsApprovals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008
-
AmbientTemperature: 50 deg C
-
RPM: 3450/1725
-
ShaftDesign: Threaded
-
MotorShaftRotation: CCWPE
-
Phase: 1-Phase
-
ShaftMaterial: 303 Stainless Steel
-
MountingType: C-Face
-
InsulationClass: B
-
EfficiencyGroup: Standard
-
ThrustHorsepower: 1.65
-
Type: Full-Rated, F/C
-
ShaftDiameter: 5/8 Inch
-
FinishColor: Satin Black
-
FrequencyRating: 60 Hz
-
NumberofSpeed: 2-Speed
-
OverallLength: 13.81 Inch
-
Diameter: 5-5/8 Inch
-
Item: Two-Compartment Pool Pump Motor
-
MotorThermalProtection: Auto
-
Bearing Type: Ball
-
EnclosureDesign: Open Dripproof
-
FlangeType: Square
-
Motor Enclosure Type: Open Drip Proof
-
Motor Speed: 2-Speed
-
Commercial, Residential, or Professional: Residential
-
Motor Frame Size: 48Y
-
Thrust HP: 1.65
-
RPMs Min: 1725
-
RPMs Max: 3450
-
Frequency Rating (Hz): 60
-
Motor Shaft Rotation: Counterclockwise Pulley End
-
Amps High Speed: 7.7
-
Motor Thermal Protection: Automatic Reset
-
Motor Type: Pool
-
Motor Amperage: 7.7A/2.8A
-
Frame Type: 48Y
-
Total Horsepower: 1.65thp
-
Motor Shaft Type: Threaded
-
Motor Style: Square Flange
-
Capacitor On Top: Yes
