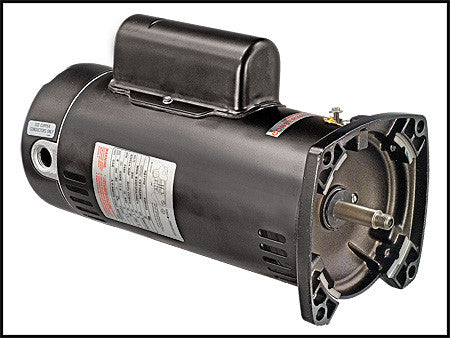

Regal Beloit SQ1202 Pool Pump Motor 2 HP 1 Ph 60 Hz 230 V 3600 RPM 48Y Frame ODP

Product Description

The REGAL BELOIT SQ1202 is a pool pump motor operating at 2 HP, 1 Ph, and 60 Hz, requiring 230 V and delivering 3600 RPM within a 48Y Frame with an Open Drip Proof enclosure. It is designed for continuous duty and features automatic thermal protection, suitable for ambient temperatures up to 50°C.

• Sealed Ball Bearings
• Capacitor Start
• Open Dripproof

Product Highlights

This motor features a 303 stainless steel shaft and is UL Recognized and CSA certified, ensuring efficient and reliable performance for pool pump applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SQ1202
• Country of Origin: Thailand

Technical Specifications

• Phase: 1
• Output HP: 2 Hp
• Output KW: 1.5 kW
• Voltage: 230 V
• Speed: 3450 rpm
• Service Factor: 1.1
• Frame: 48Y
• Enclosure: Open Drip Proof
• Thermal Protection: Automatic
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: 10.4 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Square Flange
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 THREADS
• Overall Length: 13.94 in
• Frame Length: 10.06 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 0.906 in
• Barrel Diameter: 5.5"
• RPM: 3450 Rpm
• True Rating: 2.6 Hp
