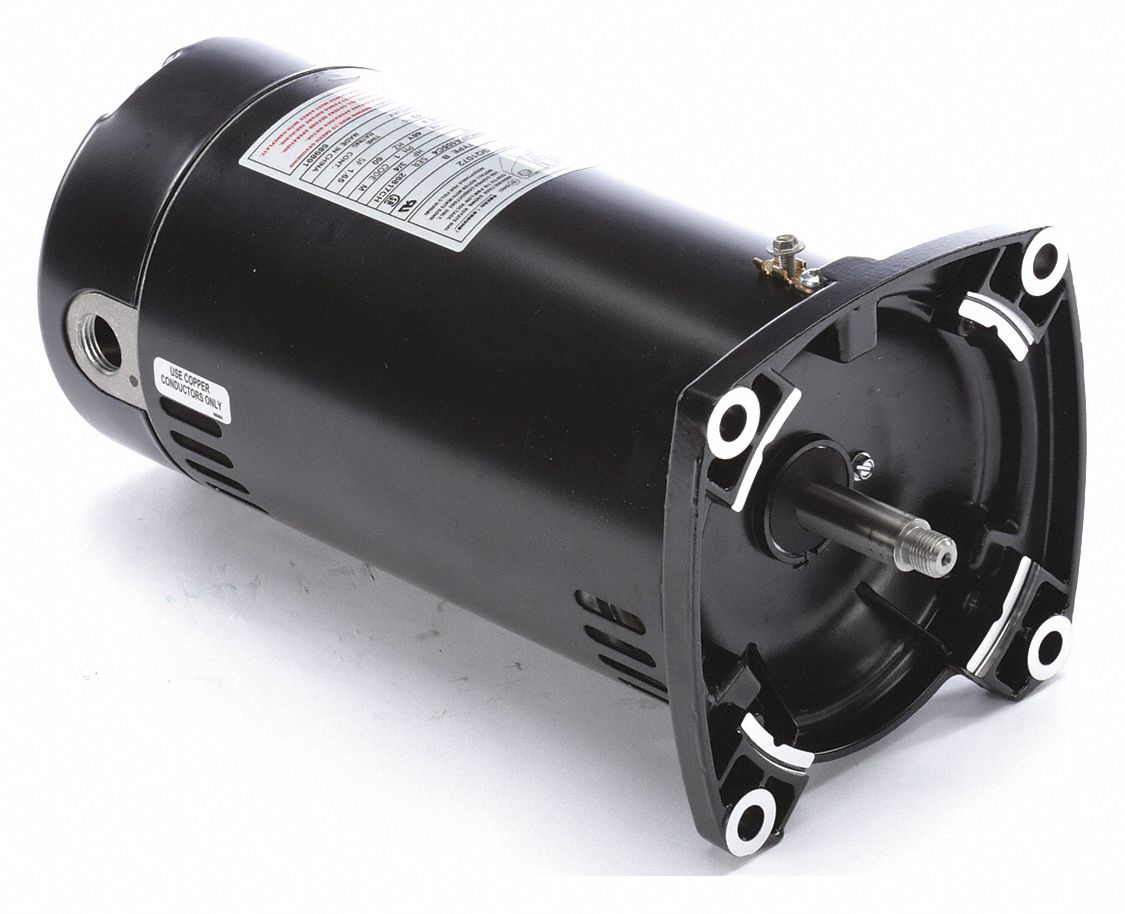

Regal Beloit SQ1152 Century Pool Pump Motor 1 1/2 HP 1 Ph 60 Hz 230 V 3600 RPM 48Y Frame ODP

Product Description

The REGAL BELOIT SQ1152 Century Pool Pump Motor is a 1 1/2 HP, single-phase motor designed for pool pumps. Operating at 230V and 60 Hz, it features a 48Y frame and open dripproof enclosure. With a speed of 3450 RPM, this motor is designed for continuous duty and provides reliable performance for residential pool circulation needs.

• Sealed ball bearings for smooth operation
• Capacitor start for high torque
• Open dripproof enclosure

Product Highlights

Reliable 1.5 HP motor for pool pumps, featuring sealed bearings and capacitor start. Ideal for maintaining optimal water flow and filtration in residential pools.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SQ1152
• Country of Origin: Thailand

Technical Specifications

• Phase: 1
• Output HP: 1 1/2 Hp
• Output KW: 1.1 kW
• Voltage: 230 V
• Speed: 3450 rpm
• Service Factor: 1.47
• Frame: 48Y
• Enclosure: Open Drip Proof
• Thermal Protection: Automatic
• Efficiency: 74.4 %
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: 10.4 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Thread
• Overall Length: 13.94 in
• Frame Length: 10.06 in
• Shaft Diameter (IN IN.): 0.625 IN
• Shaft Extension: 0.906 in
• Product Category: Pump Motors
• Manufacturer: Century Motors
