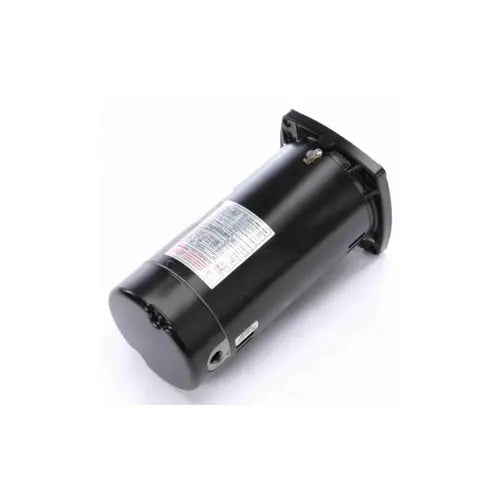

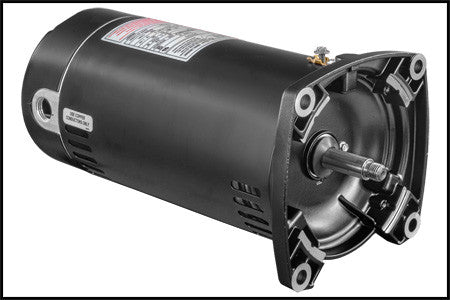

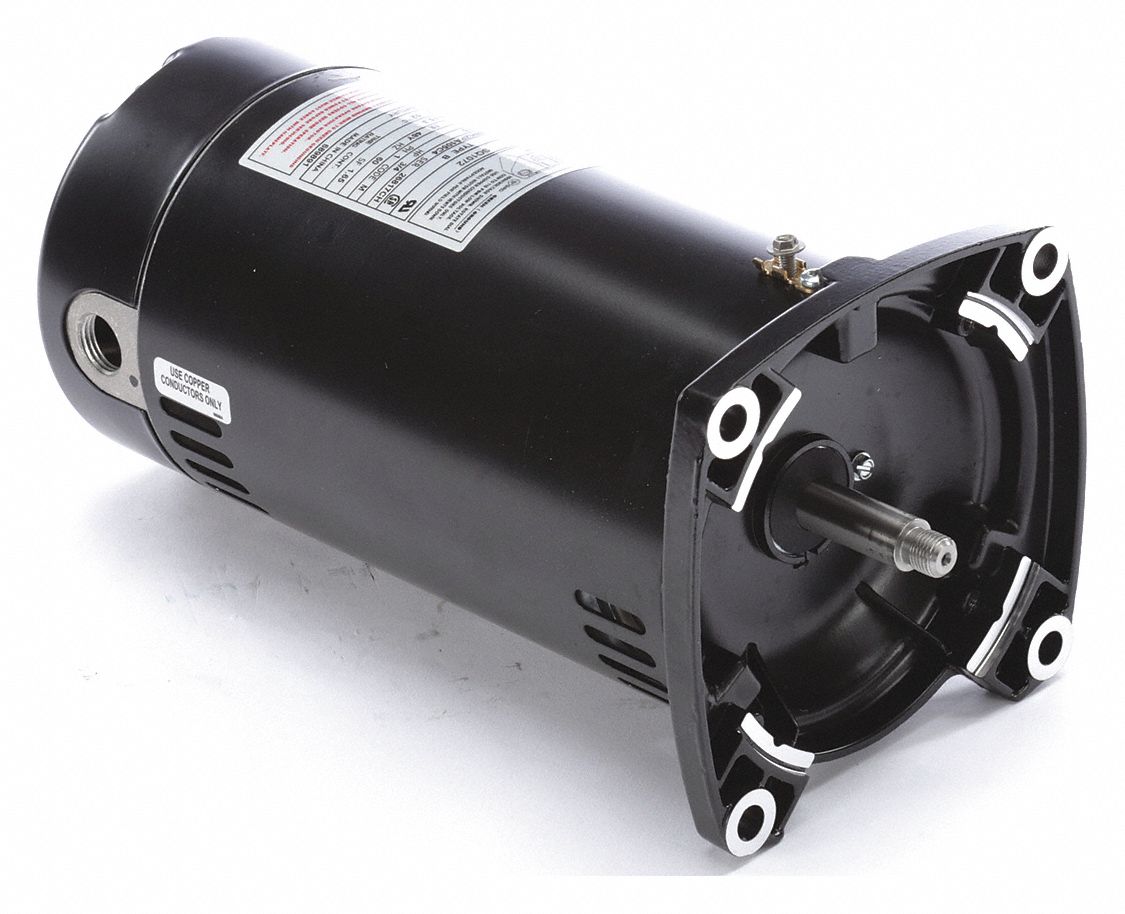

Regal Beloit SQ1072 two-compartment pool filter motor 0.75 hp

Product Description

The REGAL BELOIT SQ1072 is a two-compartment pool filter motor with 0.75 HP, designed for various applications including Sta-Rite, Red Jacket, Pac Fab, and American Products. It operates at 3450 RPM with a voltage rating of 115/230V and features a square flange for mounting. The motor has open dripproof enclosure and automatic thermal protection.

• Full-Rated, UAC motor with a 48Y frame.
• Designed with a threaded shaft and sealed ball bearings.
• Compliant with UL 1081, UL Recognized (E25022), and CSA Certified (LR43341) standards.

Product Highlights

This 0.75 HP motor is ideal for pool filter applications, providing reliable performance and protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SQ1072
• Country of Origin: USA

Technical Specifications

• Diameter: 5-5/8 Inch
• RPM: 3450
• Frame: 48Y
• Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
• Type: Full-Rated, UAC
• OverallLength: 12.13 Inch
• Brand: Regal Beloit
• Phase: 1-Phase
• Bearing Type: Sealed Ball
• AmbientTemperature: 50 deg C
• FrequencyRating: 60 Hz
• FullLoadAmps: 15.3/7.6 A
• HP: 0.75
• Item: Two-Compartment Pool Filter Motor
• MountingType: C-Face
• StandardsApprovals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
• SubBrand: Century®
• VoltageRating: 115/230 V
• EnclosureDesign: Open Dripproof
• ThrustHorsepower: 1.24
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorDesign: Capacitor Start
• FlangeType: Square
• ServiceFactor: 1.65
• MotorShaftRotation: CCWPE
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Frame Size: 48Y
• Amps Low Speed: 7.6
• Frequency Rating (Hz): 60
• Amps High Speed: 15.3
• Motor Thermal Protection: Automatic Reset
• Frame Size: 48Y
• UL Listed: Yes
• TAA/BAA Compliant: Yes
