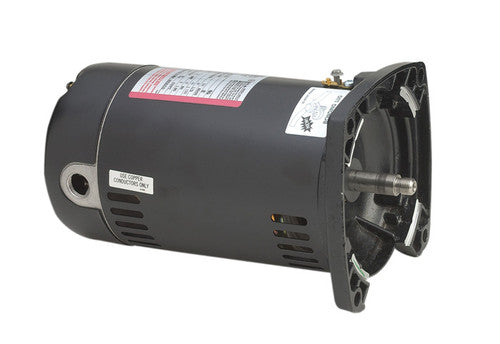

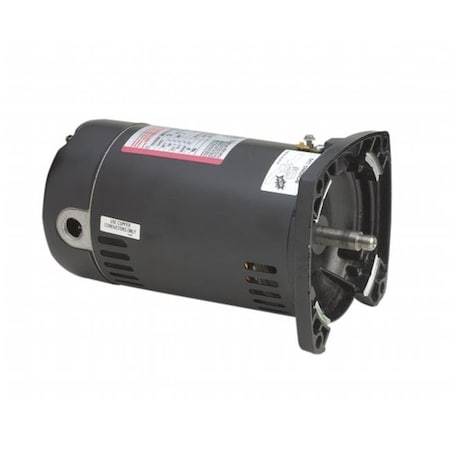

Regal Beloit SQ1052 0.5 HP Motor 3450 RPM 1.9 Service Factor

Product Description

The REGAL BELOIT SQ1052 pool motor is a 0.5 HP, single-phase motor designed for efficient pool water circulation. It operates at 3450 RPM with a 48Y frame and Open Drip Proof (ODP) enclosure, supporting dual voltage of 115/230V at 60 Hz. Features a 303 stainless steel threaded shaft and a 50-Degree C ambient temperature.

• Pool motor designed for efficient pool water circulation
• Features a 303 stainless steel threaded shaft
• Suitable for pool pump replacements

Product Highlights

This motor is ideal for pool pump replacements, offering durability and consistent performance. Its robust design ensures long-lasting operation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SQ1052
• Country of Origin: United States

Technical Specifications

• Diameter: 5-5/8 Inch
• RPM: 3450
• Frame: 48Y
• Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
• Type: Full-Rated, UAC
• OverallLength: 11.50 Inch
• Phase: 1-Phase
• Bearing Type: Sealed Ball
• AmbientTemperature: 50 deg C
• FinishColor: Satin Black
• FrequencyRating: 60 Hz
• FullLoadAmps: 13.4/6.7 A
• HP: 0.5
• Item: Two-Compartment Pool Filter Motor
• MountingType: C-Face
• StandardsApprovals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008
• SubBrand: Century®
• VoltageRating: 115/230 V
• EnclosureDesign: Open Dripproof
• ThrustHorsepower: 0.95
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorDesign: Capacitor Start
• FlangeType: Square
• ServiceFactor: 1.90
• MotorShaftRotation: CCWPE
• Voltage: 115/230 V
• Shaft Diameter: 0.625 inch
• Horsepower: 0.5 horse power
• Motor Enclosure Type: Open Drip Proof
• Motor Frame Size: 48Y
• RPMs Min: 3450
• Motor Capacitor Type: Start
• Shaft Design: 1/2 Threaded
• RPMs Max: 3450
• Amps Low Speed: 6.7
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 13.4
• Standards Approvals: CSA Certified
• Motor Thermal Protection: Automatic Reset
• HEIGHT: 9.01 IN
• LENGTH: 15.98 IN
• MOTOR ORIENTATION: Horizontal
• MOUNTING: Round
• NUMBER OF POLES: 2
• OUTPUT: 1/2 HP
• OVERLOAD: Automatic
• ROTATION: Counterclockwise Pump End
• SHAFT DIAMETER (IN IN.): 0.625 IN
• SHAFT EXTENSION: 0.906 IN
• SHAFT TYPE: 1/2 Thread
• UL: Recognized
• WEIGHT: 19 LB
• WIDTH: 9.13 IN
