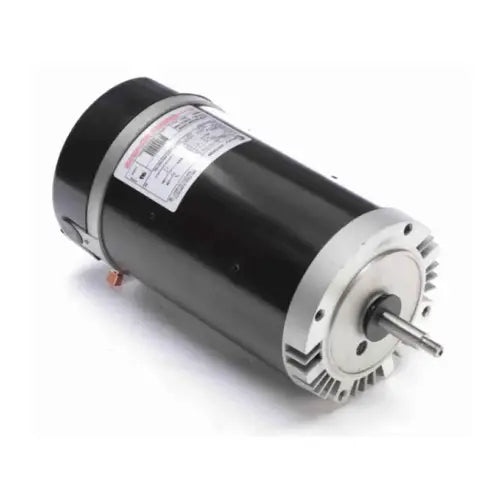

Regal Beloit SN1202 Odp Northstar Pool And Spa Pump Motor 2 HP

Product Description

The REGAL BELOIT SN1202 is a full-rated replacement pool and spa pump motor. This 2 HP motor operates at 3450 RPM with a voltage of 208-230 V and a 56J frame. It features a threaded shaft and is designed for Hayward Northstar pumps.

• Switchless design
• Energy efficient
• E-coated main frame for superior corrosion resistance

Product Highlights

This motor provides reliable power for pool and spa applications, ensuring efficient operation and longevity.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SN1202

Technical Specifications

• Voltage Rating: 208-230 V
• Duty Cycle: Continuous
• Motor Design: PSC
• Frame: 56J
• Full Load Amps: 13.0-11.8 A
• Service Factor: 1.35
• Brand: Regal Beloit
• Sub Brand: Century®
• Standards Approvals: UL Approved
• Ambient Temperature: 50 deg C
• RPM: 3450
• Shaft Design: Threaded
• Motor Shaft Rotation: CCWPE
• Phase: 1-Phase
• Flange Material: Aluminum
• Shaft Material: 303 Stainless Steel
• Mounting Type: C-Face
• Insulation Class: B
• Efficiency Group: High
• HP: 2
• Type: Full-Rated, CX
• Shaft Diameter: 5/8 Inch
• Application: Hayward Northstar™ Pumps
• Finish Color: Black
• Frequency Rating: 60 Hz
• Overall Length: 14.60 Inch
• Diameter: 6-1/2 Inch
• Item: Replacement Pool and Spa Pump Motor
• Shaft Length: 2-9/16 Inch
• Motor Thermal Protection: Auto
• Bearing Type: Ball
• Enclosure Design: Open Dripproof
• P/N: SN1202
• OEM: Regal Beloit America, Inc. (Century Electric Motors)
• OEM #: SN1202
• Hz: 60
• Ins. Class: B
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Efficiency Group: Energy Efficient
• Motor Flange Material: Aluminum
• Motor Mounting Type: Face
• Motor Sub Application: Pool and Spa Pump
• Nameplate RPM: 3450
• RPM Range: 3001-3600
• Shaft: Threaded 7/16-20 UNF-2A RH
• Standards: CSA Certified, UL Recognized
• Voltage: 208-230
• Voltage Compatibility: 115/208-230, 208-230, 208-240
