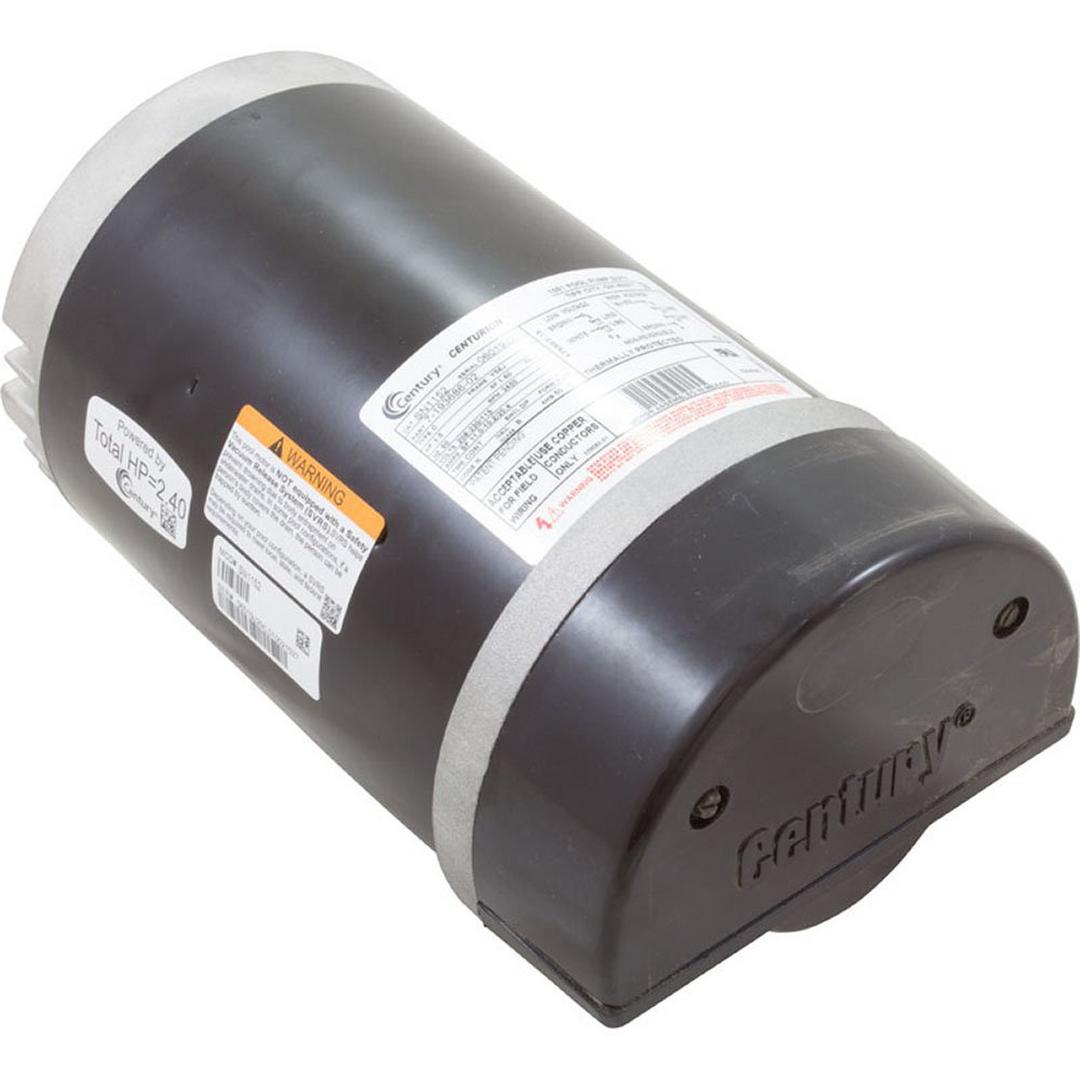

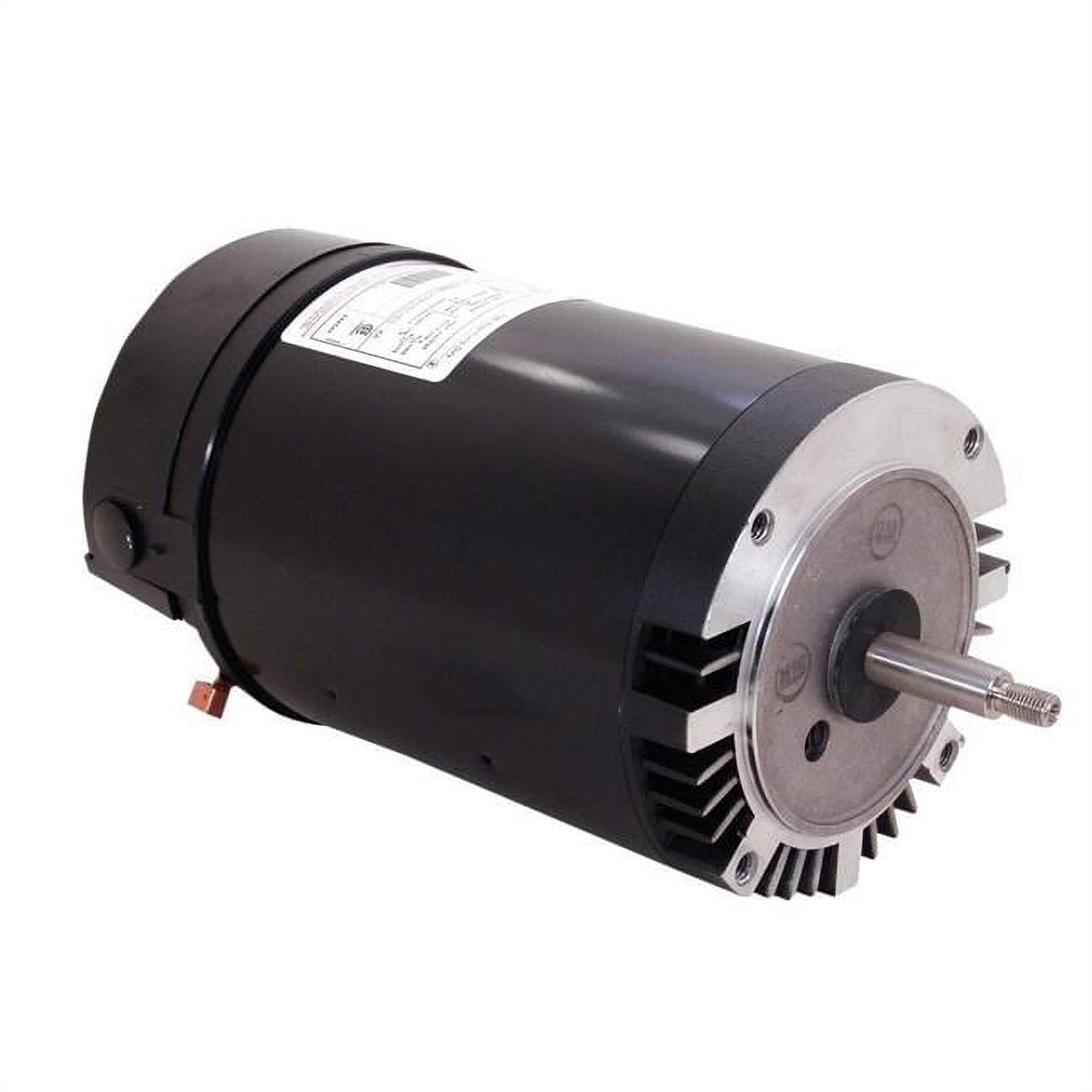

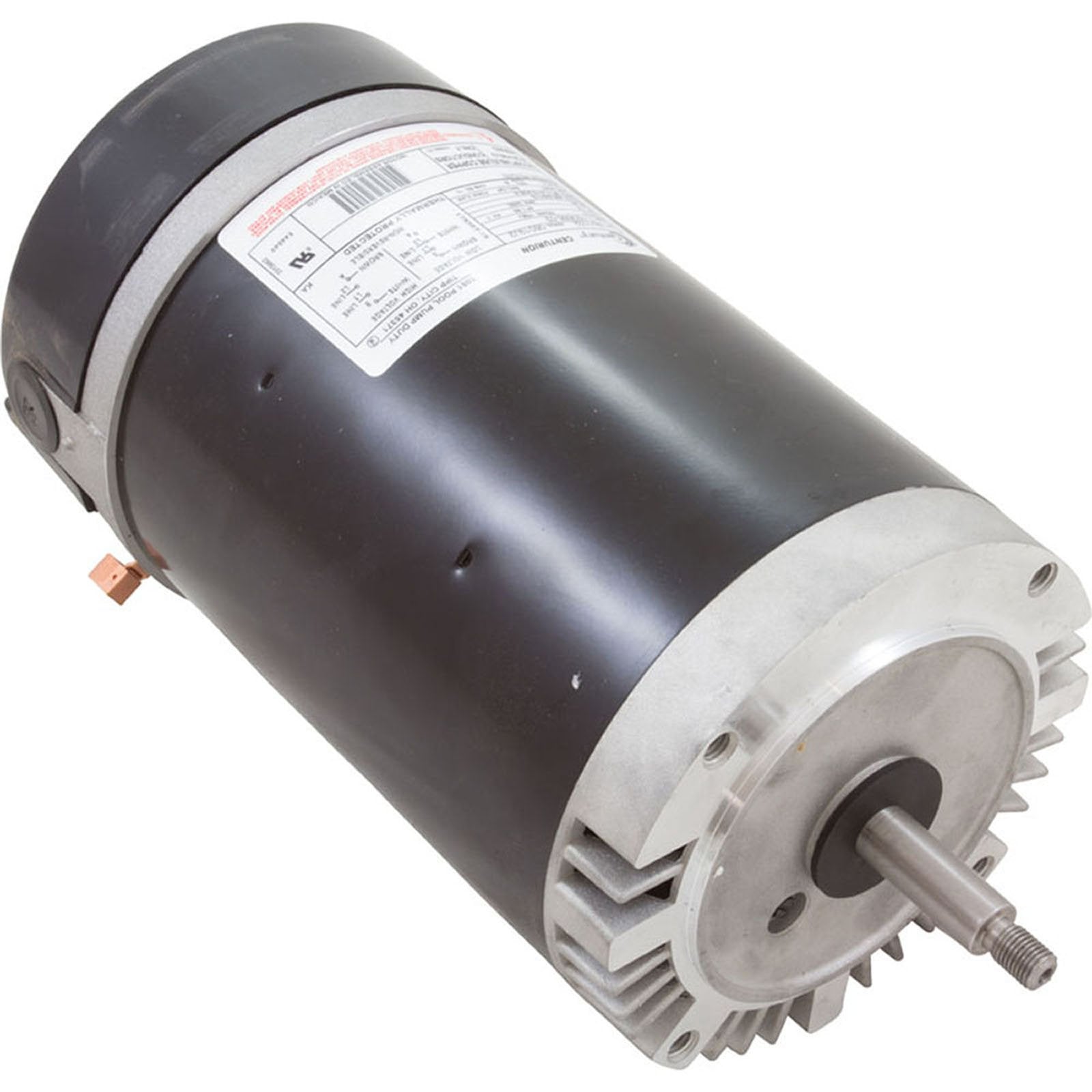

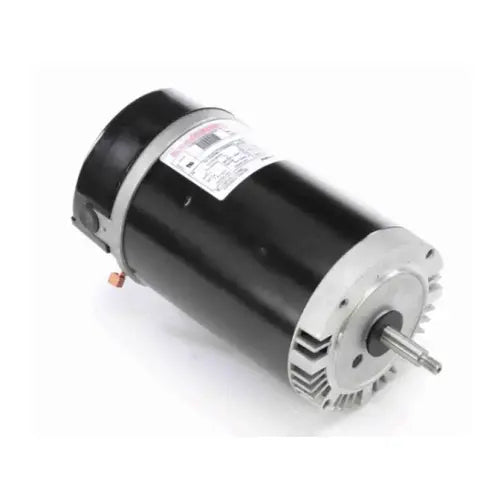

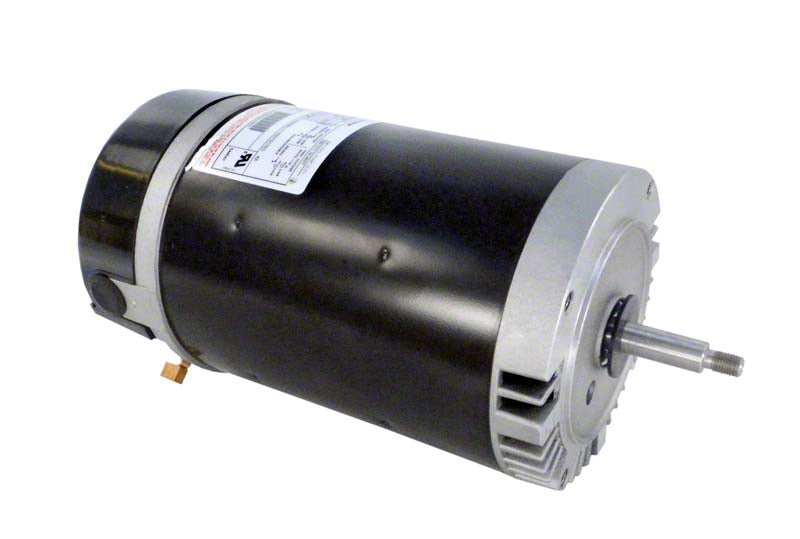

Regal Beloit SN1152 Odp Northstar Pool and Spa Pump Motor 1.5 hp

Product Description

The REGAL BELOIT SN1152 is a full-rated replacement pool and spa pump motor. This 1.5 HP motor operates at 3450 RPM with a voltage rating of 115/208-230 V and a 56J frame. It features a threaded shaft and is designed for Hayward Northstar pumps.

• Energy efficient
• E-coated main frame for superior corrosion resistance
• Cool running for longer winding life

Product Highlights

This motor is switchless, operates with low noise, and has a 7/16-20 UNF-2A RH threaded shaft.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SN1152

Technical Specifications

• Diameter: 6-1/2 Inch
• RPM: 3450
• Frame: 56J
• Application: Hayward Northstar™ Pumps
• Type: Full-Rated, C
• Overall Length: 13.85 Inch
• Brand: Regal Beloit
• Phase: 1-Phase
• Bearing Type: Ball
• Ambient Temperature: 50 deg C
• Finish Color: Black
• Frequency Rating: 60 Hz
• Full Load Amps: 11.0-10.2/20.4 A
• HP: 1.5
• Item: Replacement Pool and Spa Pump Motor
• Mounting Type: C-Face
• Standards Approvals: UL Approved
• Sub Brand: Century®
• Voltage Rating: 115/208-230 V
• Enclosure Design: Open Dripproof
• Flange Material: Aluminum
• Thrust Horsepower: 2.4
• Shaft Design: Threaded
• Insulation Class: B
• Shaft Length: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Shaft Diameter: 5/8 Inch
• Duty Cycle: Continuous
• Motor Thermal Protection: Auto
• Efficiency Group: High
• Motor Design: Capacitor Start
• Service Factor: 1.60
• Motor Shaft Rotation: CCWPE
