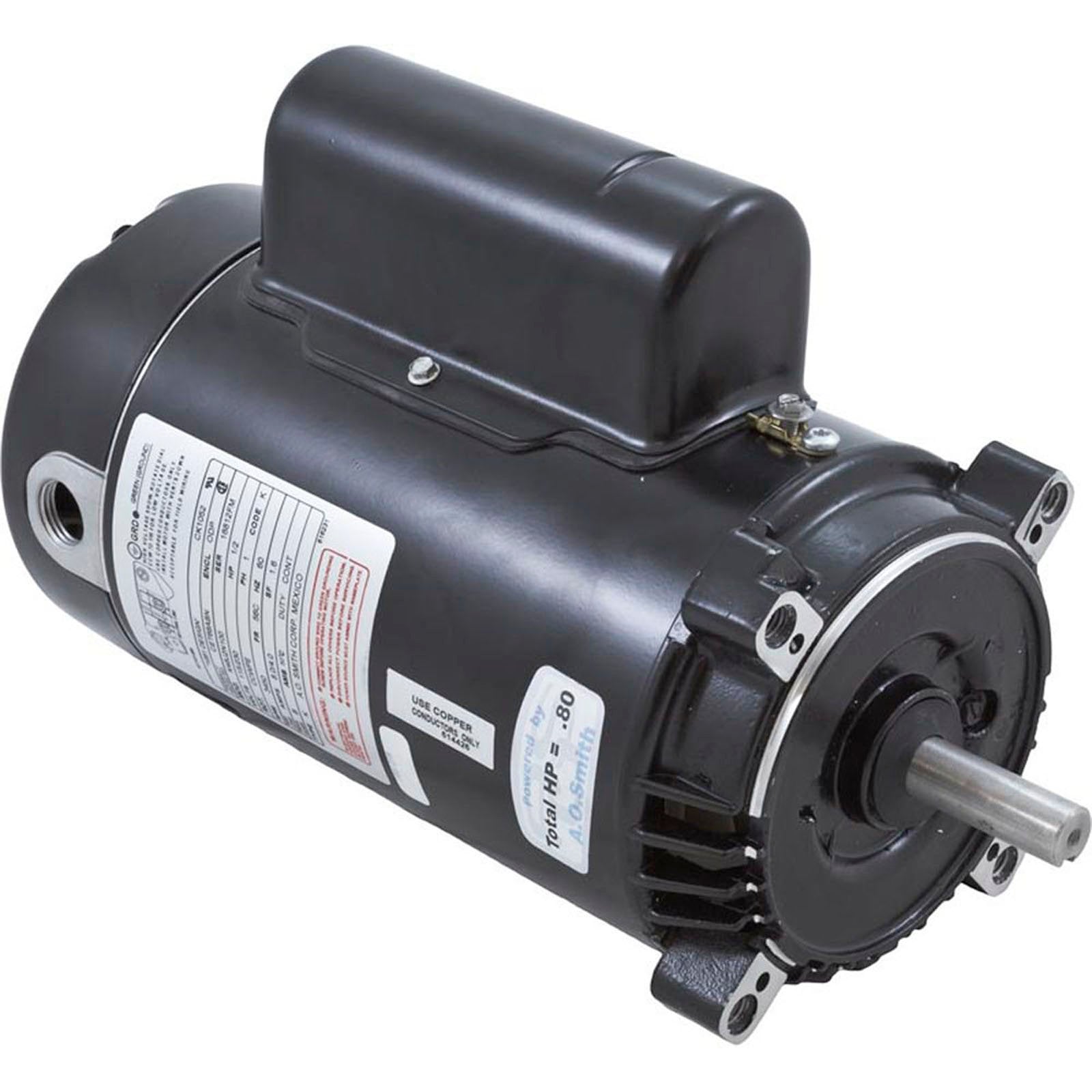

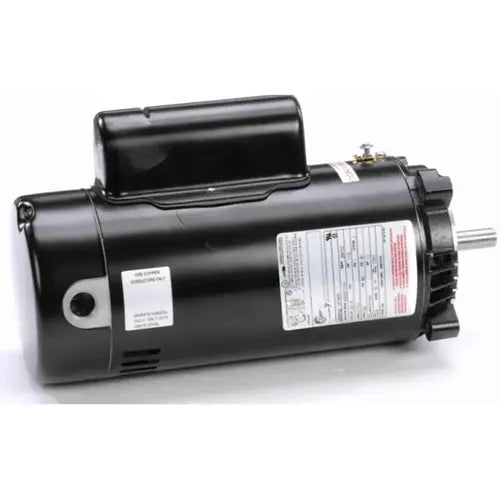

Regal Beloit SK1152 Pump Motor 1.5 HP

Product Description

The REGAL BELOIT SK1152 is a 1.5 HP keyed shaft pump motor. This motor is designed to meet the demands of pool and spa applications. It features a 56C frame, operates at 3450 RPM, and is compatible with 115/230V power sources. The motor has open dripproof enclosure and sealed ball bearings.

• 56C Frame Keyed Shaft
• Service Factor: 1.3
• Open Drip Proof Enclosure

Product Highlights

Full-rated two-compartment pool filter motor with keyed shaft and C-face mounting.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SK1152

Technical Specifications

• Product Category: Pump Motors
• Poolweb Item #: SK1152
• Cross Reference #: A600FLL,AE600FHL
• Manufacturer: Century Motors
• Voltage: 115/230 V
• Frame: 56C
• Service Factor: 1.3
• RPM: 3450
• Phase: 1-Phase
• Bearing Type: Sealed Ball
• AmbientTemperature: 50 deg C
• FrequencyRating: 60 Hz
• FullLoadAmps: 19.4/9.7 A
• HP: 1.5
• Item: Two-Compartment Pool Filter Motor
• MountingType: C-Face
• StandardsApprovals: UL 1081 Approved, UL Recognized (E20522), CSA Certified (LR43341)
• SubBrand: Century®
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ThrustHorsepower: 1.95
• ShaftDesign: Keyed
• InsulationClass: B
• ShaftLength: 2-1/16 Inch
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: High
• NumberofSpeed: 1-Speed
• MotorDesign: Capacitor Start/Run
• MotorShaftRotation: CCWPE
• Shaft Material: 303 Stainless Steel
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Frame Size: 56C
• Motor Capacitor Type: Start,Run
• Motor Shaft Rotation: Counterclockwise Pulley End
• Motor Thermal Protection: Automatic Reset
• Nameplate RPM: 3450
• Shaft: Keyed
• Shaft Diameter: 5/8 in
• Shaft Length: 2-1/16 in
• Standards: CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022)
• Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
• Ambient Temperature: 50 Degrees C
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Efficiency Group: Energy Efficient
• Motor Mounting Type: Face
• Hz: 60
