Regal Beloit SK1102 Motor, Cent, 1.0hp, 115v/230v, 1spd, SF 1.40, 56C fr, C-Face Key

Product Description

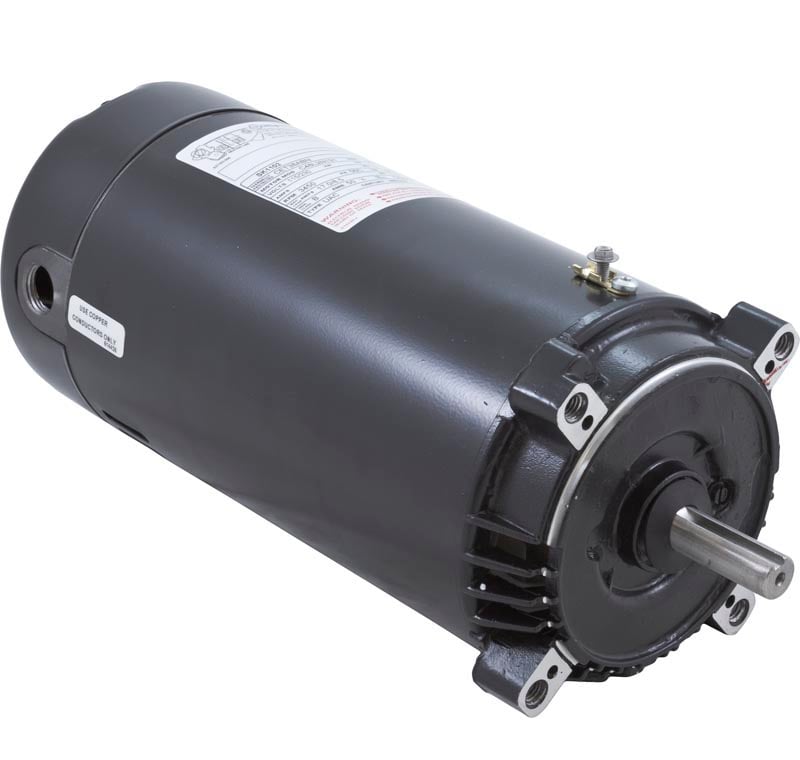

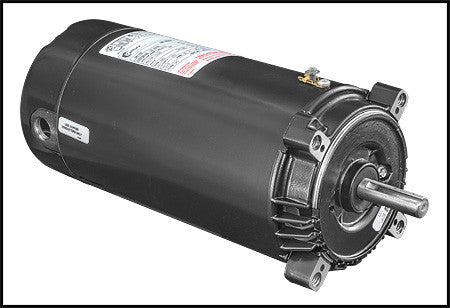

The REGAL BELOIT SK1102 is a motor designed for pool filter applications. This 1.0 HP motor operates at 115/230V and 3450 RPM. It features a 56C frame, open dripproof enclosure, and a keyed shaft. Suitable for residential use, this motor is thermally protected and designed for continuous duty.

• 1 HP, 3450 RPM
• 115/230V, 60 Hz
• Open Dripproof Enclosure

Product Highlights

This motor is ideal for pool and spa pump applications, offering reliable performance with its capacitor-start design and thermal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SK1102

Technical Specifications

• CAT: SK1102
• MODEL: C48L2N131
• TYPE: UAC
• Frame: 56C
• HP: 1
• Service Factor: 1.5
• Phase: 1
• Frequency Rating: 60 Hz
• RPM: 3450
• Motor Shaft Rotation: Counterclockwise Pulley End
• Input Voltage: 115/230 V
• Full Load Amps: 17.0/8.5 A
• TIME: CONT
• Enclosure Design: Open Dripproof
• CODE: L
• Insulation Class: B
• Ambient Temperature: 50 deg C
• Diameter: 6-1/2 Inch
• OverallLength: 12.13 Inch
• Bearing Type: Sealed Ball
• Mounting Type: C-Face
• ShaftDesign: Keyed
• ShaftLength: 2-1/16 Inch
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorDesign: Capacitor Start
• Application: Pool
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Frame Size: 56C
• Motor Capacitor Type: Start
• Motor Thermal Protection: Automatic Reset
• Commercial, Residential, or Professional: Residential
• OEM: Regal Beloit America, Inc. (Century Electric Motors)
• Hz: 60
• Ins. Class: B
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Efficiency Group: Standard Efficient
• Motor Flange Material: Aluminum
• Motor Mounting Type: Face
• Nameplate RPM: 3450
• RPM Range: 3001-3600
• Shaft: Keyed
• Shaft Material: 303 Stainless Steel
• Voltage: 115/230
• Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
