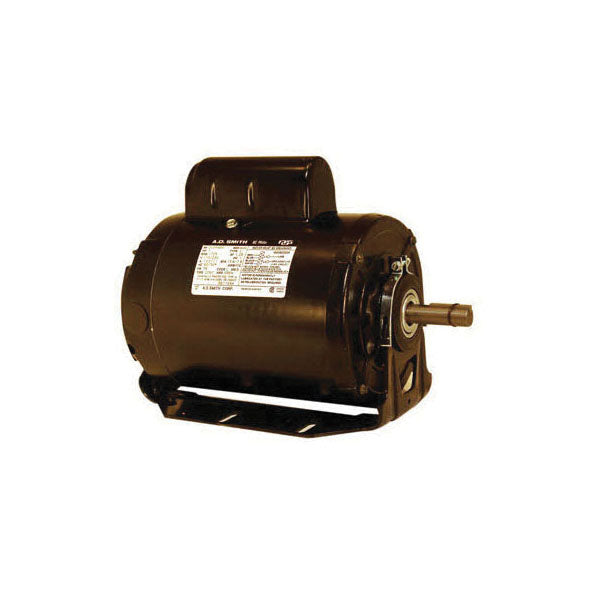

Regal Beloit RS1051A AC Motor 1/2 hp 115/230 VAC 60 Hz 1 ph NEMA 56

Product Description

The Regal Beloit RS1051A AC Motor offers reliable performance for various applications. This motor features a half horsepower capacity and operates on both one hundred fifteen and two hundred thirty volts at sixty hertz. Its design includes a resilient base mount and an open enclosure, making it suitable for tasks such as powering pumps and conveyors.

• High start torque for demanding tasks
• Open construction for easy maintenance
• CSA certified for safety and reliability

Product Highlights

This motor is efficient and versatile, ideal for commercial and industrial use.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: RS1051A

Technical Specifications

• Amperage Rating: 8.6/4.3 A
• Application: Pumps, Conveyors and Milking Machines
• Application Type: Compressor Motors, Fan & Blower Motors
• Bearing Type: Sleeve
• Dimensions: 6.5 inches Diameter x 10.3 inches Length
• Enclosure Type: Open
• Frame: NEMA 56
• Frequency Rating: 60 Hz
• Horsepower: 1/2 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified
• Mounting Style: Resilient Base
• Number of Phases: 1 ph
• Package Weight: 17.0 lb
• Rotation: Reversible
• Service Factor: 1
• Special Features: Capacitor Start Motors
• Speed: 1725 rpm
• Temperature Rating: 40 deg C
• Voltage Rating: 115/230 VAC
